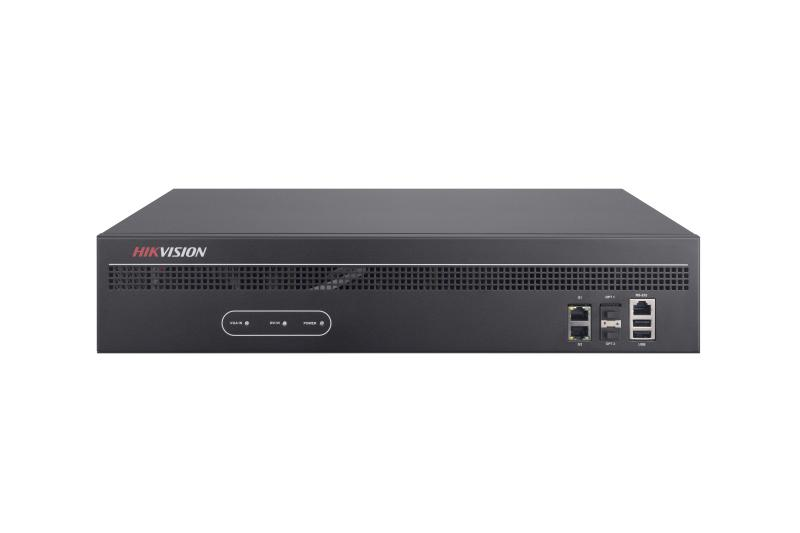

DS-6916UDI

EOL

4K Decoder

  • Provides HDMI (adaptable to DVI-D) and BNC output interfaces.
  • Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for odd interface).
  • Up to 8-ch decoding at 24 MP resolution.
  • H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
  • PS, RTP, TS, ES, HIK encapsulation formats.
  • Three encoding levels: baseline, main, and high-profile.
  • G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
  • Two decoding modes: active decoding and passive decoding.
  • Supports two-way audio via client software.
  • Remote video files' decoding output.
  • Provides VGA and DVI input interfaces.
  • Supports window opening, window roaming and window split.
  • Supports multi-screen control with PC installed with RSC server.
  • Gets stream and decodes via URL and RTSP from encoding devices.
  • Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
  • Configurable LED width and height parameters when the LED is connected.
  • Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
  • Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
  • You can enable or disable the smart information for the thermal network camera.
  • Port aggregation technology (Ethernet Channel).
  • Accessible by 2.4 MP DeepinView camera.
  • Two-way audio.
  • You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-6916UDI
DS-6916UDI
EOL
Data Sheet

Specification

  • Interface
  • Network InterfaceRJ45 interface × 2, 10/100/1000 Mbps adaptive Optic interface × 2, 100 base-FX/1000 base-X An RJ45 interface and an optic interface form a combo.
  • Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
  • Audio Output16 (DB15 × 2)
  • Two-way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
  • Alarm In8
  • Two-way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
  • Alarm Out8
  • General
  • Power Supply100 to 240 VAC
  • Power Consumption≤ 108 W
  • Dimensions(W × D × H)440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Weight≤ 6.4 kg (14.11 lb)
  • Decoding
  • Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
  • Decoding Channel128-ch
  • Decoding Capability24MP@30fps: 8-ch, 12MP@20fps:16-ch, 8MP@30fps: 32-ch, 5MP@30fps: 48-ch, 3MP@30fps: 80-ch, 1080p@30fps/3 Mbps: 128-ch
  • Split Screen1/4/6/8/9/12/16/25/36
  • Input and Output
  • InputVGA, DVI-I
  • Input ResolutionVGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
  • OutputHDMI × 16, BNC × 8 (DB15 × 2)
  • Output ResolutionHDMI: 4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz BNC: PAL: 704 × 576, NTSC: 704 × 480
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Interface
Network Interface
RJ45 interface × 2, 10/100/1000 Mbps adaptive Optic interface × 2, 100 base-FX/1000 base-X An RJ45 interface and an optic interface form a combo.
Serial Interface
RS-232 (RJ45) × 1, RS-485 × 1
Audio Output
16 (DB15 × 2)
Two-way Audio Out
1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm In
8
Two-way Audio In
1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm Out
8
General
Power Supply
100 to 240 VAC
Power Consumption
≤ 108 W
Dimensions(W × D × H)
440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Weight
≤ 6.4 kg (14.11 lb)
Decoding
Decoding Resolution
Up to 24MP (only for 3 encoder tracks mode)
Decoding Channel
128-ch
Decoding Capability
24MP@30fps: 8-ch, 12MP@20fps:16-ch, 8MP@30fps: 32-ch, 5MP@30fps: 48-ch, 3MP@30fps: 80-ch, 1080p@30fps/3 Mbps: 128-ch
Split Screen
1/4/6/8/9/12/16/25/36
Input and Output
Input
VGA, DVI-I
Input Resolution
VGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
Output
HDMI × 16, BNC × 8 (DB15 × 2)
Output Resolution
HDMI: 4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz BNC: PAL: 704 × 576, NTSC: 704 × 480
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Interface
  • Network InterfaceRJ45 interface × 2, 10/100/1000 Mbps adaptive Optic interface × 2, 100 base-FX/1000 base-X An RJ45 interface and an optic interface form a combo.
  • Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
  • Audio Output16 (DB15 × 2)
  • Two-way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
  • Alarm In8
  • Two-way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
  • Alarm Out8
General
  • Power Supply100 to 240 VAC
  • Power Consumption≤ 108 W
  • Dimensions(W × D × H)440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Weight≤ 6.4 kg (14.11 lb)
Decoding
  • Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
  • Decoding Channel128-ch
  • Decoding Capability24MP@30fps: 8-ch, 12MP@20fps:16-ch, 8MP@30fps: 32-ch, 5MP@30fps: 48-ch, 3MP@30fps: 80-ch, 1080p@30fps/3 Mbps: 128-ch
  • Split Screen1/4/6/8/9/12/16/25/36
Input and Output
  • InputVGA, DVI-I
  • Input ResolutionVGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
  • OutputHDMI × 16, BNC × 8 (DB15 × 2)
  • Output ResolutionHDMI: 4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz BNC: PAL: 704 × 576, NTSC: 704 × 480
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
