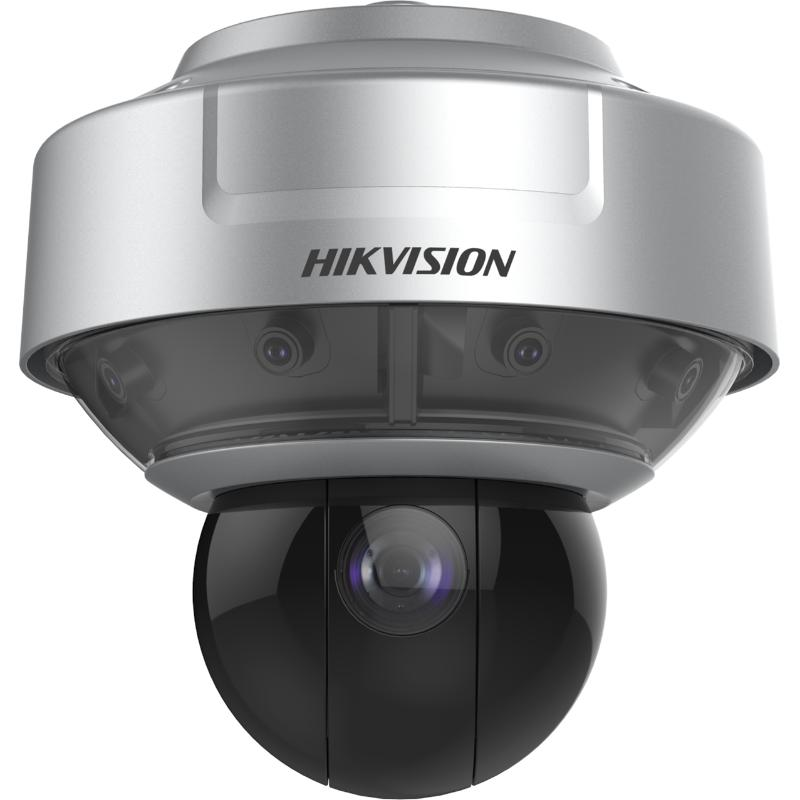

32MP 360° Panoramic & PTZ Camera

Eight 1/1.8" 4 MP progressive scan CMOS for panoramic channels and 1/1.8" 4MP Progressive Scan CMOS for the PTZ channel
High quality imaging with 32 MP resolution
Two panoramic channels offer combined 360° horizontal field of view (180° for each) and 85° vertical field view
Excellent low-light performance
Supports people density detection in panoramic channel
40× optical zoom and 16× digital zoom of the PTZ channel provide close up views over expansive areas
Max. panning range of 360° endless and max. tilting range of -15° to 90° for the PTZ channel
Expansive night view with up to 250 m IR distance

View Less

Data Sheet

Available models:

DS-2DP3236ZIXS-D/440/T2(2.8mm)

DS-2DP3236ZIXS-D/440/T2

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination[Panoramic channel] color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0.0001Lux @(F1.6, AGC ON), 0 Lux with IR; [PTZ channel] color: 0.0005Lux @ (F1.2, AGC ON), B/W: 0.0001Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed1 to 1/30000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Max. Resolution5520 × 2400

Lens
FocusAuto, semi-auto, manual
Focal Length[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240mm
Zoom Speed[PTZ channel] approx. 4.4 s
FOV[Panoramic channel] Horizontal field of view: 180° Vertical field of view: 85° [PTZ channel] Horizontal field of view: 56.6° to 1.8° (Wide-Tele) Vertical field of view: 33.7° to 1.0° (Wide-Tele) Diagonal field of view: 63.4° to 2.0° (Wide-Tele)
ApertureF1.2

Illuminator
Supplement Light RangeIR Distance: up to 250 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)0-360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off MemoryYes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream[Panoramic channel] 50Hz: 25fps (5520 × 2400 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2) 60Hz: 30fps (5520 × 2400 × 2, 3840 × 1680×2, 2784 × 1200 × 2) [PTZ channel] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Panoramic channel] 50Hz: 25fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) 60Hz: 30fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) [PTZ channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Panoramic channel] 50Hz: 25fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2), 60Hz: 30fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) [PTZ channel] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz

Network
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
Smooth StreamingYes
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE8+

Day/Night SwitchDay, night, auto, scheduled-switch
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB WDR
DefogOptical defog
Image StabilizationEIS
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy Mask[Panoramic channel] 8 programmable polygon privacy masks, mask color configurable [PTZ channel] 24 programmable polygon privacy masks, mask color configurable
SNR≥ 55 dB

Interface
Ethernet InterfaceRJ45, Self-adaptive 10M/100M/1000M Ethernet port
Fiber OpticalFC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm7 inputs, 2 outputs
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event
Smart Event[Panoramic Channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection [PTZ Channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart TrackingManual tracking, auto-tracking, panorama tracking
Alarm LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP

Deep Learning Function
Face Capture[PTZ Channel] Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
People Density[Panoramic Channel] Support detecting the level of people density in the configured area

General
Power36 VDC, max. 150 W
Operating ConditionTemperature: -40°C to 60°C (-40°F to 140°F), Humidity: ≤ 95%
DemistYes
MaterialADC12
DimensionΦ391.8 mm × 400.5 mm (Φ 15.43" × 15.77")
WeightApprox. 18 kg (39.68 lb)

Camera

Image Sensor

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS

Min. Illumination

[Panoramic channel] color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0.0001Lux @(F1.6, AGC ON), 0 Lux with IR; [PTZ channel] color: 0.0005Lux @ (F1.2, AGC ON), B/W: 0.0001Lux @(F1.2, AGC ON), 0 Lux with IR

Shutter Speed

1 to 1/30000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

[PTZ channel] 40x optical, 16x digital

Max. Resolution

5520 × 2400

Lens

Focus

Auto, semi-auto, manual

Focal Length

[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240mm

Zoom Speed

[PTZ channel] approx. 4.4 s

FOV

[Panoramic channel] Horizontal field of view: 180° Vertical field of view: 85° [PTZ channel] Horizontal field of view: 56.6° to 1.8° (Wide-Tele) Vertical field of view: 33.7° to 1.0° (Wide-Tele) Diagonal field of view: 63.4° to 2.0° (Wide-Tele)

Aperture

F1.2

Illuminator

Supplement Light Range

IR Distance: up to 250 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

0-360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Proportional Pan

[Panoramic channel]: no; [PTZ channel]: yes

Presets

300

Patrol Scan

8 patrols

Pattern Scan

4 pattern scans

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Panoramic channel] 50Hz: 25fps (5520 × 2400 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2) 60Hz: 30fps (5520 × 2400 × 2, 3840 × 1680×2, 2784 × 1200 × 2) [PTZ channel] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Panoramic channel] 50Hz: 25fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) 60Hz: 30fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) [PTZ channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Panoramic channel] 50Hz: 25fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2), 60Hz: 30fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2) [PTZ channel] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Audio Sampling Rate

MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz

Network

Network Storage

NAS (NFS, SMB/ CIFS)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

Open-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users, 3 user levels: administrator, operator, and user

Smooth Streaming

Yes

Security

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

IE8+


Day/Night Switch

Day, night, auto, scheduled-switch

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB WDR

Defog

Optical defog

Image Stabilization

EIS

Regional Exposure

Yes

Regional Focus

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Panoramic channel] 8 programmable polygon privacy masks, mask color configurable [PTZ channel] 24 programmable polygon privacy masks, mask color configurable

SNR

≥ 55 dB

Interface

Ethernet Interface

RJ45, Self-adaptive 10M/100M/1000M Ethernet port

Fiber Optical

FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm

7 inputs, 2 outputs

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Smart Event

[Panoramic Channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection [PTZ Channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Smart Tracking

Manual tracking, auto-tracking, panorama tracking

Alarm Linkage

Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP

Deep Learning Function

Face Capture

[PTZ Channel] Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

People Density

[Panoramic Channel] Support detecting the level of people density in the configured area

General

Power

36 VDC, max. 150 W

Operating Condition

Temperature: -40°C to 60°C (-40°F to 140°F), Humidity: ≤ 95%

Demist

Yes

Material

ADC12

Dimension

Φ391.8 mm × 400.5 mm (Φ 15.43" × 15.77")

Weight

Approx. 18 kg (39.68 lb)
