DS-2DE7A245IX-AE/S1

EOL

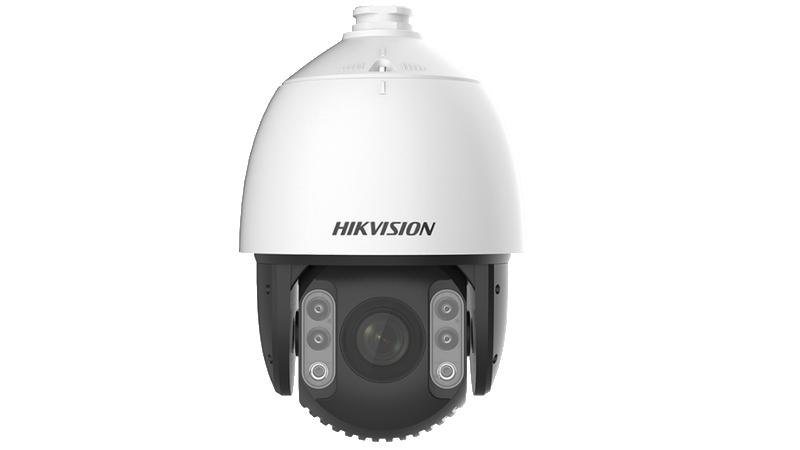

7-inch 2 MP 45X Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 2 MP resolution
  • 45x optical zoom provides close up views over expansive areas
  • Intelligent functions based on deep learning
  • Save time by tracking important targets automatically

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2DE7A245IX-AE/S1
DS-2DE7A245IX-AE/S1
EOL
Data Sheet

Specification

  • Lens
  • FOVHorizontal field of view: 65.7° to 1.9° (Wide-Tele) Vertical field of view: 39.4° to 1.1° (Wide-Tele) Diagonal field of view: 73.1° to 2.3° (Wide-Tele)
  • Zoom SpeedApprox. 3.7s (Optical Lens, Wide-Tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.6 to F4.95
  • Focal Length4 mm to 180 mm, 45× optical zoom
  • Image
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • SVCYes
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Central, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Alarm2-ch alarm input and 1-ch alarm output
  • Audio1-ch audio input and 1-ch audio output
  • Interface
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • Smart Feature
  • Smart EventFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection, Unattended Baggage Detection, Object Removal Detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support eight fixed areas.
  • Camera Module
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON) B/W: 0.0005Lux @(F1.6, AGC ON) 0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • BLCYes
  • HLCYes
  • EISYes
  • DefogYes
  • Supplement Light
  • IR Distance200 m
  • Smart IRYes
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 160°/s, Preset speed: 240°/s
  • Movement Range (Tilt)From -15° to 90° (Auto-Flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 120°/s Preset Speed: 200°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • General
  • MaterialAluminum alloy
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • WeightApprox. 4.5 kg (9.92 lb)
  • Protection LevelIP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power24 VAC, 3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A Max. 40 W, includes max. 16 W for IR and max. 10 W for heater)
  • Working Environment-30°C to 65°C (-22°F to 149°F)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
