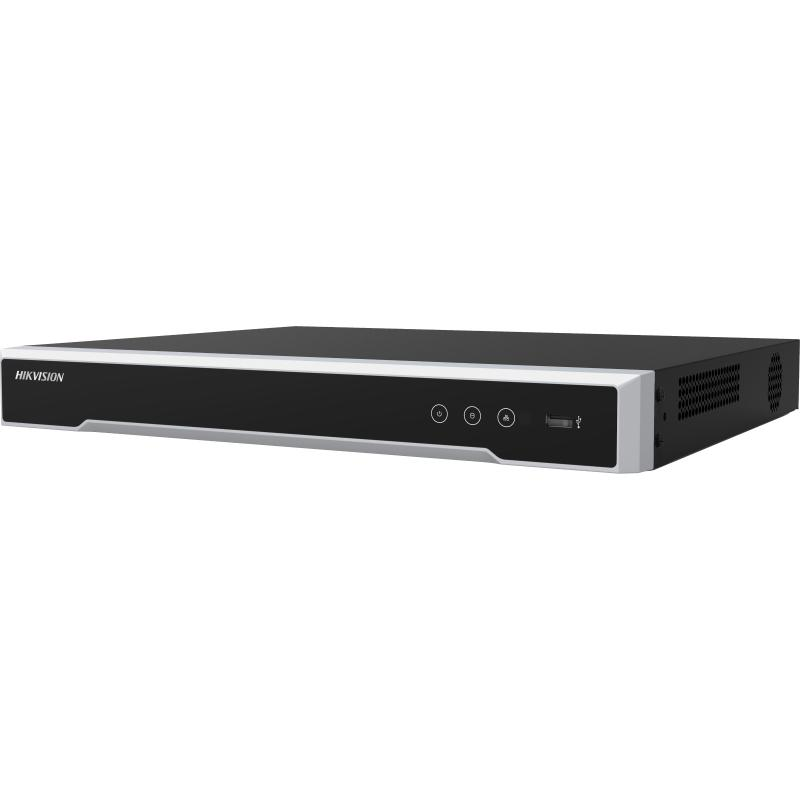

DS-7616NI-I2

EOL

16-ch 1U 4K NVR

  • Up to 16 channel IP cameras can be connected
  • Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7616NI-I2
DS-7616NI-I2
EOL
Data Sheet

Specification

  • Video and Audio
  • IP Video Input16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Synchronous Playback16-ch
  • Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight≤ 1 kg (2.2 lb)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format
H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous Playback
16-ch
Decoding Capability
1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 10 TB capacity for each HDD
Alarm In/Out
4/1
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply
12 VDC, 3.33 A
Consumption
≤15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight
≤ 1 kg (2.2 lb)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Synchronous Playback16-ch
  • Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight≤ 1 kg (2.2 lb)
Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.61.030_240123
Applied to:
DS-7616NI-I2
