DS-2CV2026G0-IDW

Commercial Display

Global

Global - English

Asia

Europe

Oceania

ANZ - English

Latin America

North America

Middle East and Africa

EOL

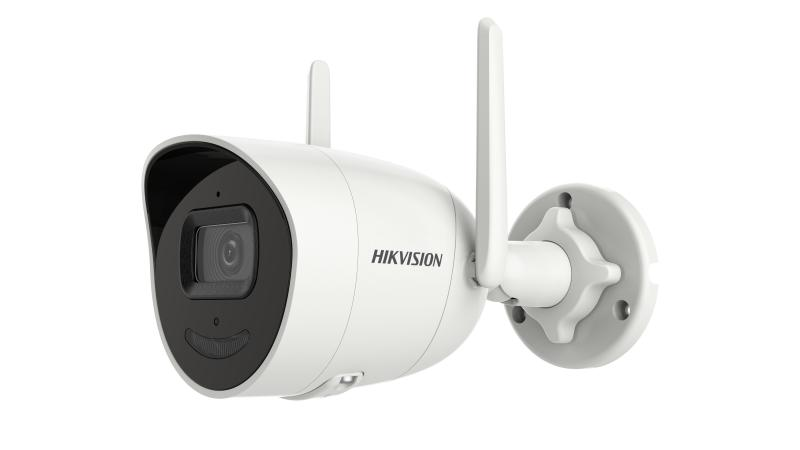

2 MP Outdoor AcuSense Fixed Bullet Network Camera

1/2.8" Progressive Scan 2MP CMOS
Human and Vehicle Classification
Strobe Light and Audible Warning
Built-in dual antenna 2.4G Wi-Fi, up to 120m range in open area
Built-in microphone and speaker, support two-way audio
H.265,H.264
EXIR, 30m IR range
IP66 Dust and water proof
Built-in micro SD/SDHC/SDXC card slot, up to 256 GB

View Less

Available models:

DS-2CV2026G0-IDW(2.8mm)(D)

DS-2CV2026G0-IDW(4mm)(D)

DS-2CV2026G0-IDW

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightICR Cut
Angle AdjustmentPan: 0° to 360°, tilt: 0° to90°, rotate: 0° to 360°

Lens
Lens Type & FOV2.8 mm, horizontal FOV: 101°, vertical FOV: 54°, diagonal FOV: 119°; 4 mm, horizontal FOV: 82°, vertical FOV: 44°, diagonal FOV: 97°
ApertureF1.6
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850 nm
Smart Supplement LightYes
Visual AlarmYes

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Video Compression Main stream/Sub-stream: H.265/H.264
Video Bit Rate32 Kbps to 8Mbps
H.264 TypeBaseLine Profile/Main Profile
H.265 TypeMain Profile
Stream TypeMain stream and sub-stream
Region of Interest (ROI)1 fixed region for main stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users 3 levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network StorageNAS (NFS, SMB/CIFS)
ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Wi-Fi
Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wireless RangeUp to 120 m (The performance varies based on actual environment.)

Day/Night SwitchDay/Night/Auto/Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection

Intelligent (Traditional Algorithm)
Basic Event Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General
Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audiable warning
Online UpgradeYes
Firmware VersionV5.5.132
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter
Software ResetYes
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply12 VDC ± 25%, reverse polarity protection
Power Consumption and Current12 VDC, 0.67 A, max. 8.0 W
Power InterfaceØ5.5 mm coaxial power plug
MaterialFront cover: metal, back cover: plastic
Camera Dimension175.6× 73.0 × 89.1mm (6.91" × 2.87" × 3.51")
Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
Camera WeightApprox. 450 g (0.99 lb.)
With Package WeightApprox. 770 g (1.70 lb.)

Approval
EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RFFCC ID (FCC Part 15.247 (BT or 2.4G)); IC ID (RSS-247 (BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006
ProtectionIngress protection: IP66 (IEC 60529-2013)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

ICR Cut

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to90°, rotate: 0° to 360°

Lens

Lens Type & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 54°, diagonal FOV: 119°; 4 mm, horizontal FOV: 82°, vertical FOV: 44°, diagonal FOV: 97°

Aperture

F1.6

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Smart Supplement Light

Yes

Visual Alarm

Yes

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)

Video Compression

Main stream/Sub-stream: H.265/H.264

Video Bit Rate

32 Kbps to 8Mbps

H.264 Type

BaseLine Profile/Main Profile

H.265 Type

Main Profile

Stream Type

Main stream and sub-stream

Region of Interest (ROI)

1 fixed region for main stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network

Simultaneous Live View

Up to 6 channels

API

ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users 3 levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS)

Client

Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.

Web Browser

Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Wi-Fi

Encryption Mode

64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK

Wi-Fi Protocol

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz - 2.4835 GHz

Channel Bandwidth

20/40 MHz

Modulation

802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Wireless Range

Up to 120 m (The performance varies based on actual environment.)


Day/Night Switch

Day/Night/Auto/Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Smart Event

Intrusion detection, line crossing detection, region entrance detection, region exiting detection

Intelligent (Traditional Algorithm)

Basic Event

Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General

Linkage Method

Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audiable warning

Online Upgrade

Yes

Firmware Version

V5.5.132

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F)

Power Supply

12 VDC ± 25%, reverse polarity protection

Power Consumption and Current

12 VDC, 0.67 A, max. 8.0 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Front cover: metal, back cover: plastic

Camera Dimension

175.6× 73.0 × 89.1mm (6.91" × 2.87" × 3.51")

Package Dimension

260 × 125 × 125 mm (10.24" × 4.92" × 4.92")

Camera Weight

Approx. 450 g (0.99 lb.)

With Package Weight

Approx. 770 g (1.70 lb.)

Approval

EMC

FCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

FCC ID (FCC Part 15.247 (BT or 2.4G)); IC ID (RSS-247 (BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006

Protection

Ingress protection: IP66 (IEC 60529-2013)
