DS-2CV1021G0-IDW1

EOL

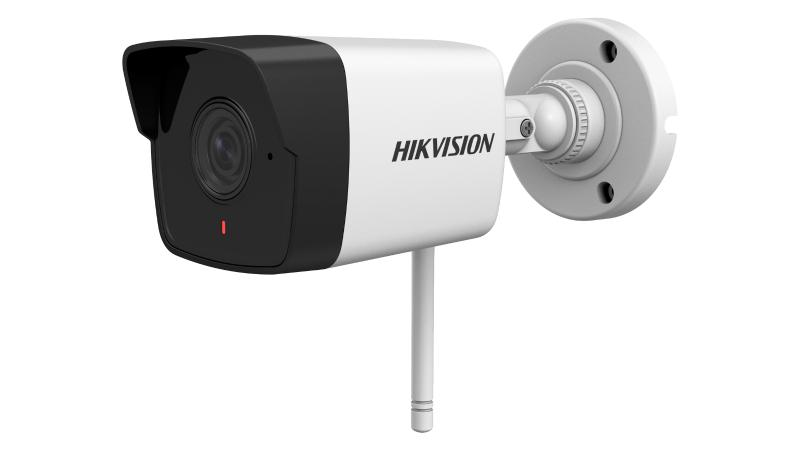

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to DWDR technology
  • Up to 128 GB SD card slot for storage
  • Wi-Fi connection with Hik-Connect directly is not possible
  • Water and dust resistant (IP66)

View Less
View more
Sales Inquiry

Available models:

DS-2CV1021G0-IDW1/NF(2.8mm)T
DS-2CV1021G0-IDW1(2.8mm)(D)
DS-2CV1021G0-IDW1(4mm)(D)
DS-2CV1021G0-IDW1
EOL

Specification

  • Smart Features
  • Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
  • WDRDWDR
  • Day & NightIR Cut Filter
  • Lens
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
  • Lens MountM12
  • Focal length2.8/4 mm
  • Network
  • Network StorageSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Alarm TriggerMotion detection, illegal login
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • APIISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web BrowserPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
  • Firmware VersionV5.5.101
  • Video
  • Max. Resolution1920 × 1080
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Interface
  • Reset ButtonYes
  • On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 Built-in mic, mono sound
  • Image
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
  • Image EnhancementBLC, HLC, 3D DNR
  • Day/Night SwitchDay, night, auto, scheduled
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • General
  • Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
  • Power supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W
  • MaterialFront cover: metal, back cover: plastic
  • DimensionsCamera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7" × 2.6") With package: 264 mm × 129 mm × 120 mm (10.4" × 5.1" × 4.7")
  • WeightCamera: approx. 270 g (0.6 lb.) With package: approx. 470 g (1 lb.)
  • Approval
  • Protection Ingress protection: IP66 (IEC 60529-2013)
  • Compression Standard
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile
  • H.265 TypeBaseline Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
  • IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Wi-Fi (-W)
  • Wireless StandardsIEEE 802.11b/g/n
  • Frequency Range2.4 GHz to 2.4835 GHz
  • Transfer Rates11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Channel Bandwidth20 MHz/40 MHz
  • Wireless RangeUp to 80 m (The performance varies based on actual environment.)
  • Protocols802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Smart Features
Alarm Trigger
Motion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Angle Adjustment
Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
WDR
DWDR
Day & Night
IR Cut Filter
Lens
Aperture
F2.0
Focus
Fixed
FOV
2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
Lens Mount
M12
Focal length
2.8/4 mm
Network
Network Storage
Support micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Alarm Trigger
Motion detection, illegal login
Protocols
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
API
ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users 3 levels: Administrator, Operator and User
Client
Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
General Function
Anti-flicker, heartbeat, mirror, password protection, password reset via e-mail
Firmware Version
V5.5.101
Video
Max. Resolution
1920 × 1080
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Interface
Reset Button
Yes
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 Built-in mic, mono sound
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Image Enhancement
BLC, HLC, 3D DNR
Day/Night Switch
Day, night, auto, scheduled
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
General
Operating Conditions
-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
Power supply
12 VDC ± 25%, Ø5.5 mm coaxial power plug
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
Material
Front cover: metal, back cover: plastic
Dimensions
Camera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7" × 2.6") With package: 264 mm × 129 mm × 120 mm (10.4" × 5.1" × 4.7")
Weight
Camera: approx. 270 g (0.6 lb.) With package: approx. 470 g (1 lb.)
Approval
Protection
Ingress protection: IP66 (IEC 60529-2013)
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264
H.264+
Main stream supports
H.265+
Main stream supports
H.264 Type
Baseline Profile/Main Profile
H.265 Type
Baseline Profile
Video Bit Rate
32 Kbps to 8 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
IR
IR Range
Up to 30 m
Wavelength
850 nm
Wi-Fi (-W)
Wireless Standards
IEEE 802.11b/g/n
Frequency Range
2.4 GHz to 2.4835 GHz
Transfer Rates
11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Channel Bandwidth
20 MHz/40 MHz
Wireless Range
Up to 80 m (The performance varies based on actual environment.)
Protocols
802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Smart Features
  • Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
  • WDRDWDR
  • Day & NightIR Cut Filter
Lens
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
  • Lens MountM12
  • Focal length2.8/4 mm
Network
  • Network StorageSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Alarm TriggerMotion detection, illegal login
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • APIISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web BrowserPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
  • Firmware VersionV5.5.101
Video
  • Max. Resolution1920 × 1080
Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
Interface
  • Reset ButtonYes
  • On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 Built-in mic, mono sound
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
  • Image EnhancementBLC, HLC, 3D DNR
  • Day/Night SwitchDay, night, auto, scheduled
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
General
  • Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
  • Power supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W
  • MaterialFront cover: metal, back cover: plastic
  • DimensionsCamera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7" × 2.6") With package: 264 mm × 129 mm × 120 mm (10.4" × 5.1" × 4.7")
  • WeightCamera: approx. 270 g (0.6 lb.) With package: approx. 470 g (1 lb.)
Approval
  • Protection Ingress protection: IP66 (IEC 60529-2013)
Compression Standard
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile
  • H.265 TypeBaseline Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
Wi-Fi (-W)
  • Wireless StandardsIEEE 802.11b/g/n
  • Frequency Range2.4 GHz to 2.4835 GHz
  • Transfer Rates11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Channel Bandwidth20 MHz/40 MHz
  • Wireless RangeUp to 80 m (The performance varies based on actual environment.)
  • Protocols802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.800_210816
Applied to:
DS-2CV1021G0-IDW1/NF(2.8mm)T
Firmware_V5.5.821_231108
IPC E6 5.5.821 Release Note
Applied to:
DS-2CV1021G0-IDW1(2.8mm)(D)
DS-2CV1021G0-IDW1(4mm)(D)
