DS-2CD3156G2-IS(U)

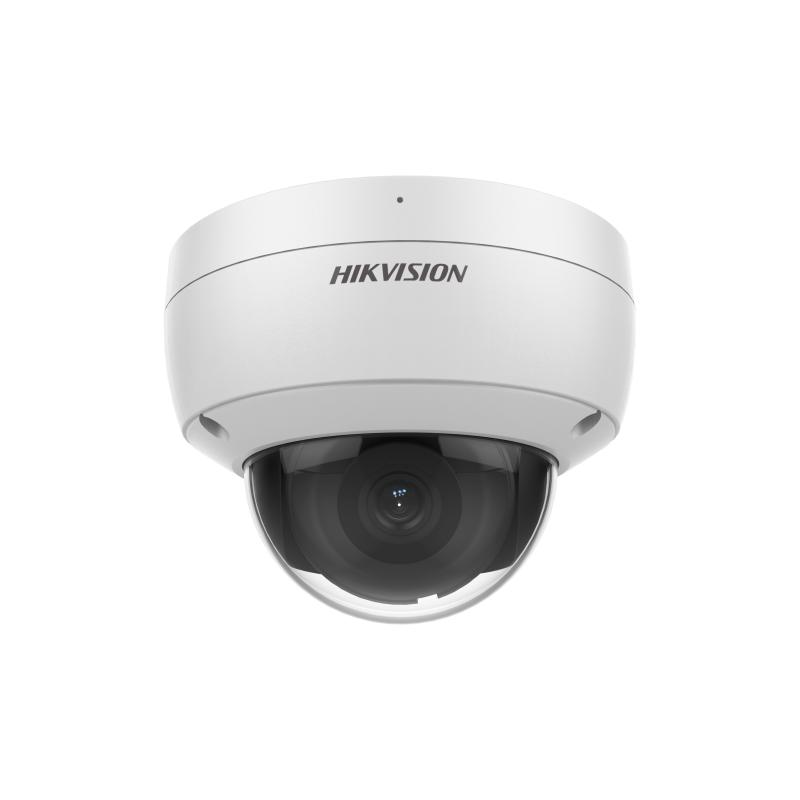

5 MP AcuSense Fixed Dome Network Camera

  • High quality imaging with 5 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Advanced streaming technology that enables smooth live view and data self-correcting in poor network
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less
View more
DS-2CD3156G2-ISEOL
DS-2CD3156G2-ISU(C)EOL
DS-2CD3156G2-IS(C)
Data Sheet
Sales Inquiry

Available models:

DS-2CD3156G2-IS(2.8mm)
DS-2CD3156G2-IS(4mm)

Available models:

DS-2CD3156G2-ISU(2.8mm)(C)
DS-2CD3156G2-ISU(4mm)(C)
DS-2CD3156G2-ISU(6mm)(C)

Available models:

DS-2CD3156G2-IS(2.8mm)(C)
DS-2CD3156G2-IS(6mm)(C)
DS-2CD3156G2-IS(4mm)(C)
DS-2CD3156G2-IS(U)
Data Sheet

Specification

  • Camera
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Max. Resolution 2592 × 1944
  • Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131° 4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F1.4
  • DORI
  • DORI 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 40 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
  • Target Cropping Yes
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host Up to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE 10+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in Microphone -U: Yes
  • Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • Reset Key Yes
  • Power Output 12 VDC, max. 100 mA (supported by all power supply types)
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection
  • Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
  • Deep Learning Function
  • Face Capture Yes
  • Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Power 12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
  • Dimension Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
  • Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight Approx. 580 g (1.3 lb.)
  • With Package Weight Approx. 820 g (1.8 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
  • Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
2592 × 1944
Min. Illumination
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131° 4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.4
DORI
DORI
2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone
-U: Yes
Audio
1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm
1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key
Yes
Power Output
12 VDC, max. 100 mA (supported by all power supply types)
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Unattended baggage detection, object removal detection, scene change detection, audio exception detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Deep Learning Function
Face Capture
Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Power
12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
Dimension
Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight
Approx. 580 g (1.3 lb.)
With Package Weight
Approx. 820 g (1.8 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Web Client Language
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.820_231108
Network Camera-V5.5.820 Release Note-G3
Applied to:
DS-2CD3156G2-IS(2.8mm)
DS-2CD3156G2-IS(4mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240924
Network Camera-V5.7.18 240924 Release Note-G5
Applied to:
DS-2CD3156G2-ISU(2.8mm)(C)
DS-2CD3156G2-ISU(4mm)(C)
DS-2CD3156G2-ISU(6mm)(C)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240924
Network Camera-V5.7.18 240924 Release Note-G5
Applied to:
DS-2CD3156G2-IS(2.8mm)(C)
DS-2CD3156G2-IS(6mm)(C)
DS-2CD3156G2-IS(4mm)(C)
