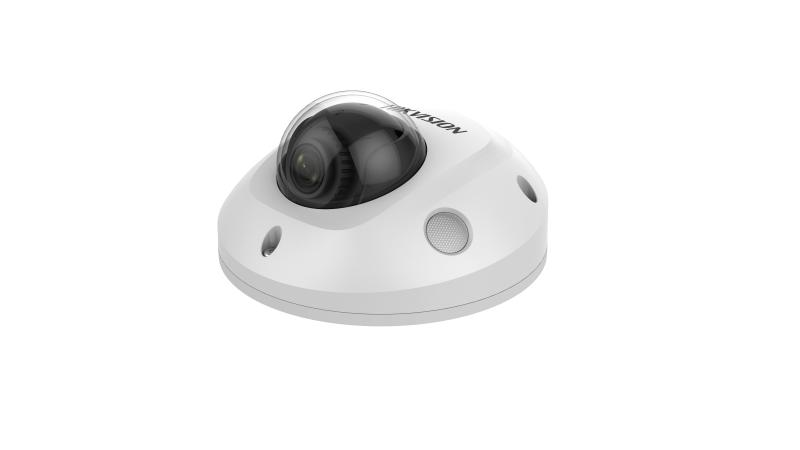

Mobile Mini Dome Network Camera

High quality imaging with 3 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology

View Less

Data Sheet

Available models:

DS-2XM6736G0-IM/ND(2.8mm)

DS-2XM6736G0-IM/ND(2.0mm)

DS-2XM6736G0-I(D)(S)(M)(/ND)

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Digital Noise Reduction3D DNR
WDR120 dB
Day & NightIR Cut Filter

Lens
Auto-IrisNo
Aperture2 mm, F2.25, 2.8/4/6 mm, F2.0, 8 mm, F1.6,
FOV2 mm, horizontal FOV 122.6°, vertical FOV 71.7°, diagonal FOV 139.9° 2.8 mm, horizontal FOV 100.6°, vertical FOV 55.1°, diagonal FOV 117.4° 4 mm, horizontal FOV 75.3°, vertical FOV 41.4°, diagonal FOV 88.2° 6 mm, horizontal FOV 51.6°, vertical FOV 28.8°, diagonal FOV 59.5° 8 mm, horizontal FOV 37.5°, vertical FOV 20.7°, diagonal FOV 43.3°
Lens MountM12
Focal length2.0/2.8/4/6/8 mm fixed lens

Video
Max. Resolution1920 × 1080
Main Stream50Hz:25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 16 Mbps
SVCH.264 and H.265 encoding

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz

Smart Feature-Set
Smart EventLine crossing detection, up to 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, up to 1 region configurable Object removal detection, up to 1 region configurable Face detection: detects faces and upload images
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Region of Interest1 fixed region for main stream and sub stream
Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Image EnhancementBLC, HLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule

Network
Network StoragemicroSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Interface
Communication Interface1 RJ45 10M/100M Ethernet port
Audio1 built-in mic, mono sound
Alarm1 input, 1 output (12 VDC, 30 mA)
Reset ButtonYes
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Main stream support.
H.265+Main stream support.

General
General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy mask
Power Supply-IDS:24 VDC is recommended, support 8 to 36 VDC, Φ 5.5 mm coaxial power plug -IS/ND: PoE: 802.3af, Class 3 -IDM: 24 VDC is recommended, support 8 to 36 VDC, two-core molex -IM/ND: PoE: 802.3af, Class 3
Power Consumption and Current-IDS: 24 VDC, 0.3 A, max. 7.5 W -IS/ND: PoE: (802.3af, 36V to 57V), 0.30 A to 0.20 A, max: 7.5W -IDM: 24 VDC, 0.3 A, max. 7.5 W -IM/ND: PoE: (802.3af, 36V to 57V), 0.30 A to 0.20 A, max: 7.5W
MaterialMetal
DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
WeightCamera: Approx. 460 g (1 lb.) With package: 900 g (2 lb)
Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Protection LevelIP67, IK10
