DS-2CD2D11G0-D/NF

EOL

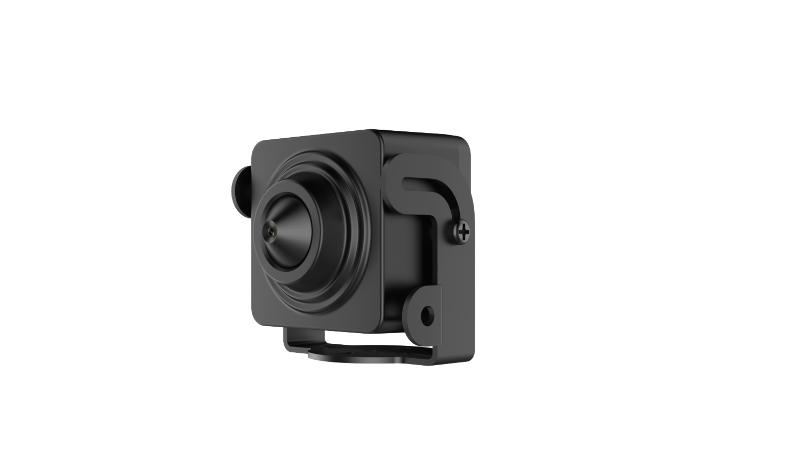

Covert Network Camera

  • High quality imaging with 1.3 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Mini size suitable for covert installations

View Less
View more
Sales Inquiry

Available models:

DS-2CD2D11G0-D/NF(3.7mm)
DS-2CD2D11G0-D/NF
EOL

Specification

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationWithout /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) With /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Auto-irisNo
  • Day & NightElectronic
  • Lens
  • FocusFixed
  • FOVWithout /M model: 3.7 mm horizontal FOV: 51°, vertical FOV: 38°, diagonal FOV: 64° With /M model: 2.8 mm horizontal FOV: 74°, vertical FOV: 55°, diagonal FOV: 93° 4 mm horizontal FOV: 55°, vertical FOV: 41°, diagonal FOV: 70°
  • Lens MountM12
  • Focal lengthWithout /M model: 3.7 mm With /M model: 2.8 mm, 4 mm
  • Image
  • Image Enhancement3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Max. Resolution1280 × 960
  • Main Stream50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)
  • Third Stream50Hz: 1fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 1fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageSupport NAS (NFS, SMB/CIFS)
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, IP address conflict, illegal login
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in)
  • Reset ButtonYes
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionH.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 8 Mbps
  • Smart Feature-set
  • Face DetectionYes
  • ExceptionScene change detection, defocus detection
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream, sub-stream and third stream
  • General
  • Power Supply12 VDC ± 20%, Φ 5.5 mm coaxial plug power
  • Power Consumption and Current12 VDC, 0.3 A, max. 3 W
  • MaterialAluminum Alloy
  • DimensionsWithout /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1") With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
  • WeightWith package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.)
  • Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Without /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) With /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Digital Noise Reduction
3D DNR
WDR
120dB
Auto-iris
No
Day & Night
Electronic
Lens
Focus
Fixed
FOV
Without /M model: 3.7 mm horizontal FOV: 51°, vertical FOV: 38°, diagonal FOV: 64° With /M model: 2.8 mm horizontal FOV: 74°, vertical FOV: 55°, diagonal FOV: 93° 4 mm horizontal FOV: 55°, vertical FOV: 41°, diagonal FOV: 70°
Lens Mount
M12
Focal length
Without /M model: 3.7 mm With /M model: 2.8 mm, 4 mm
Image Enhancement
3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
Max. Resolution
1280 × 960
Main Stream
50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)
Third Stream
50Hz: 1fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 1fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Network
Network Storage
Support NAS (NFS, SMB/CIFS)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users 3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm Trigger
Motion detection, video tampering, IP address conflict, illegal login
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 input (line in)
Reset Button
Yes
Compression Standard
H.264+
Yes
H.265+
Yes
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
H.265/H.264/MJPEG
H.265 Type
Main Profile
Video Bitrate
32 Kbps to 8 Mbps
Smart Feature-set
Face Detection
Yes
Exception
Scene change detection, defocus detection
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
Region of Interest
Support 1 fixed region for main stream, sub-stream and third stream
General
Power Supply
12 VDC ± 20%, Φ 5.5 mm coaxial plug power
Power Consumption and Current
12 VDC, 0.3 A, max. 3 W
Material
Aluminum Alloy
Dimensions
Without /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1") With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
Weight
With package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.)
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationWithout /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) With /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Auto-irisNo
  • Day & NightElectronic
Lens
  • FocusFixed
  • FOVWithout /M model: 3.7 mm horizontal FOV: 51°, vertical FOV: 38°, diagonal FOV: 64° With /M model: 2.8 mm horizontal FOV: 74°, vertical FOV: 55°, diagonal FOV: 93° 4 mm horizontal FOV: 55°, vertical FOV: 41°, diagonal FOV: 70°
  • Lens MountM12
  • Focal lengthWithout /M model: 3.7 mm With /M model: 2.8 mm, 4 mm
  • Image Enhancement3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Max. Resolution1280 × 960
  • Main Stream50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)
  • Third Stream50Hz: 1fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 1fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Network
  • Network StorageSupport NAS (NFS, SMB/CIFS)
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, IP address conflict, illegal login
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in)
  • Reset ButtonYes
Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionH.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 8 Mbps
Smart Feature-set
  • Face DetectionYes
  • ExceptionScene change detection, defocus detection
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream, sub-stream and third stream
General
  • Power Supply12 VDC ± 20%, Φ 5.5 mm coaxial plug power
  • Power Consumption and Current12 VDC, 0.3 A, max. 3 W
  • MaterialAluminum Alloy
  • DimensionsWithout /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1") With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
  • WeightWith package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.)
  • Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.800_210628
