DS-2CD2T86G2-2I/4I

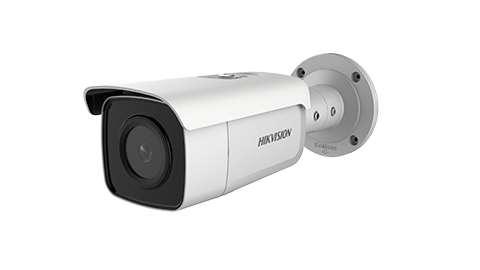

4K AcuSense Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light by 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Water and dust resistant (IP67)

View Less
View more
DS-2CD2T86G2-2I (C) (Black)
DS-2CD2T86G2-4IEOL
DS-2CD2T86G2-2I (C)
DS-2CD2T86G2-4I (C)
DS-2CD2T86G2-2IEOL
DS-2CD2T86G2-4I (C) (Black)
DS-2CD2T86G2-2I (C) (Black)
DS-2CD2T86G2-2IEOL
DS-2CD2T86G2-4IEOL
DS-2CD2T86G2-2I (C)
DS-2CD2T86G2-4I (C)
DS-2CD2T86G2-4I (C) (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2T86G2-2I(2.8mm)(C)(BLACK)

Available models:

DS-2CD2T86G2-4I(2.8mm)
DS-2CD2T86G2-4I(4mm)
DS-2CD2T86G2-4I(6mm)

Available models:

DS-2CD2T86G2-2I(2.8mm)(C)
DS-2CD2T86G2-2I(4mm)(C)
DS-2CD2T86G2-2I(6mm)(C)

Available models:

DS-2CD2T86G2-4I(2.8mm)(C)
DS-2CD2T86G2-4I(4mm)(C)
DS-2CD2T86G2-4I(6mm)(C)

Available models:

DS-2CD2T86G2-2I(2.8mm)
DS-2CD2T86G2-2I(4mm)
DS-2CD2T86G2-2I(6mm)

Available models:

DS-2CD2T86G2-4I(4mm)(C)(BLACK)

Available models:

DS-2CD2T86G2-2I(2.8mm)(C)(BLACK)

Available models:

DS-2CD2T86G2-2I(2.8mm)
DS-2CD2T86G2-2I(4mm)
DS-2CD2T86G2-2I(6mm)

Available models:

DS-2CD2T86G2-4I(2.8mm)
DS-2CD2T86G2-4I(4mm)
DS-2CD2T86G2-4I(6mm)

Available models:

DS-2CD2T86G2-2I(2.8mm)(C)
DS-2CD2T86G2-2I(4mm)(C)
DS-2CD2T86G2-2I(6mm)(C)

Available models:

DS-2CD2T86G2-4I(2.8mm)(C)
DS-2CD2T86G2-4I(4mm)(C)
DS-2CD2T86G2-4I(6mm)(C)

Available models:

DS-2CD2T86G2-4I(4mm)(C)(BLACK)
DS-2CD2T86G2-2I/4I
Data Sheet

Specification

  • Camera
  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Max. Resolution 3840 × 2160
  • Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F1.6
  • DORI
  • DORI 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range -2I: up to 60 m -4I: up to 80 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Target Cropping Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/Host Up to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in micro SD slot, up to 256 GB
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
  • Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Deep Learning Function
  • Face Capture Yes
  • General
  • Power -2I: 12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W -4I: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
  • Dimension Ø105 mm × 290 mm (Ø4.1" × 11.4")
  • Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
  • Weight Approx. 1270 g (2.8 lb.)
  • With Package Weight Approx. 1510 g (3.3 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
-2I: up to 60 m -4I: up to 80 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in micro SD slot, up to 256 GB
Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
Face Capture
Yes
General
Power
-2I: 12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W -4I: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
Dimension
Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension
386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight
Approx. 1270 g (2.8 lb.)
With Package Weight
Approx. 1510 g (3.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-2I(2.8mm)(C)(BLACK)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.820_231108
Network Camera-V5.5.820 Release Note-G3
Applied to:
DS-2CD2T86G2-4I(2.8mm)
DS-2CD2T86G2-4I(4mm)
DS-2CD2T86G2-4I(6mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-2I(2.8mm)(C)
DS-2CD2T86G2-2I(4mm)(C)
DS-2CD2T86G2-2I(6mm)(C)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-4I(2.8mm)(C)
DS-2CD2T86G2-4I(4mm)(C)
DS-2CD2T86G2-4I(6mm)(C)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.820_231108
Network Camera-V5.5.820 Release Note-G3
Applied to:
DS-2CD2T86G2-2I(2.8mm)
DS-2CD2T86G2-2I(4mm)
DS-2CD2T86G2-2I(6mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-4I(4mm)(C)(BLACK)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-2I(2.8mm)(C)(BLACK)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.820_231108
Network Camera-V5.5.820 Release Note-G3
Applied to:
DS-2CD2T86G2-2I(2.8mm)
DS-2CD2T86G2-2I(4mm)
DS-2CD2T86G2-2I(6mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.820_231108
Network Camera-V5.5.820 Release Note-G3
Applied to:
DS-2CD2T86G2-4I(2.8mm)
DS-2CD2T86G2-4I(4mm)
DS-2CD2T86G2-4I(6mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-2I(2.8mm)(C)
DS-2CD2T86G2-2I(4mm)(C)
DS-2CD2T86G2-2I(6mm)(C)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-4I(2.8mm)(C)
DS-2CD2T86G2-4I(4mm)(C)
DS-2CD2T86G2-4I(6mm)(C)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2T86G2-4I(4mm)(C)(BLACK)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Hotline Services
Contact Sales
Technical Support
Online Service
Subscribe Newsletter
Where to Buy
Hotline Services
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
