DS-2CD7A26G0/P-IZ(H)S

EOL

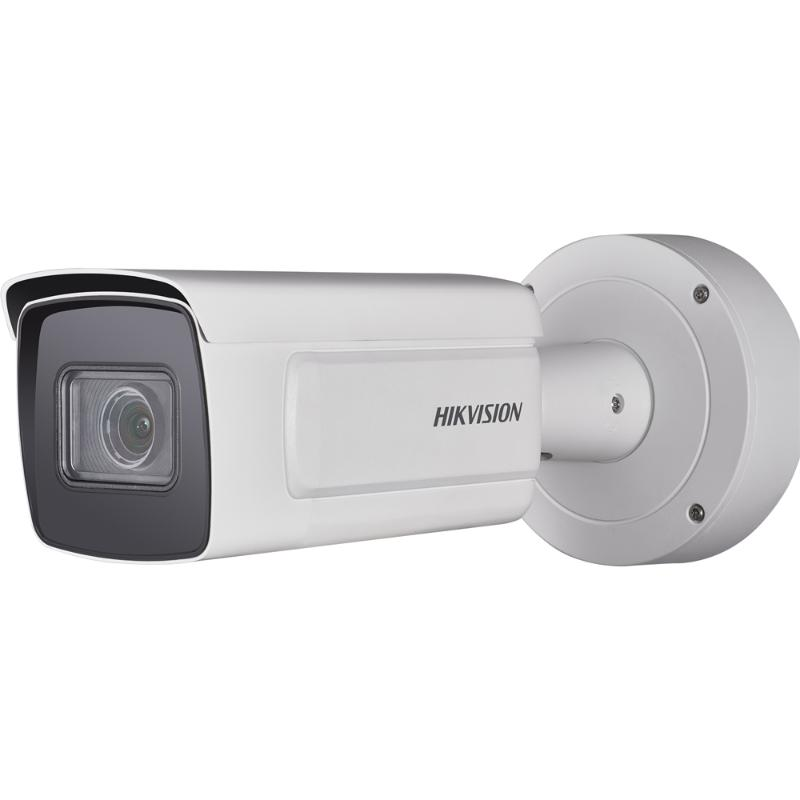

2 MP DeepinView ANPR Moto Varifocal Bullet Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to LightFighter technology
  • License Plate Recognition
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor network
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • 6 behavior analyses, 3 exception detection, and face detection
  • Water and dust resistant and vandal proof (IP67 and IK10).

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD7A26G0/P-IZHS(2.8-12mm)
DS-2CD7A26G0/P-IZHS(8-32mm)
DS-2CD7A26G0/P-IZS(2.8-12mm)
DS-2CD7A26G0/P-IZS(8-32mm)
DS-2CD7A26G0/P-IZ(H)S
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140 dB
  • Day & NightIR cut filter
  • Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • FocusAuto, semi-auto, manual
  • FOV2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
  • Aperture2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
  • Lens MountIntegrated
  • Illuminator
  • IR Range2.8 to 12 mm: up to 50 m 8 to 32 mm: up to 100 m
  • IR Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
  • Audio
  • Environment Noise FilteringNo
  • Audio Sampling RateNo
  • Audio Compression No
  • Audio Bit RateNo
  • Network
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • Web BrowserPlug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Event
  • CountingNo
  • Exception DetectionScene change detection, defocus detection
  • Deep Learning Function
  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • AccuracyCapture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
  • No License Plate DetectionYes
  • Motorcycle LPRYes (only applicable to checkpoint)
  • Allowlist and BlocklistMax. 10,000 records
  • General
  • Firmware Version5.5.60
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
140 dB
Day & Night
IR cut filter
Angle Adjustment
Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Auto, semi-auto, manual
FOV
2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Aperture
2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
Lens Mount
Integrated
Illuminator
IR Range
2.8 to 12 mm: up to 50 m 8 to 32 mm: up to 100 m
IR Wavelength
850 nm
Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Audio
Environment Noise Filtering
No
Audio Sampling Rate
No
Audio Compression
No
Audio Bit Rate
No
Network
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Web Browser
Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
Target Cropping
Yes
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Event
Counting
No
Exception Detection
Scene change detection, defocus detection
Deep Learning Function
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Accuracy
Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
No License Plate Detection
Yes
Motorcycle LPR
Yes (only applicable to checkpoint)
Allowlist and Blocklist
Max. 10,000 records
General
Firmware Version
5.5.60
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140 dB
  • Day & NightIR cut filter
  • Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
  • FocusAuto, semi-auto, manual
  • FOV2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
  • Aperture2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
  • Lens MountIntegrated
Illuminator
  • IR Range2.8 to 12 mm: up to 50 m 8 to 32 mm: up to 100 m
  • IR Wavelength850 nm
Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Audio
  • Environment Noise FilteringNo
  • Audio Sampling RateNo
  • Audio Compression No
  • Audio Bit RateNo
Network
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • Web BrowserPlug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Event
  • CountingNo
  • Exception DetectionScene change detection, defocus detection
Deep Learning Function
  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • AccuracyCapture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
  • No License Plate DetectionYes
  • Motorcycle LPRYes (only applicable to checkpoint)
  • Allowlist and BlocklistMax. 10,000 records
General
  • Firmware Version5.5.60
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.11_210129
Applied to:
DS-2CD7A26G0/P-IZHS(2.8-12mm)
DS-2CD7A26G0/P-IZHS(8-32mm)
DS-2CD7A26G0/P-IZS(2.8-12mm)
DS-2CD7A26G0/P-IZS(8-32mm)
