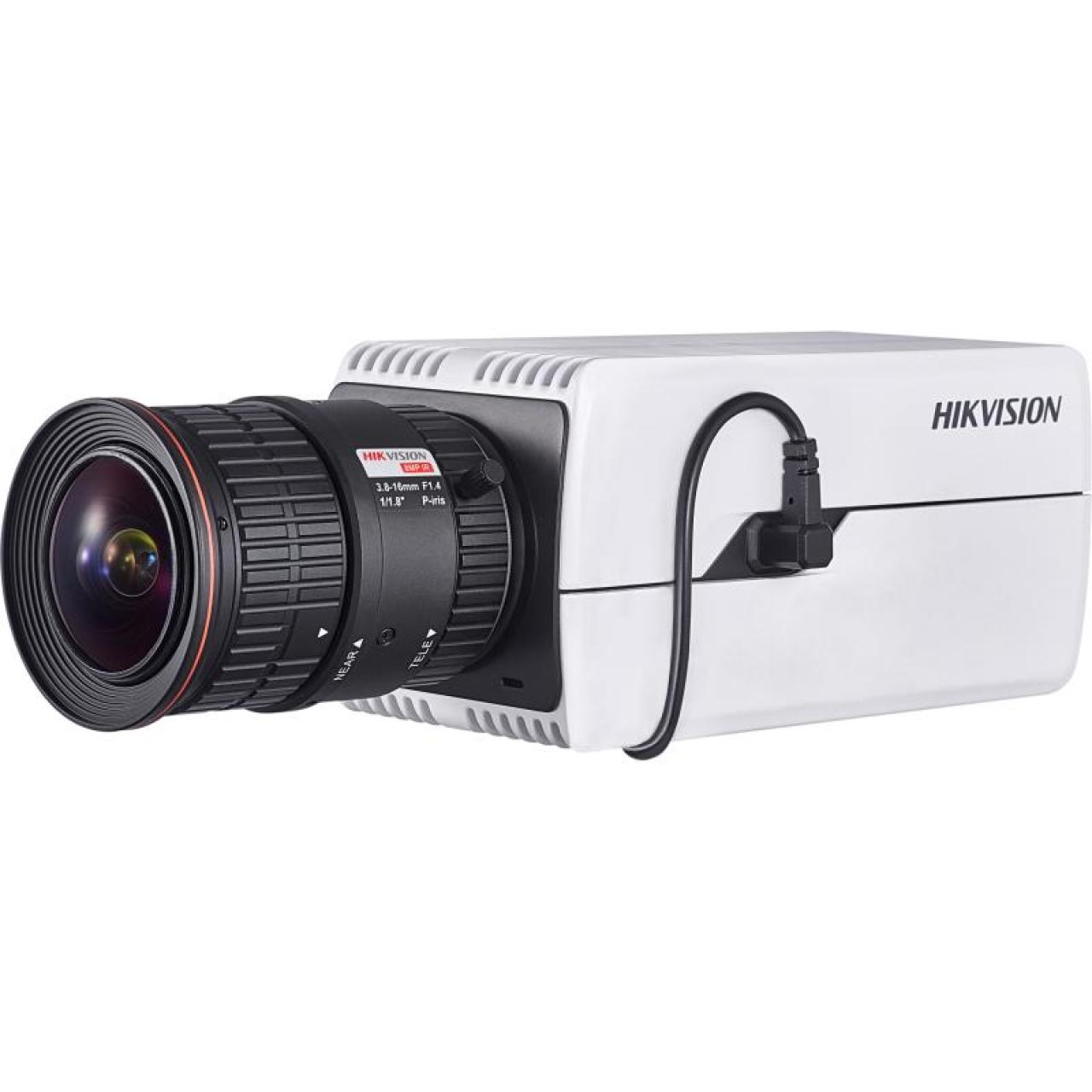

4 MP DeepinView Moto Varifocal Box Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to LightFighter technology
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection.

View Less

Available models:

DS-2CD7046G0-AP

DS-2CD7046G0-(AP)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR cut filter

Lens
Lens MountCS mount
Auto-IrisP-iris

Video
Max. Resolution2560 × 1440
Video Stream5 defined streams and up to 5 custom stream
Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ;60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream--

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1 input (line in), 1 output (line out), 2-core terminal block, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)
Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Hardware ResetReset via reset button on camera body, web browser and client software
Communication Interface1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output12 VDC, max. 200 mA
Interface StyleConnector panel

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
CountingCounting-

Deep Learning Function
Queue ManagementDetects queuing-up people number, and waiting time of each person ;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue ;Supports raw data export for further analysis-
Face CaptureFace detection performance: detects up to 30 faces at the same time ;Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60°-
Premier ProtectionLine crossing, intrusion, region entrance, and region exiting ;Support alarm triggering by specified target types (human and vehicle) ;Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General
Linkage MethodTrigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email-
Firmware VersionV5.6.0
Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)-
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; 24 VAC is recommended, 15 to 36 VAC; PoE (802.3af, class 3)
Power Consumption and CurrentWith extra load: 12 VDC, 1 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 12 W ,Without extra load: 12 VDC, 0.8 A, max. 9.6 W; 24 VAC, 0.7 A, max. 9.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 9.6 W
Camera DimensionCamera: 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) ,Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Camera Weight-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with packageNon-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Camera

Image Sensor

1/1.8ʺ Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

140 dB

Day & Night

IR cut filter

Lens

Lens Mount

CS mount

Auto-Iris

P-iris

Video

Max. Resolution

2560 × 1440

Video Stream

5 defined streams and up to 5 custom stream

Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ;60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream support

H.265+

Main stream support

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream--

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2

Network Storage

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

1 input (line in), 1 output (line out), 2-core terminal block, mono sound

Alarm

2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)

Video Output

1Vp-p composite output (75 Ω/CVBS), only for adjustment

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Reset via reset button on camera body, web browser and client software

Communication Interface

1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Power Output

12 VDC, max. 200 mA

Interface Style

Connector panel

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Counting

Counting-

Deep Learning Function

Queue Management

Detects queuing-up people number, and waiting time of each person ;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue ;Supports raw data export for further analysis-

Face Capture

Face detection performance: detects up to 30 faces at the same time ;Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60°-

Premier Protection

Line crossing, intrusion, region entrance, and region exiting ;Support alarm triggering by specified target types (human and vehicle) ;Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General

Linkage Method

Trigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email-

Firmware Version

V5.6.0

Web Client Language

32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)-

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; 24 VAC is recommended, 15 to 36 VAC; PoE (802.3af, class 3)

Power Consumption and Current

With extra load: 12 VDC, 1 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 12 W ,Without extra load: 12 VDC, 0.8 A, max. 9.6 W; 24 VAC, 0.7 A, max. 9.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 9.6 W

Camera Dimension

Camera: 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) ,Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)

Camera Weight

-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with packageNon-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Environment

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Camera

Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR cut filter

Lens

Lens MountCS mount
Auto-IrisP-iris

Video

Max. Resolution2560 × 1440
Video Stream5 defined streams and up to 5 custom stream
Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ;60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream--

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio1 input (line in), 1 output (line out), 2-core terminal block, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)
Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Hardware ResetReset via reset button on camera body, web browser and client software
Communication Interface1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output12 VDC, max. 200 mA
Interface StyleConnector panel

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
CountingCounting-

Deep Learning Function

Queue ManagementDetects queuing-up people number, and waiting time of each person ;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue ;Supports raw data export for further analysis-
Face CaptureFace detection performance: detects up to 30 faces at the same time ;Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60°-
Premier ProtectionLine crossing, intrusion, region entrance, and region exiting ;Support alarm triggering by specified target types (human and vehicle) ;Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General

Linkage MethodTrigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email-
Firmware VersionV5.6.0
Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)-
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; 24 VAC is recommended, 15 to 36 VAC; PoE (802.3af, class 3)
Power Consumption and CurrentWith extra load: 12 VDC, 1 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 12 W ,Without extra load: 12 VDC, 0.8 A, max. 9.6 W; 24 VAC, 0.7 A, max. 9.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 9.6 W
Camera DimensionCamera: 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) ,Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Camera Weight-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with packageNon-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Approval

EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
