DS-2XC6224G0-L

EOL

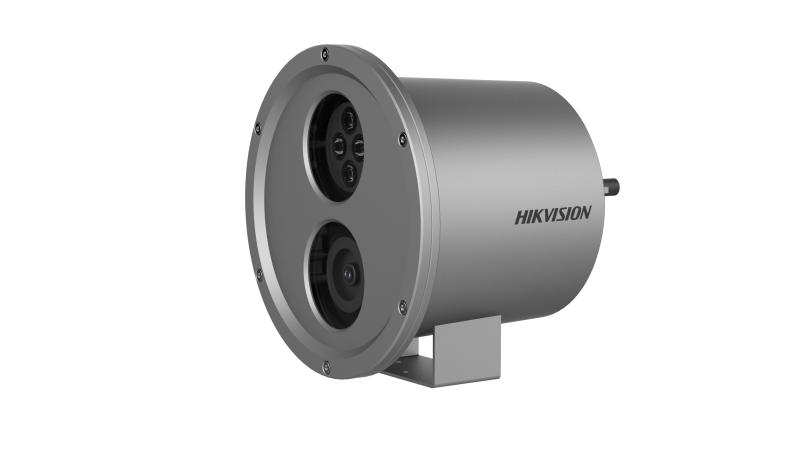

Bullet Underwater Network Camera

  • 304 stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • IP68: the camera can be used under water up to 15 meters
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
  • DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments
  • True WDR technology provides clear imaging even with strong back lighting
View Less
View more

Available models:

DS-2XC6224G0-L(2.0mm)
DS-2XC6224G0-L(2.8mm)
DS-2XC6224G0-L(4.0mm)
DS-2XC6224G0-L
EOL

Specification

  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F2.0, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0003 Lux @ (F2.0, AGC ON), 0 lux with white light
  • Shutter Time1 s to 1/100,000 s
  • Day & NightElectronic
  • Lens
  • Lens TypeFixed focal lens, 2.0/2.8/4.0 mm
  • Focal Length & FOV2.0 mm @ F2.2, horizontal FOV 127.6°, vertical FOV 74.5°, diagonal FOV 145.9°, 2.8 mm @ F1.6, horizontal FOV 108°, vertical FOV 56.7°, diagonal FOV 121.4°, 4 mm @ F1.6, horizontal FOV 82°, vertical FOV 43.8°, diagonal FOV 96.5°
  • Lens MountM12
  • Aperture2.0 mm @ F2.2, 2.8 mm @ F1.6, 4 mm @ F1.6
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 10 m
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • Sub-Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 640 × 480, 320 × 240),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 640 × 480, 320 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • Network StorageMicro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-connect
  • Web BrowserIE 8+, Chrome 31.0 - 44, Firefox 30.0 - 51, Safari 8.0+
  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Power36 V DC ± 20%, 0.6 A, max. 14.5 W, two-core terminal block PoE: (802.3.at, class 3, 42.5 V-57 V), 0.45 A to 0.3 A, 17 W
  • Material316L and anti-corrosion coating
  • Dimension210 mm × 200 mm × 205 mm (8.3″ × 7.9″ × 8.1″)
  • Package Dimension700 mm × 530 mm × 340 mm (27.6″ × 20.9″ × 13.4″)
  • Weight6.955 kg (15.33 lb.)
  • With Package Weight11.165 kg (24.61 lb.)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 100% or less (non-condensing)
  • General FunctionAnti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
  • Cable Length15 m (included)
  • Approval
  • ProtectionIP68

Specification

Specification
Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F2.0, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0003 Lux @ (F2.0, AGC ON), 0 lux with white light
  • Shutter Time1 s to 1/100,000 s
  • Day & NightElectronic
Lens
  • Lens TypeFixed focal lens, 2.0/2.8/4.0 mm
  • Focal Length & FOV2.0 mm @ F2.2, horizontal FOV 127.6°, vertical FOV 74.5°, diagonal FOV 145.9°, 2.8 mm @ F1.6, horizontal FOV 108°, vertical FOV 56.7°, diagonal FOV 121.4°, 4 mm @ F1.6, horizontal FOV 82°, vertical FOV 43.8°, diagonal FOV 96.5°
  • Lens MountM12
  • Aperture2.0 mm @ F2.2, 2.8 mm @ F1.6, 4 mm @ F1.6
Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 10 m
Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • Sub-Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 640 × 480, 320 × 240),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 640 × 480, 320 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • Network StorageMicro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-connect
  • Web BrowserIE 8+, Chrome 31.0 - 44, Firefox 30.0 - 51, Safari 8.0+
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
General
  • Power36 V DC ± 20%, 0.6 A, max. 14.5 W, two-core terminal block PoE: (802.3.at, class 3, 42.5 V-57 V), 0.45 A to 0.3 A, 17 W
  • Material316L and anti-corrosion coating
  • Dimension210 mm × 200 mm × 205 mm (8.3″ × 7.9″ × 8.1″)
  • Package Dimension700 mm × 530 mm × 340 mm (27.6″ × 20.9″ × 13.4″)
  • Weight6.955 kg (15.33 lb.)
  • With Package Weight11.165 kg (24.61 lb.)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 100% or less (non-condensing)
  • General FunctionAnti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
  • Cable Length15 m (included)
Approval
  • ProtectionIP68

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
DS-2XC6224G0-L(2.0mm)
DS-2XC6224G0-L(2.8mm)
DS-2XC6224G0-L(4.0mm)
