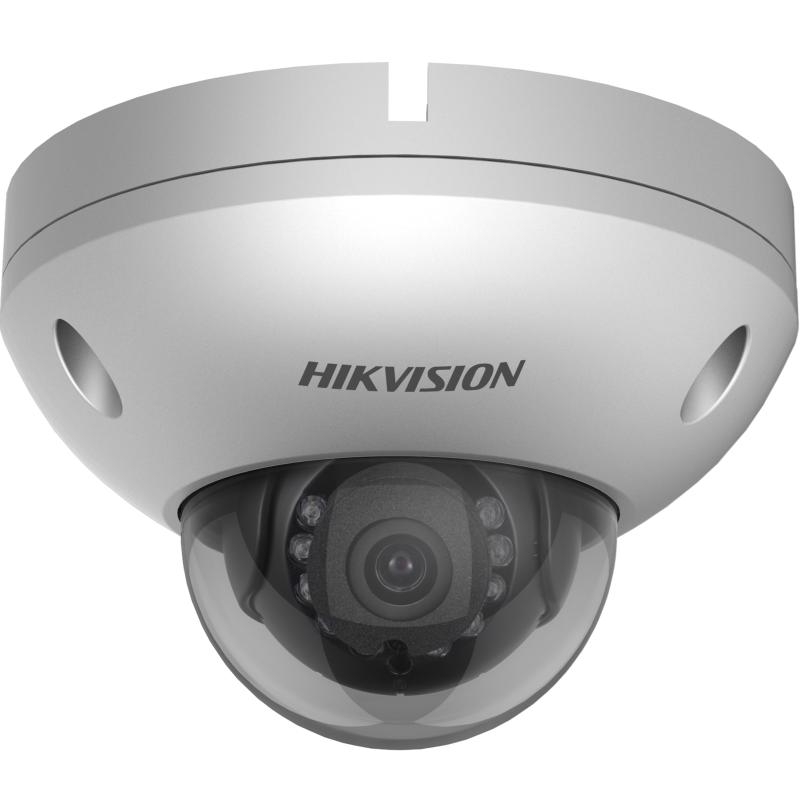

IR Fixed Mini Dome Anti-Corrosion Network Camera

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
IP67 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation

View Less

Data Sheet

Available models:

DS-2XC6122FWD-IS(2.8mm)(B)

DS-2XC6122FWD-IS(4mm)

DS-2XC6122FWD-IS(6mm)

DS-2XC6122FWD-IS

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination0.01 Lux @(F1.2,AGC ON) ,0 Lux with IR on,0.028 Lux @(F2.0,AGC ON), 0 Lux with IR on
Shutter Time1 s to 1/100,000 s, support slow shutter
Day & NightIR cut filter
Angle AdjustmentTilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°

Lens
Focal Length & FOV2.8mm, horizontal field of view: 100°, vertical field of view: 53° 4mm, horizontal field of view: 91°, vertical field of view:49° 6mm horizontal field of view: 60°, vertical field of view: 32.5°
Lens MountM12

Illuminator
Supplement Light Range10 m

Video
Main Stream2.8 mm lens camera: 50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 24 fps (1920 × 1080,1280 × 960,1280 × 720) 4 mm and 6mm lens camera: 50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (1920 × 1080,1280 × 960,1280 × 720)
Sub-Stream2.8 mm lens camera: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) 4 mm and 6 mm lens camera: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream2.8 mm lens camera: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240) 4 mm and 6 mm lens camera: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main Profile/High profile
H.265 TypeMain Profile
Region of Interest (ROI)Support 4 fixed region for each stream, and dynamic tracking
Target CroppingYes

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-128 Kbps(MP2L2)

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
APIONVIF (PROFILE S, PROFILE G), ISAPI
Network StorageSupport Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR

Image SettingsRotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC/ 3D DNR/Defog
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarm 1 alarm input, 1 alarm output

Event
Basic Event Motion detection, tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflicted, illegal login）
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Face detection, scene change detection, defocus detection

General
PowerDC 12V, 330mA, Max. 5W, terminal block PoE (802.3af, class 3), 0.1A
Material316L and anti-corrosion coating
DimensionΦ 113 × 77.3 mm (4.45″ × 3.04″)
Package Dimension257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Weight1680 g (3.7 lb.)
Startup and Operating Conditions-30°C to +60 °C (-22 °F to +140 °F), Humidity less than 95% (non-condensing)
General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Approval
EMCFCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B) CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: IC-VoC(ICES-003 Issue 7:2020) KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)
SafetyUL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014 CB: IEC 60950-1
EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
ProtectionIP67
Anti-Corrosion ProtectionWF2, NEMA-4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

0.01 Lux @(F1.2,AGC ON) ,0 Lux with IR on,0.028 Lux @(F2.0,AGC ON), 0 Lux with IR on

Shutter Time

1 s to 1/100,000 s, support slow shutter

Day & Night

IR cut filter

Angle Adjustment

Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°

Lens

Focal Length & FOV

2.8mm, horizontal field of view: 100°, vertical field of view: 53° 4mm, horizontal field of view: 91°, vertical field of view:49° 6mm horizontal field of view: 60°, vertical field of view: 32.5°

Lens Mount

M12

Illuminator

Supplement Light Range

10 m

Video

Main Stream

2.8 mm lens camera: 50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 24 fps (1920 × 1080,1280 × 960,1280 × 720) 4 mm and 6mm lens camera: 50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (1920 × 1080,1280 × 960,1280 × 720)

Sub-Stream

2.8 mm lens camera: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) 4 mm and 6 mm lens camera: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

Third Stream

2.8 mm lens camera: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240) 4 mm and 6 mm lens camera: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile/Main Profile/High profile

H.265 Type

Main Profile

Region of Interest (ROI)

Support 4 fixed region for each stream, and dynamic tracking

Target Cropping

Yes

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-128 Kbps(MP2L2)

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Network Storage

Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR


Image Settings

Rotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser

Day/Night Switch

Auto/Schedule/Triggered by Alarm In

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC/ 3D DNR/Defog

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Alarm

1 alarm input, 1 alarm output

Event

Basic Event

Motion detection, tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflicted, illegal login）

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Face detection, scene change detection, defocus detection

General

Power

DC 12V, 330mA, Max. 5W, terminal block PoE (802.3af, class 3), 0.1A

Material

316L and anti-corrosion coating

Dimension

Φ 113 × 77.3 mm (4.45″ × 3.04″)

Package Dimension

257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)

Weight

1680 g (3.7 lb.)

Startup and Operating Conditions

-30°C to +60 °C (-22 °F to +140 °F), Humidity less than 95% (non-condensing)

General Function

Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Approval

EMC

FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B) CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: IC-VoC(ICES-003 Issue 7:2020) KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)

Safety

UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014 CB: IEC 60950-1

Environment

CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

Protection

IP67

Anti-Corrosion Protection

WF2, NEMA-4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
