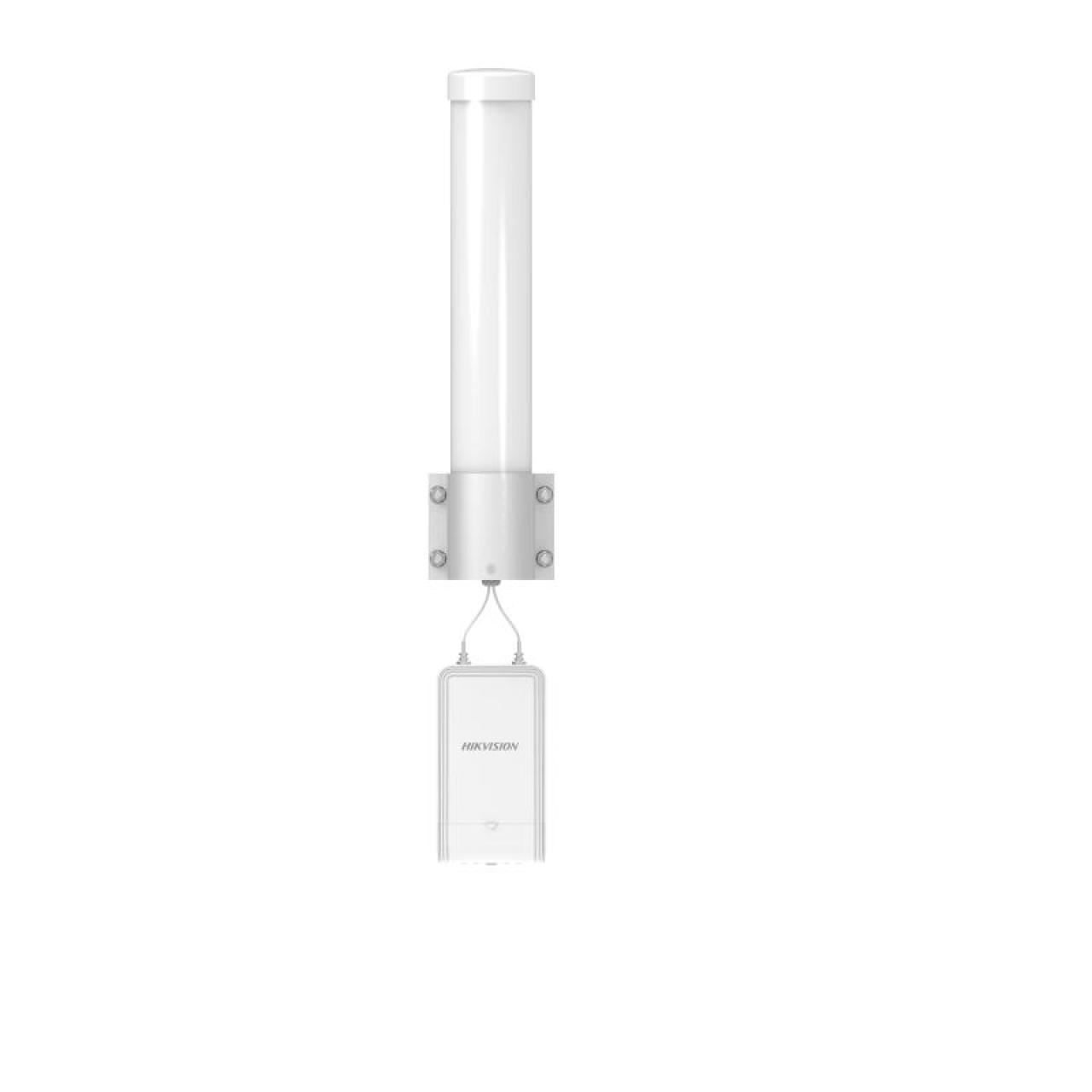

DS-3WF0FA-5AC/O

5Ghz 867Mbps 1KM 360° Wireless AP Bridge

  • Up to 1 km wireless transmission distance
  • 867 Mbps 802.11ac wireless bridge
  • Built-in 8dBi 2 x 2 MIMO antenna
  • 802.3af PoE power supply
  • Visualized topology management
  • Real-Time alarm push technology
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3WF0FA-5AC/O
DS-3WF0FA-5AC/O
Data Sheet

Specification

  • General
  • Product Dimensions (W × H × D) 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'')
  • Package Dimensions (W × H × D)550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5")
  • Net Weight0.3 kg (0.66 lb)
  • Gross Weight3.5 kg (7.71 lb)
  • Packing ListWireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1
  • Packing MethodSingle unit packing
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP55
  • Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
  • Wireless Parameter
  • Max. Transmission Rate of Air Interface≤ 867 Mbps
  • Wireless StandardIEEE 802.11/a/n/ac
  • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
  • Antenna Gain8 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8°
  • Transmitting Power14 dBm (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-60±2 dBm@AC80-MCS9,-85±2dBm@AC80-MCS0
  • Throughput RatePoint to point: Support up to 32-ch IPC (2MP) in Max. 1 KM distance and Max. 160 Mbps bandwidth,Point to multi-point: Support up to 22-ch IPC (2MP) in Max. 1 KM distance and Max. 110 Mbps bandwidth within 360°, Max. 1 to 8 PTMP connection
  • PoE Power Supply
  • PoE PortPoE IN/LAN 1
  • PoE Distance100m
  • Hardware Parameter
  • Network Interface2 × 1000 Mbps RJ45 ports
  • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
  • ResetHardware resetting button
  • Power Supply48V 0.33A PoE or PoE(802.3af) 36～57V 0.13A
  • Software Function
  • Application FunctionTDMA,DFS,TPC,IFM,IPM
  • Channel Width20/40/80 MHz
  • Channel SelectionAuto/manual selection
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Management MethodWeb,iVMS-4200,HCP
  • UpgradeWeb,iVMS-4200,HCP
  • System LogSyslog,Control center information
  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Product Dimensions (W × H × D)
103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'')
Package Dimensions (W × H × D)
550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5")
Net Weight
0.3 kg (0.66 lb)
Gross Weight
3.5 kg (7.71 lb)
Packing List
Wireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1
Packing Method
Single unit packing
Working Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity
5% to 95% (no condensation)
Storage Temperature
-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity
5% to 95% (no condensation)
Installation Mode
Pole Mounting
Ingress Protection
IP55
Power Consumption
2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
Wireless Parameter
Max. Transmission Rate of Air Interface
≤ 867 Mbps
Wireless Standard
IEEE 802.11/a/n/ac
Working Frequency Band
5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
Antenna Gain
8 dBi
Antenna Angle
(H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8°
Transmitting Power
14 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity
-60±2 dBm@AC80-MCS9,-85±2dBm@AC80-MCS0
Throughput Rate
Point to point: Support up to 32-ch IPC (2MP) in Max. 1 KM distance and Max. 160 Mbps bandwidth,Point to multi-point: Support up to 22-ch IPC (2MP) in Max. 1 KM distance and Max. 110 Mbps bandwidth within 360°, Max. 1 to 8 PTMP connection
PoE Power Supply
PoE Port
PoE IN/LAN 1
PoE Distance
100m
Hardware Parameter
Network Interface
2 × 1000 Mbps RJ45 ports
LED Indicator
Power indicator,LAN indicator,Signal intensity indicator
Reset
Hardware resetting button
Power Supply
48V 0.33A PoE or PoE(802.3af) 36～57V 0.13A
Software Function
Application Function
TDMA,DFS,TPC,IFM,IPM
Channel Width
20/40/80 MHz
Channel Selection
Auto/manual selection
Network Protocol
NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
Security Mode
WPA2-PSK
Security Mechanism
Wireless network name hidden
Management Method
Web,iVMS-4200,HCP
Upgrade
Web,iVMS-4200,HCP
System Log
Syslog,Control center information
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio
EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
General
  • Product Dimensions (W × H × D) 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'')
  • Package Dimensions (W × H × D)550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5")
  • Net Weight0.3 kg (0.66 lb)
  • Gross Weight3.5 kg (7.71 lb)
  • Packing ListWireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1
  • Packing MethodSingle unit packing
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP55
  • Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
Wireless Parameter
  • Max. Transmission Rate of Air Interface≤ 867 Mbps
  • Wireless StandardIEEE 802.11/a/n/ac
  • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
  • Antenna Gain8 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8°
  • Transmitting Power14 dBm (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-60±2 dBm@AC80-MCS9,-85±2dBm@AC80-MCS0
  • Throughput RatePoint to point: Support up to 32-ch IPC (2MP) in Max. 1 KM distance and Max. 160 Mbps bandwidth,Point to multi-point: Support up to 22-ch IPC (2MP) in Max. 1 KM distance and Max. 110 Mbps bandwidth within 360°, Max. 1 to 8 PTMP connection
PoE Power Supply
  • PoE PortPoE IN/LAN 1
  • PoE Distance100m
Hardware Parameter
  • Network Interface2 × 1000 Mbps RJ45 ports
  • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
  • ResetHardware resetting button
  • Power Supply48V 0.33A PoE or PoE(802.3af) 36～57V 0.13A
Software Function
  • Application FunctionTDMA,DFS,TPC,IFM,IPM
  • Channel Width20/40/80 MHz
  • Channel SelectionAuto/manual selection
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Management MethodWeb,iVMS-4200,HCP
  • UpgradeWeb,iVMS-4200,HCP
  • System LogSyslog,Control center information
Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
