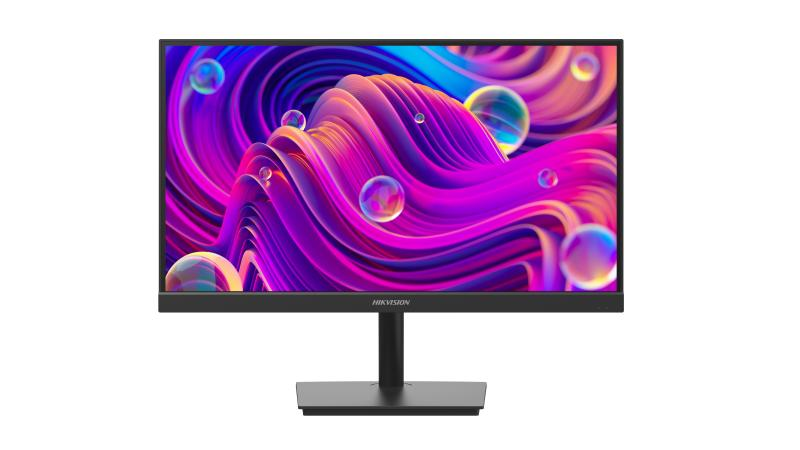

DS-D5022F2-1V1

21.5 inch FHD VA 75Hz

  • Ultra-thin device body with ultra-thin border for 3 sides.
  • 8 bit LVDS FHD (1920 × 1080) display.
  • 178° ultra-wide view screen.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface of HDMI and VGA.
  • Support VESA wall mount.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5022F2-1V1(European standard)
DS-D5022F2-1V1(American)
DS-D5022F2-1V1)(British)
DS-D5022F2-1V1
Data Sheet

Specification

  • Display
  • Screen Size21.45 inch
  • Active Display Area478.656 (H) mm × 260.280 (V) mm
  • Resolution1920 × 1080
  • BacklightE-LED
  • Pixel Pitch0.241 mm (H) × 0.241 mm (V)
  • Brightness250 cd/m²
  • Viewing Angle178° (H) / 178° (V)
  • Color Depth8 bit ,16.7 M
  • Contrast Ratio3000 : 1
  • Response Time6.5 ms
  • Refresh RateMax. 75Hz , Typ. 60 Hz
  • HazeHaze 25%, 3H
  • Reliability7 × 16 H
  • Color Gamut72% NTSC
  • Interface
  • Video & Audio InputHDMI 1.4 × 1, VGA × 1
  • Video & Audio OutputNone
  • Data Transmission InterfaceNone
  • Control InterfaceNone
  • Power
  • Power SupplyDC 12V, 2.0A
  • Power Consumption≤ 24 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20% to 90% RH (Non-Condensing)
  • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
  • Storage Humidity10% to 90% RH (Non-Condensing)
  • General
  • Casing MaterialPlastic
  • VESA75 mm × 75 mm (4 - M4 × 6 mm)
  • Bezel Width2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W × H × D)With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm
  • Package Dimensions (W × H × D)599 (W) mm × 393 (H) mm × 109 (D) mm
  • Net Weight2.0 ± 0.5 kg
  • Gross Weight3.2 ± 0.5 kg
  • Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
  • RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen Size
21.45 inch
Active Display Area
478.656 (H) mm × 260.280 (V) mm
Resolution
1920 × 1080
Backlight
E-LED
Pixel Pitch
0.241 mm (H) × 0.241 mm (V)
Brightness
250 cd/m²
Viewing Angle
178° (H) / 178° (V)
Color Depth
8 bit ,16.7 M
Contrast Ratio
3000 : 1
Response Time
6.5 ms
Refresh Rate
Max. 75Hz , Typ. 60 Hz
Haze
Haze 25%, 3H
Reliability
7 × 16 H
Color Gamut
72% NTSC
Interface
Video & Audio Input
HDMI 1.4 × 1, VGA × 1
Video & Audio Output
None
Data Transmission Interface
None
Control Interface
None
Power
Power Supply
DC 12V, 2.0A
Power Consumption
≤ 24 W
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
20% to 90% RH (Non-Condensing)
Storage Temperature
-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity
10% to 90% RH (Non-Condensing)
General
Casing Material
Plastic
VESA
75 mm × 75 mm (4 - M4 × 6 mm)
Bezel Width
2.38 mm (top/left/right), 21.55 mm (bottom)
Product Dimensions (W × H × D)
With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm
Package Dimensions (W × H × D)
599 (W) mm × 393 (H) mm × 109 (D) mm
Net Weight
2.0 ± 0.5 kg
Gross Weight
3.2 ± 0.5 kg
Packing List
Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
Remarks
The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen Size21.45 inch
  • Active Display Area478.656 (H) mm × 260.280 (V) mm
  • Resolution1920 × 1080
  • BacklightE-LED
  • Pixel Pitch0.241 mm (H) × 0.241 mm (V)
  • Brightness250 cd/m²
  • Viewing Angle178° (H) / 178° (V)
  • Color Depth8 bit ,16.7 M
  • Contrast Ratio3000 : 1
  • Response Time6.5 ms
  • Refresh RateMax. 75Hz , Typ. 60 Hz
  • HazeHaze 25%, 3H
  • Reliability7 × 16 H
  • Color Gamut72% NTSC
Interface
  • Video & Audio InputHDMI 1.4 × 1, VGA × 1
  • Video & Audio OutputNone
  • Data Transmission InterfaceNone
  • Control InterfaceNone
Power
  • Power SupplyDC 12V, 2.0A
  • Power Consumption≤ 24 W
  • Standby Consumption≤ 0.5 W
Working Environment
  • Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20% to 90% RH (Non-Condensing)
  • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
  • Storage Humidity10% to 90% RH (Non-Condensing)
General
  • Casing MaterialPlastic
  • VESA75 mm × 75 mm (4 - M4 × 6 mm)
  • Bezel Width2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W × H × D)With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm
  • Package Dimensions (W × H × D)599 (W) mm × 393 (H) mm × 109 (D) mm
  • Net Weight2.0 ± 0.5 kg
  • Gross Weight3.2 ± 0.5 kg
  • Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
  • RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.5.1_241021
Firmware_V1.5.1_241021
Applied to:
DS-D5022F2-1V1(European standard)
DS-D5022F2-1V1(American)
DS-D5022F2-1V1)(British)
