DS-KD8023-E6

EOL

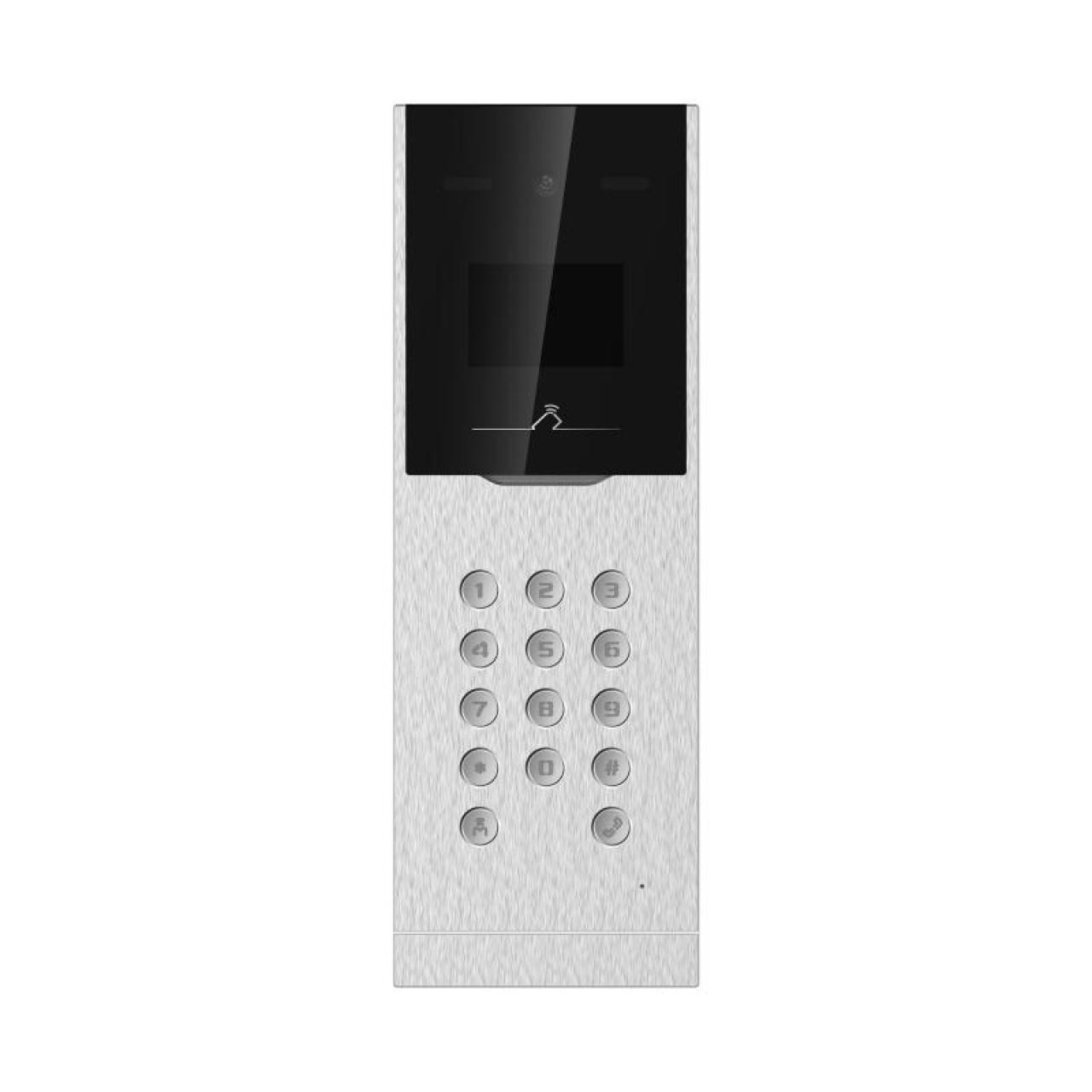

3.5inch Metal IP Door Station

  • 3.5-inch colorful LCD screen with 480 × 320 resolution
  • 2MP HD colorful camera with high quality image
  • IP65 protection level
  • Built-in M1 card reading module
  • Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
  • Convenient configuration via Web remotely
  • Convenient unlock methods: Cards and PIN code

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KD8023-E6（O-STD）
DS-KD8023-E6
EOL
Data Sheet

Specification

  • System parameters
  • Operation systemLinux
  • ROM4 GB
  • RAM512 MB
  • ProcessorEmbeded high performance processor
  • Display parameters
  • Screen size3.5-inch
  • Operation method/
  • TypeColorful LCD
  • Resolution480 × 320
  • Video parameters
  • Lens2 MP HD camera
  • ResolutionMain stream: 1920 × 1080p ,720p Sub stream: 640 × 480p
  • FOVHorizontal: 70°, Vertical: 121°, Diagonal: 131°
  • Wide dynamic range (WDR)Digital WDR/120 dB
  • Supplement lightIR light, up to 3 m
  • Video compression standardH.264
  • Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG.711 U, G.711 A
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • User capacity/
  • Face capacity/
  • Card capacity10000
  • Linked network camera capacity500
  • Network parameters
  • Network protocolTCP/IP, RTSP
  • Wi-Fi/
  • Bluetooth/
  • 3G/4G/
  • Authentication
  • Card typeM1 card
  • Device interfaces
  • Alarm input8
  • Network interface1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER1
  • Exit button2
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • USB/
  • Wiegand1
  • TF card/
  • Alarm output2
  • Lock control2 relays, Max. 30 VDC, 2 A
  • Door contact input2
  • General
  • Button14 physical buttons
  • InstallationFlush mounting
  • Indicator/
  • WeightNet weight: 1.05 kg Gross weight: 2.166 kg
  • Protective levelIP65
  • Working humidity10% to 95% (no-condensing)
  • Dimension (W × H × D)418 mm × 145 mm × 59.7 mm (16.46" × 5.71" × 2.35")
  • Battery/
  • Power supply12 VDC, 1 A
  • Application environmentOutdoor
  • Power consumption≤ 10 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
