iDS-TCM403-AI

EOL

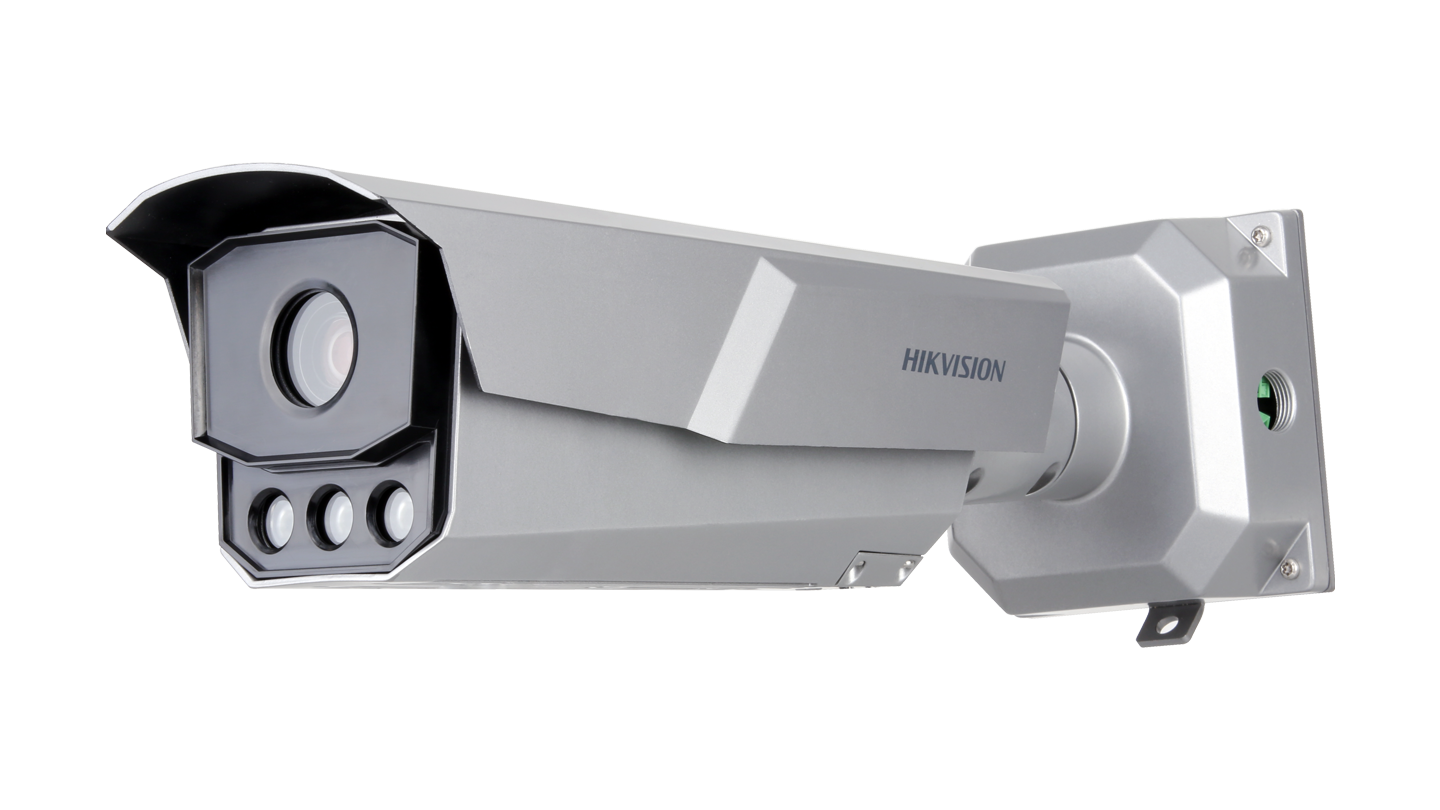

4 MP IR ANPR Smart Monitoring Camera

  • High performance ANPR bullet camera
  • High quality imaging with 4 MP resolution(1/1.8'' CMOS)
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Excellent low-light performance with DarkFighter technology
  • Motorized vari-focal lens for easy installation and monitoring
  • Efficient H.265 compression technology
  • Smart functions: supports license plate recognition (LPR), vehicle type, color, and manufacturer recognition, no-plate vehicle capture, driving direction detection, and motorcycle capture
  • Scenarios: tunnel, toll station, urban road, parking entrance
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
View Less
View more
Sales Inquiry

Available models:

iDS-TCM403-AI/0832
iDS-TCM403-AI/0411
iDS-TCM403-AI
EOL

Specification

  • Camera
  • Image Sensor1/1.8″ progressive scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Slow ShutterSupported
  • Day & NightIR cut filter
  • Lens
  • Focal Length & FOV4-11 mm/8-32 mm (Optional) 0411: Horizontal FOV: 114.7° to 41.9°; Vertical FOV: 59.4° to 23.6°; Diagonal FOV: 141.5° to 48.1° 0832: Horizontal FOV: 39.7° to 15.9°; Vertical FOV: 22.3° to 9.1°; Diagonal FOV: 45.8° to 18.1°
  • Focus Auto
  • Iris TypeDC drive
  • ApertureF1.38/F1.63-1.8
  • Illuminator
  • Built-in Supplement Light Range0411: Up to 50 m 0832: Up to 100 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Video Compression H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile/Main profile/High profile
  • H.265 TypeBaseline profile/Main profile/High profile
  • Audio
  • Audio Compression G.711/G.722.1
  • Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)
  • Network
  • ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
  • Network StorageMicro SD/TF card (128 GB), local storage and CVR, NVR, ANPR
  • ClientiVMS-8600, Hik-Central
  • Web BrowserIE7+
  • Image
  • Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
  • Day/Night SwitchAuto/Scheduled/Triggered by alarm in
  • Wide Dynamic Range (WDR)140 dB
  • Image Enhancement3D DNR
  • Picture OverlayLogo picture can be overlaid on video with 128 × 128 in 24-bit bmp format
  • Interface
  • Video OutputNetwork
  • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
  • On-board StorageBuilt-in microSD/TF card, up to 128 GB
  • AudioSupported
  • Alarm 1 input interface, 1 output interface, 2 relays
  • RS-4851 RS-485 interface
  • Reset KeySupported
  • Wiegand1 Wiegand interface
  • Event
  • Basic EventHDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
  • Road Traffic and Vehicle Detection
  • Smart FunctionLicense plate recognition Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection
  • LPR Countries/RegionsMid-East: Turkey, United Arab Emirates, Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Tunisia, Palestine, Pakistan Africa: South Africa, Kenya, Nigeria, Tanzania, Mauritius，Morocco Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia America: United States of America, Colombia, Brazil, Ecuador, Peru, Mexico Europe: Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Belarus, Uzbekistan
  • Accuracy (Under recommended installation and lighting conditions)Capture rate > 99% Driving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
  • No License Plate DetectionSupported
  • Motorcycle LPRSupported
  • Vehicle TypeCar/Van/Bus/Truck/Others
  • Vehicle ColorRed, yellow (including orange), green, blue, purple, brown, white, grey (including silver), black IR Model: Recognizable at daytime only
  • Vehicle Manufacturer65 manufacturers: HYUNDAI, TOYOTA, KIA, HONDA, VOLKSWAGEN, BENZ, NISSAN, FORD, ISUZU, BMW, CHEVROLET, MITSUBISHI, RENAULT, OPEL, SUZUKI, SKODA, DAEWOO, AUDI, MAZDA, HINO, PEUGEOT, SSANG YONG, CITROEN, FIAT, SCANIA, MAN, VOLVO, LEXUS, SEAT, LAND ROVER, DAIHATSU, UD TRUCKS, SUBARU, IVECO, MINI, JEEP, PORSCHE, CHERY, DODGE, CHRYSLER, ACURA, ALFA ROMEO, GREAT WALL, INFINITY, SMART, SAIC MAXUS, JAC, JAGUAR, JMC, LINCOLN, JMC, SAAB, FAW, YUTONG, LWE, JOYLONG, GEELY, CADILLAC, JINBEI, ANKAI, HAIMA, FOTON, KING LONG, DONGFENG, EMGRAND
  • Capture Speed Range5 to 120 km/h
  • General
  • Firmware VersionV4.2.2
  • Operating SystemLinux
  • Power12 VDC to 24 VDC ± 20%, PoE (802.3at, class 4) Max. 12 W
  • MaterialAluminum alloy
  • DimensionWith package: 428.5 × 120 × 132.8 mm
  • Weight Camera: approx. 3.12 ± 0.5 kg (6.88 ± 1.1 lb)
  • Operating ConditionTemperature: -30 °C to +70 °C (-22 °F to +158 °F) , Humidity: 95% or less (non-condensing)
  • General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
  • Approval
  • EMCCE, FCC,
  • EnvironmentRoHS
  • ProtectionIP67, IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8″ progressive scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.001 Lux @ (F1.2, AGC ON)
Shutter Time
1/25 s to 1/100,000 s
Slow Shutter
Supported
Day & Night
IR cut filter
Lens
Focal Length & FOV
4-11 mm/8-32 mm (Optional) 0411: Horizontal FOV: 114.7° to 41.9°; Vertical FOV: 59.4° to 23.6°; Diagonal FOV: 141.5° to 48.1° 0832: Horizontal FOV: 39.7° to 15.9°; Vertical FOV: 22.3° to 9.1°; Diagonal FOV: 45.8° to 18.1°
Focus
Auto
Iris Type
DC drive
Aperture
F1.38/F1.63-1.8
Illuminator
Built-in Supplement Light Range
0411: Up to 50 m 0832: Up to 100 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Sub Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Third Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Video Compression
H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile/Main profile/High profile
H.265 Type
Baseline profile/Main profile/High profile
Audio
Audio Compression
G.711/G.722.1
Audio Bit Rate
8Kbps (G.711) /16Kbps (G.722.1)
Network
Protocols
TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Network Storage
Micro SD/TF card (128 GB), local storage and CVR, NVR, ANPR
Client
iVMS-8600, Hik-Central
Web Browser
IE7+
Image Settings
Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
Day/Night Switch
Auto/Scheduled/Triggered by alarm in
Wide Dynamic Range (WDR)
140 dB
Image Enhancement
3D DNR
Picture Overlay
Logo picture can be overlaid on video with 128 × 128 in 24-bit bmp format
Interface
Video Output
Network
Ethernet Interface
1 RJ45 10M/100M/1000M Ethernet interface
On-board Storage
Built-in microSD/TF card, up to 128 GB
Audio
Supported
Alarm
1 input interface, 1 output interface, 2 relays
RS-485
1 RS-485 interface
Reset Key
Supported
Wiegand
1 Wiegand interface
Event
Basic Event
HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
Road Traffic and Vehicle Detection
Smart Function
License plate recognition Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection
LPR Countries/Regions
Mid-East: Turkey, United Arab Emirates, Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Tunisia, Palestine, Pakistan Africa: South Africa, Kenya, Nigeria, Tanzania, Mauritius，Morocco Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia America: United States of America, Colombia, Brazil, Ecuador, Peru, Mexico Europe: Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Belarus, Uzbekistan
Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99% Driving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
No License Plate Detection
Supported
Motorcycle LPR
Supported
Vehicle Type
Car/Van/Bus/Truck/Others
Vehicle Color
Red, yellow (including orange), green, blue, purple, brown, white, grey (including silver), black IR Model: Recognizable at daytime only
Vehicle Manufacturer
65 manufacturers: HYUNDAI, TOYOTA, KIA, HONDA, VOLKSWAGEN, BENZ, NISSAN, FORD, ISUZU, BMW, CHEVROLET, MITSUBISHI, RENAULT, OPEL, SUZUKI, SKODA, DAEWOO, AUDI, MAZDA, HINO, PEUGEOT, SSANG YONG, CITROEN, FIAT, SCANIA, MAN, VOLVO, LEXUS, SEAT, LAND ROVER, DAIHATSU, UD TRUCKS, SUBARU, IVECO, MINI, JEEP, PORSCHE, CHERY, DODGE, CHRYSLER, ACURA, ALFA ROMEO, GREAT WALL, INFINITY, SMART, SAIC MAXUS, JAC, JAGUAR, JMC, LINCOLN, JMC, SAAB, FAW, YUTONG, LWE, JOYLONG, GEELY, CADILLAC, JINBEI, ANKAI, HAIMA, FOTON, KING LONG, DONGFENG, EMGRAND
Capture Speed Range
5 to 120 km/h
General
Firmware Version
V4.2.2
Operating System
Linux
Power
12 VDC to 24 VDC ± 20%, PoE (802.3at, class 4) Max. 12 W
Material
Aluminum alloy
Dimension
With package: 428.5 × 120 × 132.8 mm
Weight
Camera: approx. 3.12 ± 0.5 kg (6.88 ± 1.1 lb)
Operating Condition
Temperature: -30 °C to +70 °C (-22 °F to +158 °F) , Humidity: 95% or less (non-condensing)
General Function
One-key reset, three streams, heartbeat, password protection, watermark
Approval
EMC
CE, FCC,
Environment
RoHS
Protection
IP67, IK10
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8″ progressive scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Slow ShutterSupported
  • Day & NightIR cut filter
Lens
  • Focal Length & FOV4-11 mm/8-32 mm (Optional) 0411: Horizontal FOV: 114.7° to 41.9°; Vertical FOV: 59.4° to 23.6°; Diagonal FOV: 141.5° to 48.1° 0832: Horizontal FOV: 39.7° to 15.9°; Vertical FOV: 22.3° to 9.1°; Diagonal FOV: 45.8° to 18.1°
  • Focus Auto
  • Iris TypeDC drive
  • ApertureF1.38/F1.63-1.8
Illuminator
  • Built-in Supplement Light Range0411: Up to 50 m 0832: Up to 100 m
  • IR Wavelength850 nm
Video
  • Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Sub Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Video Compression H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile/Main profile/High profile
  • H.265 TypeBaseline profile/Main profile/High profile
Audio
  • Audio Compression G.711/G.722.1
  • Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)
Network
  • ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
  • Network StorageMicro SD/TF card (128 GB), local storage and CVR, NVR, ANPR
  • ClientiVMS-8600, Hik-Central
  • Web BrowserIE7+
  • Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
  • Day/Night SwitchAuto/Scheduled/Triggered by alarm in
  • Wide Dynamic Range (WDR)140 dB
  • Image Enhancement3D DNR
  • Picture OverlayLogo picture can be overlaid on video with 128 × 128 in 24-bit bmp format
Interface
  • Video OutputNetwork
  • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
  • On-board StorageBuilt-in microSD/TF card, up to 128 GB
  • AudioSupported
  • Alarm 1 input interface, 1 output interface, 2 relays
  • RS-4851 RS-485 interface
  • Reset KeySupported
  • Wiegand1 Wiegand interface
Event
  • Basic EventHDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
Road Traffic and Vehicle Detection
  • Smart FunctionLicense plate recognition Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection
  • LPR Countries/RegionsMid-East: Turkey, United Arab Emirates, Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Tunisia, Palestine, Pakistan Africa: South Africa, Kenya, Nigeria, Tanzania, Mauritius，Morocco Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia America: United States of America, Colombia, Brazil, Ecuador, Peru, Mexico Europe: Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Belarus, Uzbekistan
  • Accuracy (Under recommended installation and lighting conditions)Capture rate > 99% Driving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
  • No License Plate DetectionSupported
  • Motorcycle LPRSupported
  • Vehicle TypeCar/Van/Bus/Truck/Others
  • Vehicle ColorRed, yellow (including orange), green, blue, purple, brown, white, grey (including silver), black IR Model: Recognizable at daytime only
  • Vehicle Manufacturer65 manufacturers: HYUNDAI, TOYOTA, KIA, HONDA, VOLKSWAGEN, BENZ, NISSAN, FORD, ISUZU, BMW, CHEVROLET, MITSUBISHI, RENAULT, OPEL, SUZUKI, SKODA, DAEWOO, AUDI, MAZDA, HINO, PEUGEOT, SSANG YONG, CITROEN, FIAT, SCANIA, MAN, VOLVO, LEXUS, SEAT, LAND ROVER, DAIHATSU, UD TRUCKS, SUBARU, IVECO, MINI, JEEP, PORSCHE, CHERY, DODGE, CHRYSLER, ACURA, ALFA ROMEO, GREAT WALL, INFINITY, SMART, SAIC MAXUS, JAC, JAGUAR, JMC, LINCOLN, JMC, SAAB, FAW, YUTONG, LWE, JOYLONG, GEELY, CADILLAC, JINBEI, ANKAI, HAIMA, FOTON, KING LONG, DONGFENG, EMGRAND
  • Capture Speed Range5 to 120 km/h
General
  • Firmware VersionV4.2.2
  • Operating SystemLinux
  • Power12 VDC to 24 VDC ± 20%, PoE (802.3at, class 4) Max. 12 W
  • MaterialAluminum alloy
  • DimensionWith package: 428.5 × 120 × 132.8 mm
  • Weight Camera: approx. 3.12 ± 0.5 kg (6.88 ± 1.1 lb)
  • Operating ConditionTemperature: -30 °C to +70 °C (-22 °F to +158 °F) , Humidity: 95% or less (non-condensing)
  • General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
Approval
  • EMCCE, FCC,
  • EnvironmentRoHS
  • ProtectionIP67, IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.2.5_200701
Applied to:
iDS-TCM403-AI/0832
iDS-TCM403-AI/0411

Download Center

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Hotline Services
Contact Sales
Technical Support
Online Service
Subscribe Newsletter
Where to Buy
Hotline Services
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
