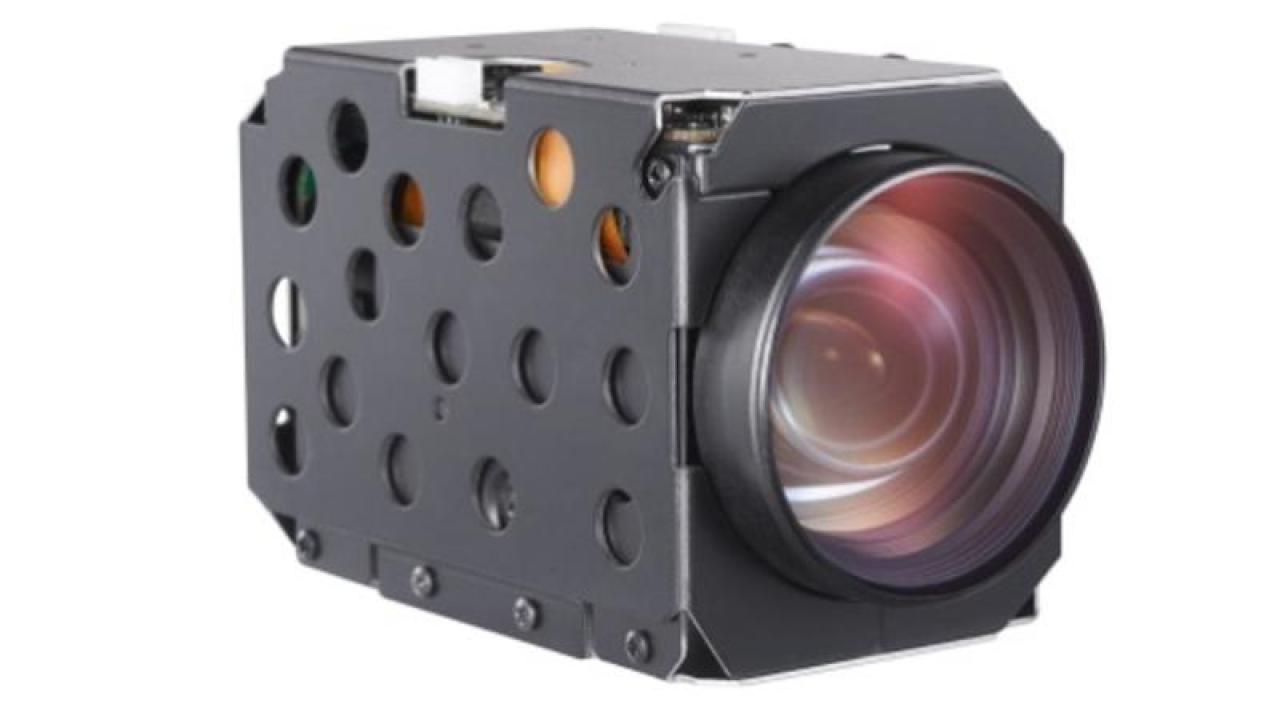

2 MP 25X Powered by DarkFighter Network Zoom Camera Module

2MP 1/2.8″ progressive scan CMOS
Up to 1920×1080 resolution
25 × optical zoom; focal length 4.8 mm to 120 mm
Min. illumination: color: 0.05Lux @(F1.6, AGC ON), B/W: 0.01Lux @(F1.6, AGC ON)
Zoom speed: 3.6 s
IR cut filter with auto switch
3D DNR, low bit rate, digital WDR
Small size and low power consumption
Easy to connect to speed domes and PTZ cameras

View Less

Data Sheet

Available models:

DS-2ZMN2507(C)

EOL

Specification
Resources
Accessories

Data Sheet

Camera Module
Image Sensor1/2.8" progressive scan CMOS
Min. Illuminationcolor: 0.05Lux @ (F1.6, AGC ON); B/W: 0.01Lux @(F1.6, AGC ON)
Resolution and Frame Ratemain stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps (1920×1080, 1280×960, 1280×720); sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480, 640×480, 352×240)
Video CompressionH.264, H.265
Audio CompressionG.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM
White Balancemanual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp
Gain Controlauto, manual
SNR> 52dB
3D DNRyes
BLCyes
Regional Focusyes
Shutter1/1s to 1/30,000s
Day & NightAuto/Color/BW/Scheduled-Switch/Triggered by Alarm Input
Digital Zoom12 ×
Focusauto, semi-auto, manual
Regional Exposureyes
Video Bit Rate32Kbps to 16Mbps
Heartbeatyes
Day/Night SwitchIR Cut Filter
Exposure Mode auto, iris priority, shutter priority, manual

Lens
Focal Length4.8 mm to 120 mm, 25 × optical
Zoom Speedapprox. 3.6 s (optical, wide-tele)
Horizontal FOV57.6° to 2.5° (wide-tele)
Min. Working Distance100 mm to 1500 mm (wide-tele)
ApertureF1.6 to F3.5

Function
Image EnhancementWDR, HLC
Smart Encodinglow bit rate, ROI
Exception Detectionillegal login
Power-off Memoryyes
Smart Detectionmotion detection, video tampering detection, audio exception detection, intrusion detection, line crossing detection

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
APIopen-ended, support ONVIF and ISAPI, support HIKVISION SDK and third-party management platform
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
Simultaneous Live Viewup to 20 channels
Userup to 32 users; 3 levels: administrator, operator, and user
Security Measuresuser authentication (ID and PW); host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control

Interface
Power InterfaceDC12V ±10%
Communication Interface10 M/100 M ethernet interface
Audio I/O1-ch audio input and 1-ch audio output
Alarm I/O1-ch alarm input and 1-ch alarm output
Video Outputyes
SDI Outputno
RS-485yes
On-board Storageyes
Interface36pin FFC (including network interface, RS485, RS232, CVBS, SDHC, alarm in/out, line in/out, power supply)
CommunicationRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol

General
Power Consumptionstatic: 2.5W; dynamic: 4.5W
Operating Conditionstemperature: -10 °C to 60 °C (14°F to 140°F); humidity: ＜90%
Dimensions50×60×88.6mm
Weight266g

Camera Module

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

color: 0.05Lux @ (F1.6, AGC ON); B/W: 0.01Lux @(F1.6, AGC ON)

Resolution and Frame Rate

main stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps (1920×1080, 1280×960, 1280×720); sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480, 640×480, 352×240)

Video Compression

H.264, H.265

Audio Compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM

White Balance

manual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp

Gain Control

auto, manual

SNR

> 52dB

3D DNR

yes

BLC

yes

Regional Focus

yes

Shutter

1/1s to 1/30,000s

Day & Night

Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input

Digital Zoom

12 ×

Focus

auto, semi-auto, manual

Regional Exposure

yes

Video Bit Rate

32Kbps to 16Mbps

Heartbeat

yes

Day/Night Switch

IR Cut Filter

Exposure Mode

auto, iris priority, shutter priority, manual

Lens

Focal Length

4.8 mm to 120 mm, 25 × optical

Zoom Speed

approx. 3.6 s (optical, wide-tele)

Horizontal FOV

57.6° to 2.5° (wide-tele)

Min. Working Distance

100 mm to 1500 mm (wide-tele)

Aperture

F1.6 to F3.5

Function

Image Enhancement

WDR, HLC

Smart Encoding

low bit rate, ROI

Exception Detection

illegal login

Power-off Memory

yes

Smart Detection

motion detection, video tampering detection, audio exception detection, intrusion detection, line crossing detection

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour

API

open-ended, support ONVIF and ISAPI, support HIKVISION SDK and third-party management platform

Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Simultaneous Live View

up to 20 channels

User

up to 32 users; 3 levels: administrator, operator, and user

Security Measures

user authentication (ID and PW); host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control

Interface

Power Interface

DC12V ±10%

Communication Interface

10 M/100 M ethernet interface

Audio I/O

1-ch audio input and 1-ch audio output

Alarm I/O

1-ch alarm input and 1-ch alarm output

Video Output

yes

SDI Output

RS-485

yes

On-board Storage

yes

Interface

36pin FFC (including network interface, RS485, RS232, CVBS, SDHC, alarm in/out, line in/out, power supply)

Communication

RS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol

General

Power Consumption

static: 2.5W; dynamic: 4.5W

Operating Conditions

temperature: -10 °C to 60 °C (14°F to 140°F); humidity: ＜90%

Dimensions

50×60×88.6mm

Weight

266g
