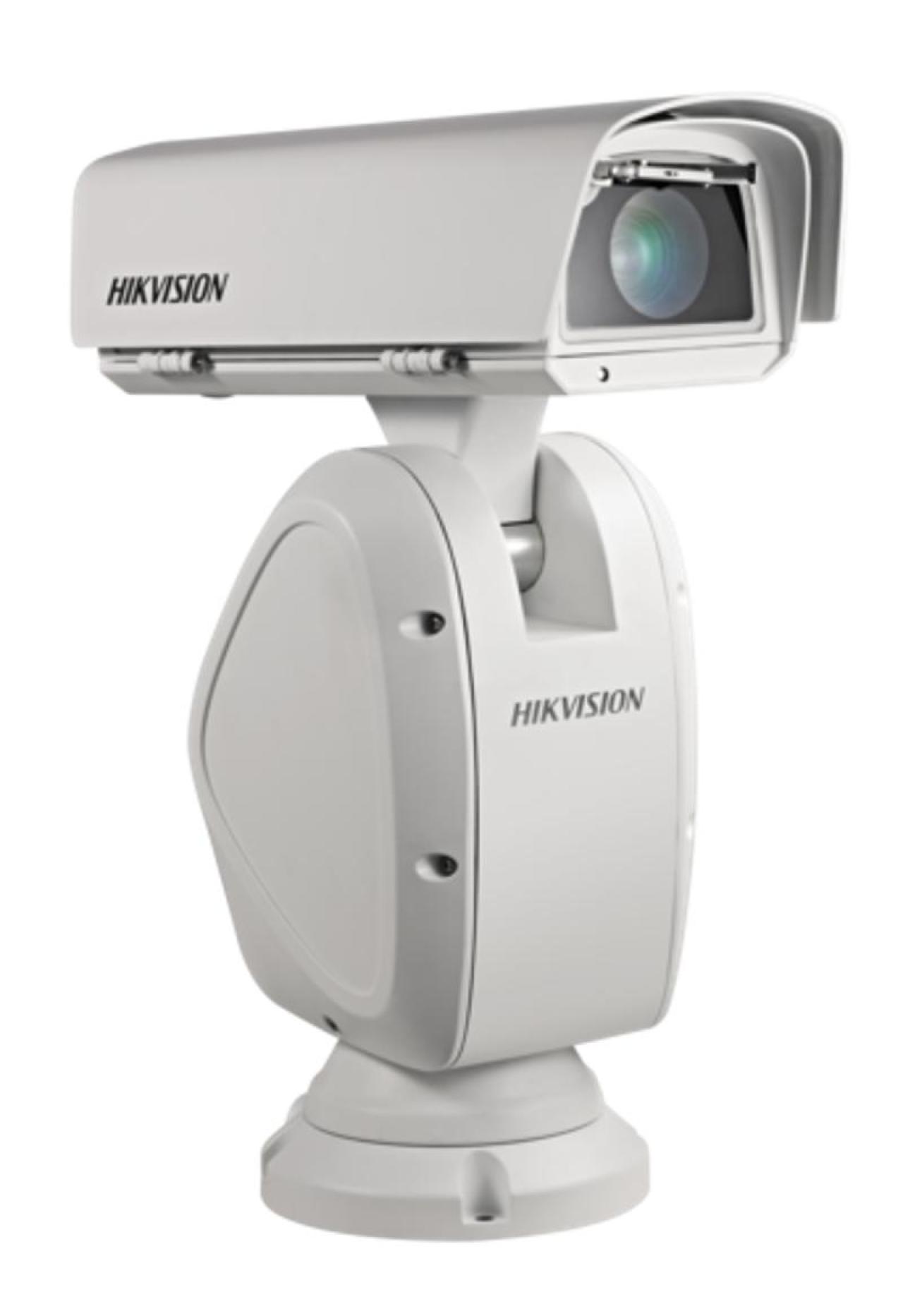

9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON)
Rain-sensing auto wiper
50× optical zoom, 16×digital zoom
140dB WDR, 3D DNR, HLC, BLC
24 VAC
Support H.265+/H.265 video compression

View Less

Data Sheet

Available models:

DS-2DY9250X-A(T5)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationB/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON)
Shutter Speed1/1s ~ 1/30,000s
Day & NightICR
Zoom50 × optical, 16 × digital

Lens
Focal Length6.0 mm to 300 mm, 50 × Optical
FOVHorizontal field of view: 56.6° to 1.4°(wide-tele) Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.6° (wide-tele)
Focussemi-auto||manual||auto
ApertureF1.2
Zoom Speedapprox. 6.3 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)+40° to -90°
Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Park Actionpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memoryyes

Video
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265, H.264, MJPEG
H.264 Typebaseline profile, main profile, high profile
H.265 Typemain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Wide Dynamic Range (WDR)140 dB WDR
Image StabilizationEIS; Built-in gyroscope to improve EIS performance.
Image EnhancementBLC, HLC, 3D DNR
Privacy Maskup to 24 masks, polygon region , mosaic mask , mask color configurable
Regional Focusyes
Regional Exposureyes

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm7 alarm inputs, 2 alarm outputs
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Basic Eventmotion detection, video tampering alarm, alarm input, alarm output, exception
Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart Trackingmanual tracking, event tracking

Deep Learning Function
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General
Power24 VAC ± 25%, max. 100 W
Dimension180 mm × 390 mm × 491 mm (7.09" × 15.35" × 19.33")
WeightApprox. 13 kg (28.66 lb)
MaterialAluminum alloy ADC12
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
General Functionmirror, password protection, watermark, IP address filter
Vandal-proof Alarmyes
WiperYes. Rain-sensing auto control
Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor

1/1.8＂ progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

B/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON)

Shutter Speed

1/1s ~ 1/30,000s

Day & Night

ICR

Zoom

50 × optical, 16 × digital

Lens

Focal Length

6.0 mm to 300 mm, 50 × Optical

FOV

Horizontal field of view: 56.6° to 1.4°(wide-tele) Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.6° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

F1.2

Zoom Speed

approx. 6.3 s

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

+40° to -90°

Pan Speed

pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Tilt Speed

tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols

Pattern Scan

4 pattern scans

Park Action

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory

yes

Video

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265, H.264, MJPEG

H.264 Type

baseline profile, main profile, high profile

H.265 Type

main profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+


Wide Dynamic Range (WDR)

140 dB WDR

Image Stabilization

EIS; Built-in gyroscope to improve EIS performance.

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

up to 24 masks, polygon region , mosaic mask , mask color configurable

Regional Focus

yes

Regional Exposure

yes

Interface

Ethernet Interface

1 RJ45 10 M/100 M Ethernet Interface

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarm

7 alarm inputs, 2 alarm outputs

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

Basic Event

motion detection, video tampering alarm, alarm input, alarm output, exception

Smart Event

intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Smart Tracking

manual tracking, event tracking

Deep Learning Function

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General

Power

24 VAC ± 25%, max. 100 W

Dimension

180 mm × 390 mm × 491 mm (7.09" × 15.35" × 19.33")

Weight

Approx. 13 kg (28.66 lb)

Material

Aluminum alloy ADC12

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

General Function

mirror, password protection, watermark, IP address filter

Vandal-proof Alarm

yes

Wiper

Yes. Rain-sensing auto control

Language

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

Protection

IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
