DS-2CD1H53G0-IZ

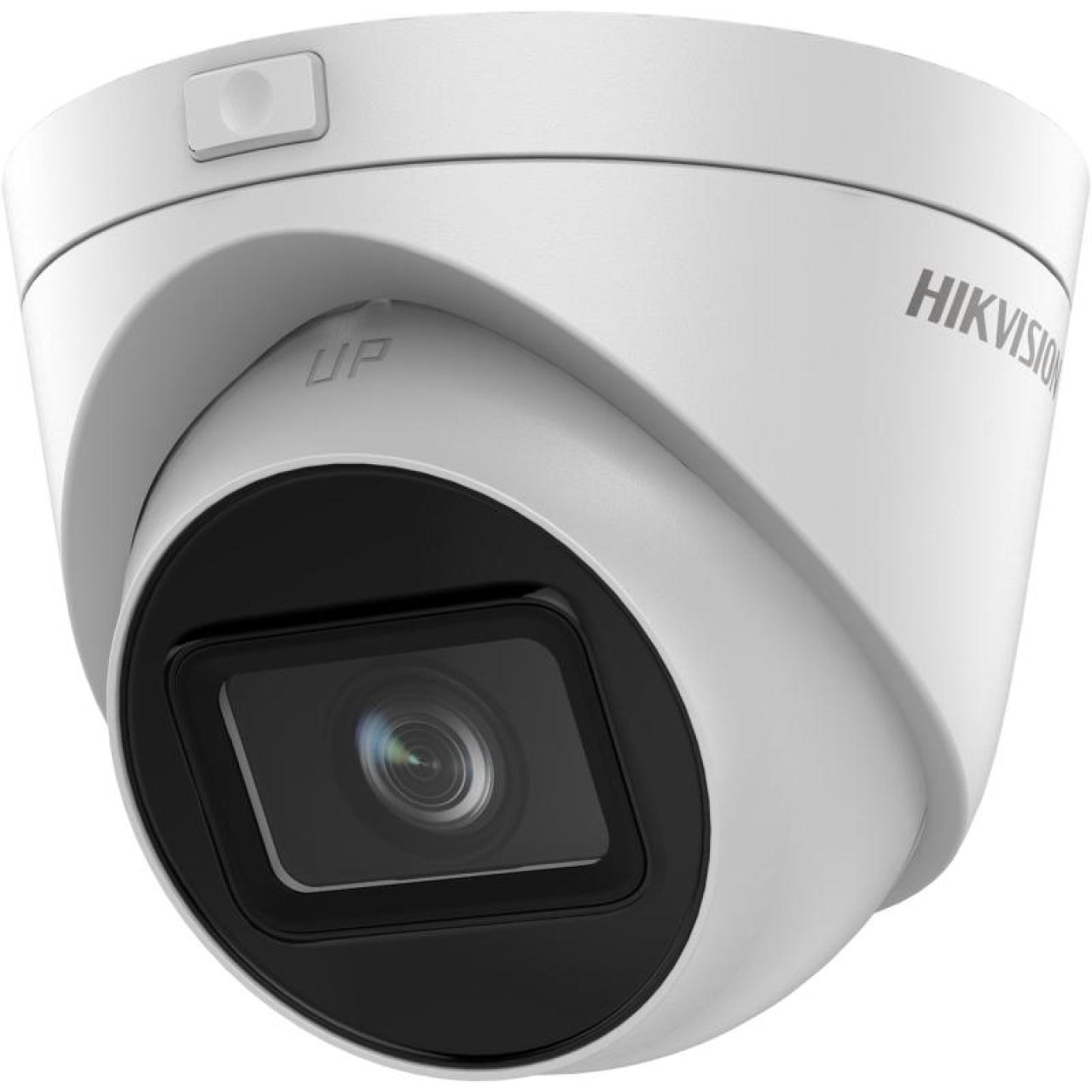

5 MP Motorized Varifocal Turret Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Up to 256 GB memory card slot for storage
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range

View Less
View more
Sales Inquiry

Available models:

DS-2CD1H53G0-IZ(2.8-12mm)(C)
DS-2CD1H53G0-IZS(2.8-12mm)(C)
DS-2CD1H53G0-IZ

Specification

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution2560 × 1920
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
  • Lens
  • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-S: 8 kHz/16 kHz
  • Environment Noise Filtering-S: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input,1 output (max. 12 VDC, 30 mA)
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering, exception
  • LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
  • General
  • Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
  • MaterialCover: plastic, main body: metal
  • DimensionØ129.4 mm × 116.4 mm (Ø5.1" × 4.6")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 590 g (1.3 lb.)
  • With Package WeightApprox. 900 g (2.0 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
  • SafetyUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/IEC 60950-1: 2005
  • EnvironmentCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
2560 × 1920
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
F1.6
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Compression
-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
-S: 8 kHz/16 kHz
Environment Noise Filtering
-S: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB
Audio
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input,1 output (max. 12 VDC, 30 mA)
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Material
Cover: plastic, main body: metal
Dimension
Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 590 g (1.3 lb.)
With Package Weight
Approx. 900 g (2.0 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution2560 × 1920
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
  • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm
Video
  • Main Stream50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Region of Interest (ROI)1 fixed region for main stream
Audio
  • Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-S: 8 kHz/16 kHz
  • Environment Noise Filtering-S: Yes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input,1 output (max. 12 VDC, 30 mA)
  • Reset KeyYes
Event
  • Basic Event Motion detection, video tampering, exception
  • LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
  • Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
  • MaterialCover: plastic, main body: metal
  • DimensionØ129.4 mm × 116.4 mm (Ø5.1" × 4.6")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 590 g (1.3 lb.)
  • With Package WeightApprox. 900 g (2.0 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
  • EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
  • SafetyUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/IEC 60950-1: 2005
  • EnvironmentCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.23_241008
Applied to:
DS-2CD1H53G0-IZ(2.8-12mm)(C)
DS-2CD1H53G0-IZS(2.8-12mm)(C)
