Solar Power Modules

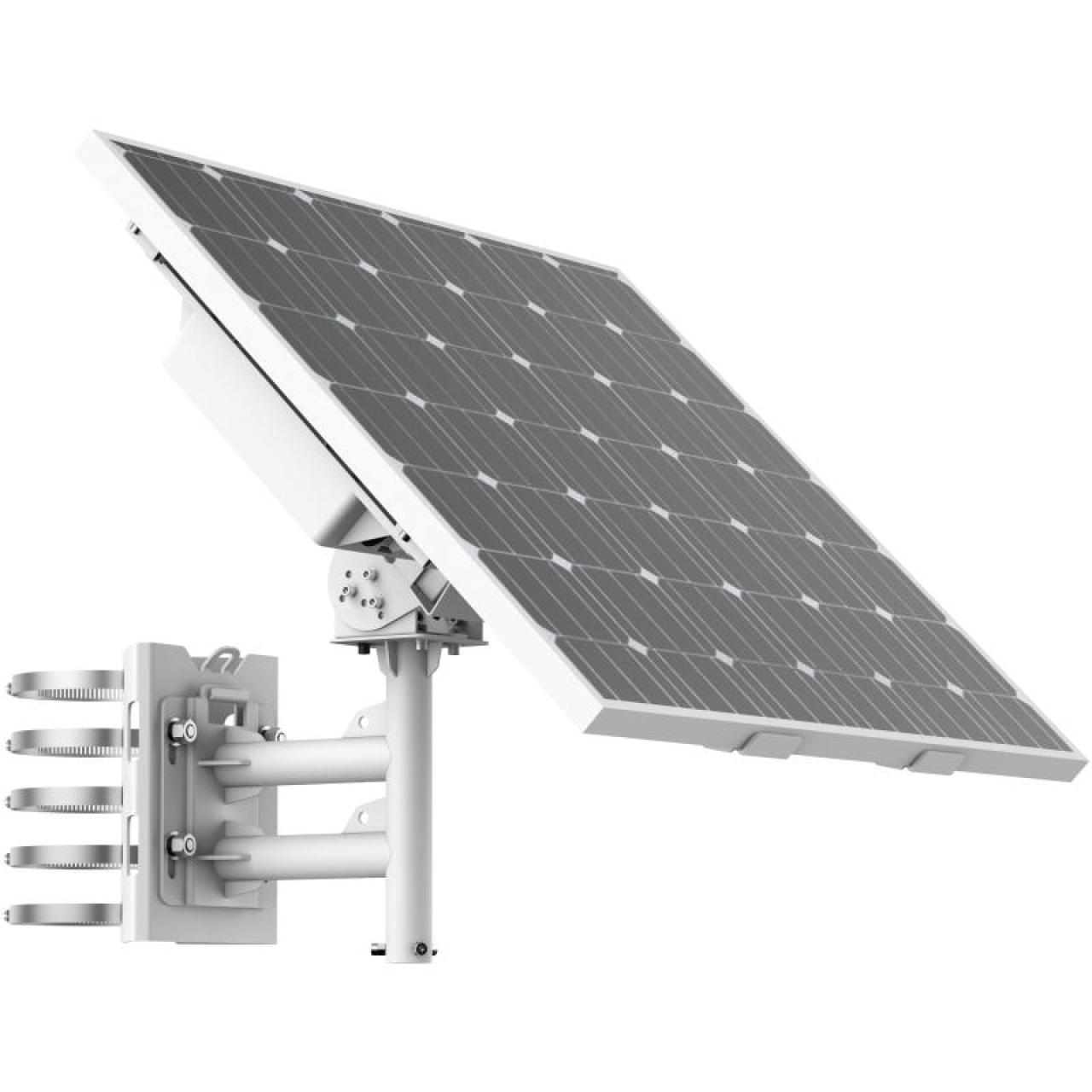

80 W photovoltaic panel, 360 Wh chargeable lithium battery
Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
Water and dust resistant (IP66)

View Less

Data Sheet

Available models:

DS-2XS6K01-C36S80

Specification
Resources
Accessories

Data Sheet

Interface
RS-4851 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
Power Output9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs

General
Dimension640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)
Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30")
WeightApprox. 24 kg (52.9 lb.)
With Package WeightApprox. 30.005 kg (66.1 lb.)

Battery
Battery TypeLithium
Capacity360 Wh (90 Wh for each battery)
Battery Voltage 10.8 V
Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery LifeMore than 500 cycles
Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval
EMCCE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SafetyCB (IEC 62368-1:2014+A11)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionCamera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance

Interface

RS-485

1 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )

Power Output

9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs

General

Dimension

640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)

Package Dimension

862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30")

Weight

Approx. 24 kg (52.9 lb.)

With Package Weight

Approx. 30.005 kg (66.1 lb.)

Battery

Battery Type

Lithium

Capacity

360 Wh (90 Wh for each battery)

Battery Voltage

10.8 V

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Battery Life

More than 500 cycles

Battery Weight

Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

EMC

CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)

Safety

CB (IEC 62368-1:2014+A11)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Camera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance

Interface

RS-4851 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
Power Output9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs

General

Dimension640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)
Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30")
WeightApprox. 24 kg (52.9 lb.)
With Package WeightApprox. 30.005 kg (66.1 lb.)

Battery

Battery TypeLithium
Capacity360 Wh (90 Wh for each battery)
Battery Voltage 10.8 V
Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery LifeMore than 500 cycles
Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

EMCCE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SafetyCB (IEC 62368-1:2014+A11)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionCamera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance
