DS-2XM6726G0-I(D)(S)(M)(/ND)

EOL

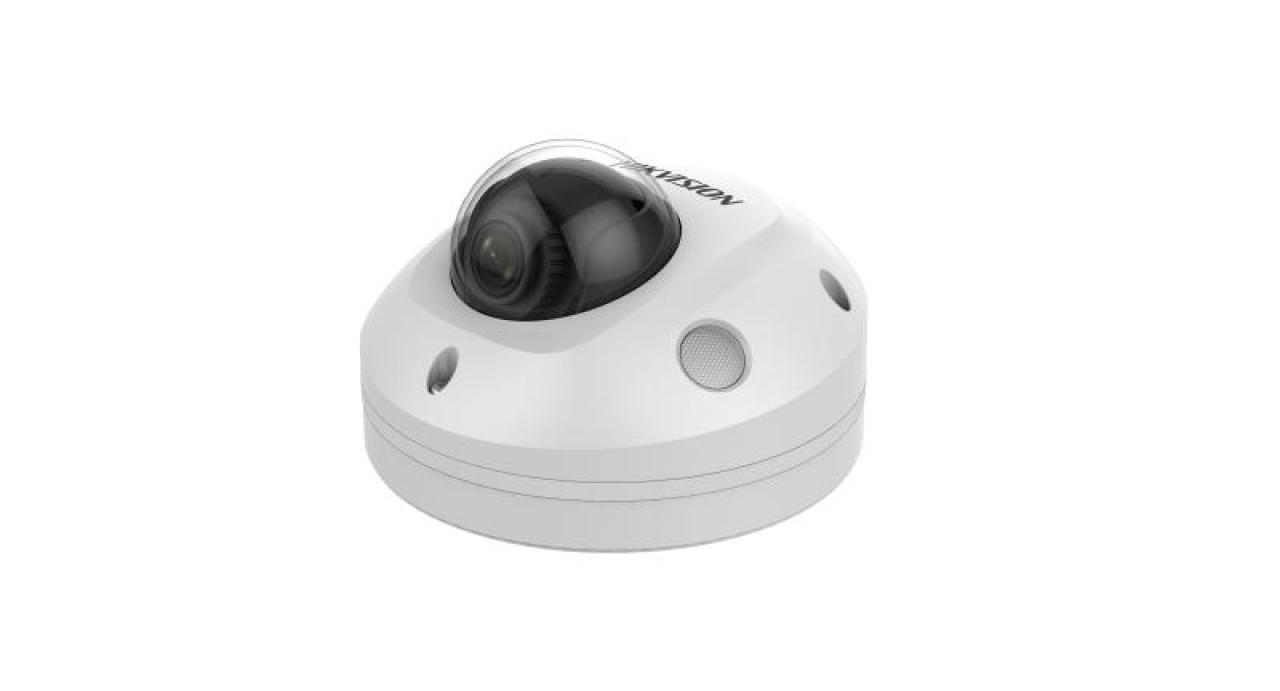

Mobile Mini Dome Network Camera

  • High quality imaging with 2 MP resolution
  • 2/2.8/4/6/8 mm fixed lens
  • Three streams
  • Clear imaging against strong back light due to 120 dB WDR technology
  • 4 behavior analysis and face detection
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal resistant(IK08)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XM6726G0-IDS(2.0mm)
DS-2XM6726G0-IS/ND(2.8mm)
DS-2XM6726G0-IDM(6mm)
DS-2XM6726G0-IM/ND(4mm)
DS-2XM6726G0-IDS(8mm)
DS-2XM6726G0-IS/ND(2.0mm)
DS-2XM6726G0-IS/ND(4mm)
DS-2XM6726G0-IM/ND(2.0mm)
DS-2XM6726G0-IM/ND(2.8mm)
DS-2XM6726G0-IM/ND(6mm)
DS-2XM6726G0-I(D)(S)(M)(/ND)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.002 Lux @ (F1.6, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lens
  • Lens Type2.0/2.8/4/6/8 mm fixed lens
  • Focal Length & FOV2 mm, horizontal FOV 132.8°, vertical FOV 77.6°, diagonal FOV 151.5° 2.8 mm, horizontal FOV 108°, vertical FOV 59.3°, diagonal FOV 128.9° 4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98° 6 mm, horizontal FOV 52.7°, vertical FOV 30.3°, diagonal FOV 60.1° 8 mm, horizontal FOV 40.9°, vertical FOV 22.5°, diagonal FOV 47.4°
  • Lens MountM12
  • Aperture2 mm, F2.25, 2.8/4/6 mm, F2.0, 8 mm, F1.6
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StoragemicroSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10M/100M Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Audio1 built-in mic, mono sound
  • Alarm -S: 1 input, 1 output (12 VDC, 30 mA)
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, up to 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, up to 1 region configurable Object removal detection, up to 1 region configurable Face detection: detects faces and upload images
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • General
  • Power-IDS: 24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug -IS/ND: PoE: 802.3af, Class 3, 36V to 57V, 0.30 A to 0.20 A, max. 7.5W -IDM: 24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, two-core molex -IM/ND: PoE: 802.3af, Class 3, 36V to 57V, 0.30 A to 0.20 A, max. 7.5W
  • DimensionØ110 mm × 57.4 mm (4.3" × 2.26"), with base: Ø110 mm × 69.4 mm (4.3" × 2.7")
  • Package Dimension252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
  • WeightApprox. 460 g (1 lb.)
  • With Package WeightApprox. 900 g (2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy mask
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67(IEC 60529-2013), IK10(IEC 62262: 2002)
  • Automotive and RailwayEN 50155-2017: EN 50155: 2017 EN 50121-3-2: 2016 IEC 60068-2-1: 2007 IEC 60068-2-2: 2007 IEC 60068-2-30: 2005 IEC 61373: 2010 EN 45545: EN 45545-2:2013+A1: 2015 E-MARK: ECR R10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.002 Lux @ (F1.6, AGC ON)
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
2.0/2.8/4/6/8 mm fixed lens
Focal Length & FOV
2 mm, horizontal FOV 132.8°, vertical FOV 77.6°, diagonal FOV 151.5° 2.8 mm, horizontal FOV 108°, vertical FOV 59.3°, diagonal FOV 128.9° 4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98° 6 mm, horizontal FOV 52.7°, vertical FOV 30.3°, diagonal FOV 60.1° 8 mm, horizontal FOV 40.9°, vertical FOV 22.5°, diagonal FOV 47.4°
Lens Mount
M12
Aperture
2 mm, F2.25, 2.8/4/6 mm, F2.0, 8 mm, F1.6
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub stream
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
microSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10M/100M Ethernet port
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio
1 built-in mic, mono sound
Alarm
-S: 1 input, 1 output (12 VDC, 30 mA)
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, up to 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, up to 1 region configurable Object removal detection, up to 1 region configurable Face detection: detects faces and upload images
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
General
Power
-IDS: 24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug -IS/ND: PoE: 802.3af, Class 3, 36V to 57V, 0.30 A to 0.20 A, max. 7.5W -IDM: 24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, two-core molex -IM/ND: PoE: 802.3af, Class 3, 36V to 57V, 0.30 A to 0.20 A, max. 7.5W
Dimension
Ø110 mm × 57.4 mm (4.3" × 2.26"), with base: Ø110 mm × 69.4 mm (4.3" × 2.7")
Package Dimension
252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
Weight
Approx. 460 g (1 lb.)
With Package Weight
Approx. 900 g (2 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67(IEC 60529-2013), IK10(IEC 62262: 2002)
Automotive and Railway
EN 50155-2017: EN 50155: 2017 EN 50121-3-2: 2016 IEC 60068-2-1: 2007 IEC 60068-2-2: 2007 IEC 60068-2-30: 2005 IEC 61373: 2010 EN 45545: EN 45545-2:2013+A1: 2015 E-MARK: ECR R10
