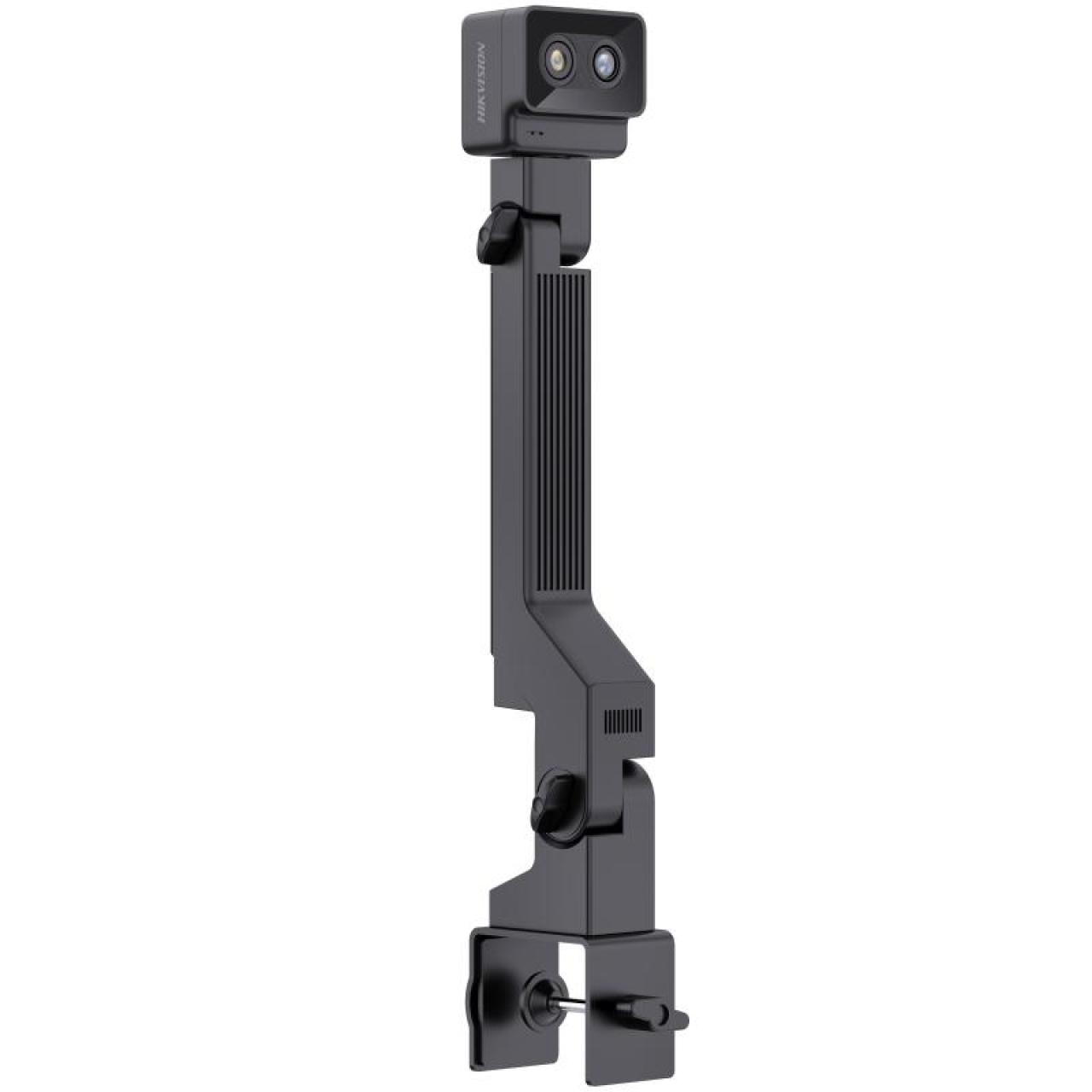

Operations Recording Dual-Lens Camera

  • High quality imaging with 8 MP and 2MP resolution
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Built-in microphone for real-time audio security

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD6F82G0-S(4mm/8mm)
DS-2CD6F82G0-S(2.8mm/6mm)
DS-2CD6F82G0-S
Data Sheet

Specification

  • Camera
  • Image SensorChannel 1: 1/2.7" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationChannel 1: Color: 0.002 Lux @ (F1.0, AGC ON), Channel 2: 0.003 Lux @(F1.2, AGC ON)
  • Shutter Time1 s to 1/100,000 s
  • Lens
  • Focal Length & FOV4/8 mm: Channel 1: horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1° Channel 2: horizontal FOV 37.7°, vertical FOV 21°, diagonal FOV 43.5° 2.8/6 mm: Channel 1: horizontal FOV 106.1°, vertical FOV 56.8°, diagonal FOV 126.5° Channel 2: horizontal FOV 50.8°, vertical FOV 27.6°, diagonal FOV 59°
  • Iris TypeFixed
  • ApertureChannel 1: F6.0, Channel 2: F1.0
  • DORI
  • DORID: 82.2 m, O: 32.6 m, R: 16.4 m, I: 8.2 m
  • Video
  • Main StreamChannel 1: 50 Hz: 20 fps (1920 × 1080) 60 Hz: 20 fps (1920 × 1080) Channel 2: 50 Hz: 25 fps (3840 × 2160) 60 Hz: 24 fps (3840 × 2160)
  • Video Compression Main stream: H.265/H.264
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for Main Stream
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF,ISAPI,SDK,ISUP
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • Network StorageNAS (NFS, SMB/CIFS),NVR
  • ClientiVMS-4200,Hik-Connect,HCP
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Settingssaturation,brightness,contrast,sharpness,adjustable by client software or web browser
  • Day/Night SwitchDay
  • Image EnhancementBLC,HLC,3D DNR,Distortion Correction
  • Wide Dynamic Range (WDR)Channel 1: 120dB; Channel 2: Digital WDR
  • Privacy Mask8 rectangular privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone1 built-in microphone
  • Reset KeyYes
  • Event
  • Basic Event Motion detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording
  • General
  • Power12 VDC ± 25%, 0.46 A, max. 5.5 W,Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 8.4W
  • MaterialMain body: Aluminum Alloy+plastic
  • Dimension457.8 mm × 72.9 mm × 72 mm (18.02" × 2.87" × 2.83")
  • Package Dimension547 mm × 146 mm × 109 mm (21.54" × 5.75" × 4.29")
  • WeightApprox. 555 g (1.22 lb.)
  • With Package WeightApprox. 920 g (2.03 lb.)
  • Storage Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Functionmirror
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • SafetyCB: IEC 62368-1: 2014, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
Channel 1: 1/2.7" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Channel 1: Color: 0.002 Lux @ (F1.0, AGC ON), Channel 2: 0.003 Lux @(F1.2, AGC ON)
Shutter Time
1 s to 1/100,000 s
Lens
Focal Length & FOV
4/8 mm: Channel 1: horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1° Channel 2: horizontal FOV 37.7°, vertical FOV 21°, diagonal FOV 43.5° 2.8/6 mm: Channel 1: horizontal FOV 106.1°, vertical FOV 56.8°, diagonal FOV 126.5° Channel 2: horizontal FOV 50.8°, vertical FOV 27.6°, diagonal FOV 59°
Iris Type
Fixed
Aperture
Channel 1: F6.0, Channel 2: F1.0
DORI
DORI
D: 82.2 m, O: 32.6 m, R: 16.4 m, I: 8.2 m
Video
Main Stream
Channel 1: 50 Hz: 20 fps (1920 × 1080) 60 Hz: 20 fps (1920 × 1080) Channel 2: 50 Hz: 25 fps (3840 × 2160) 60 Hz: 24 fps (3840 × 2160)
Video Compression
Main stream: H.265/H.264
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for Main Stream
Video Bit Rate
32 Kbps to 16 Mbps
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
Simultaneous Live View
Up to 20 channels
API
ONVIF,ISAPI,SDK,ISUP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS),NVR
Client
iVMS-4200,Hik-Connect,HCP
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Day/Night Switch
Day
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction
Wide Dynamic Range (WDR)
Channel 1: 120dB; Channel 2: Digital WDR
Privacy Mask
8 rectangular privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
1 built-in microphone
Reset Key
Yes
Event
Basic Event
Motion detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording
General
Power
12 VDC ± 25%, 0.46 A, max. 5.5 W,Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 8.4W
Material
Main body: Aluminum Alloy+plastic
Dimension
457.8 mm × 72.9 mm × 72 mm (18.02" × 2.87" × 2.83")
Package Dimension
547 mm × 146 mm × 109 mm (21.54" × 5.75" × 4.29")
Weight
Approx. 555 g (1.22 lb.)
With Package Weight
Approx. 920 g (2.03 lb.)
Storage Conditions
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
mirror
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1: 2014, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image SensorChannel 1: 1/2.7" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationChannel 1: Color: 0.002 Lux @ (F1.0, AGC ON), Channel 2: 0.003 Lux @(F1.2, AGC ON)
  • Shutter Time1 s to 1/100,000 s
Lens
  • Focal Length & FOV4/8 mm: Channel 1: horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1° Channel 2: horizontal FOV 37.7°, vertical FOV 21°, diagonal FOV 43.5° 2.8/6 mm: Channel 1: horizontal FOV 106.1°, vertical FOV 56.8°, diagonal FOV 126.5° Channel 2: horizontal FOV 50.8°, vertical FOV 27.6°, diagonal FOV 59°
  • Iris TypeFixed
  • ApertureChannel 1: F6.0, Channel 2: F1.0
DORI
  • DORID: 82.2 m, O: 32.6 m, R: 16.4 m, I: 8.2 m
Video
  • Main StreamChannel 1: 50 Hz: 20 fps (1920 × 1080) 60 Hz: 20 fps (1920 × 1080) Channel 2: 50 Hz: 25 fps (3840 × 2160) 60 Hz: 24 fps (3840 × 2160)
  • Video Compression Main stream: H.265/H.264
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for Main Stream
  • Video Bit Rate32 Kbps to 16 Mbps
Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF,ISAPI,SDK,ISUP
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • Network StorageNAS (NFS, SMB/CIFS),NVR
  • ClientiVMS-4200,Hik-Connect,HCP
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Settingssaturation,brightness,contrast,sharpness,adjustable by client software or web browser
  • Day/Night SwitchDay
  • Image EnhancementBLC,HLC,3D DNR,Distortion Correction
  • Wide Dynamic Range (WDR)Channel 1: 120dB; Channel 2: Digital WDR
  • Privacy Mask8 rectangular privacy masks
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone1 built-in microphone
  • Reset KeyYes
Event
  • Basic Event Motion detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording
General
  • Power12 VDC ± 25%, 0.46 A, max. 5.5 W,Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 8.4W
  • MaterialMain body: Aluminum Alloy+plastic
  • Dimension457.8 mm × 72.9 mm × 72 mm (18.02" × 2.87" × 2.83")
  • Package Dimension547 mm × 146 mm × 109 mm (21.54" × 5.75" × 4.29")
  • WeightApprox. 555 g (1.22 lb.)
  • With Package WeightApprox. 920 g (2.03 lb.)
  • Storage Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Functionmirror
Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • SafetyCB: IEC 62368-1: 2014, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.1_250117
V5.8.1 Release Note
Applied to:
DS-2CD6F82G0-S(4mm/8mm)
DS-2CD6F82G0-S(2.8mm/6mm)
