DS-2CD2787G2HT-LIZS

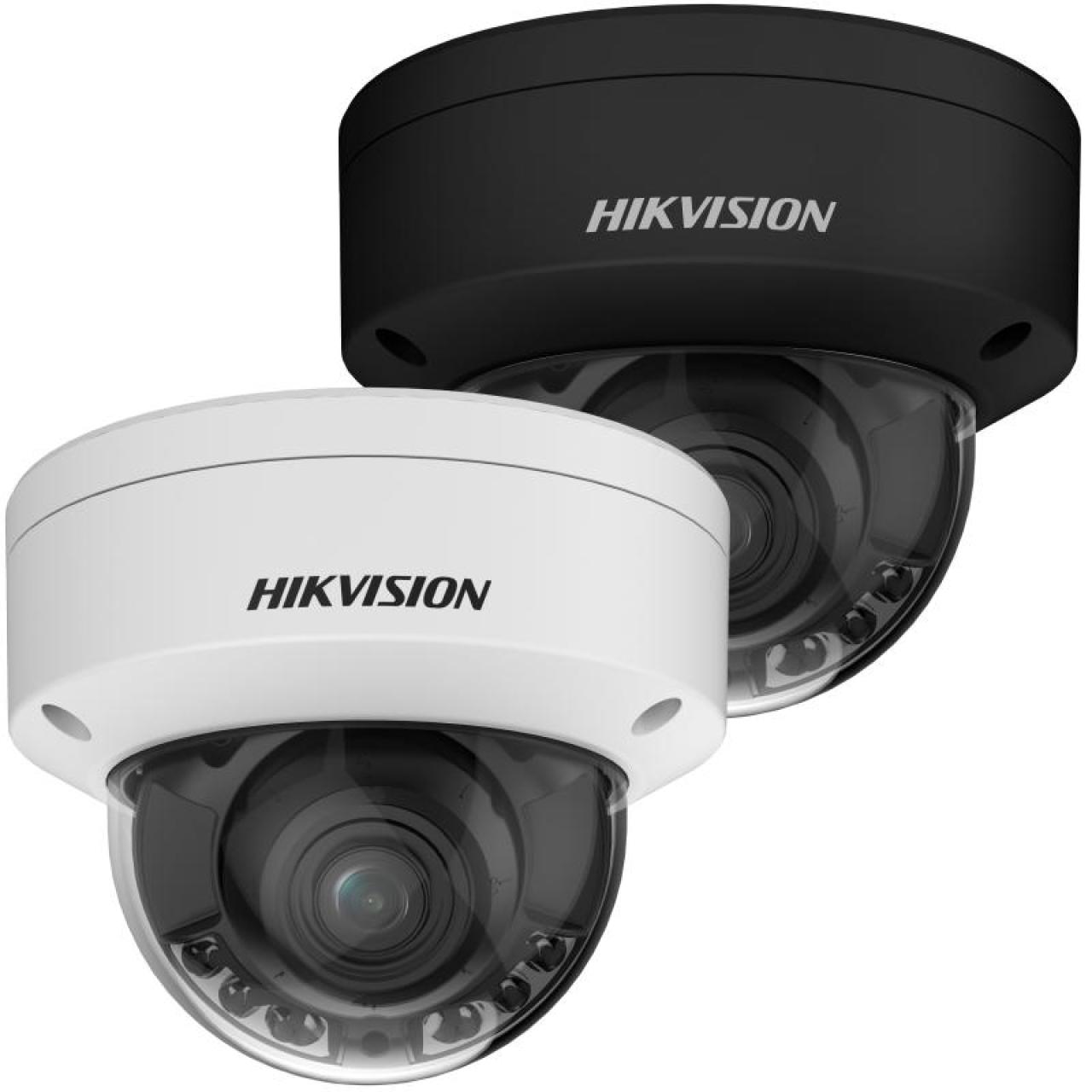

8 MP Smart Hybrid Light with ColorVu Motorized Varifocal Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Smart Hybrid Light: advanced technology with long range
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Efficient H.265+ compression technology
  • Motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67) and vandal resistant (IK10)

View Less
View more
DS-2CD2787G2HT-LIZS (Black)
DS-2CD2787G2HT-LIZS
Data Sheet
Sales Inquiry

Available models:

DS-2CD2787G2HT-LIZS(2.8-12)/eF/O-STD/BLK

Available models:

DS-2CD2787G2HT-LIZS(2.8-12mm)(eF)
DS-2CD2787G2HT-LIZS
Data Sheet

Specification

  • Camera
  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Max. Resolution 3840 × 2160
  • Min. Illumination Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lens
  • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
  • Lens Mount Integrated
  • Iris Type Fixed
  • Aperture Max. F1.2
  • Depth of Field 1 m to ∞
  • DORI
  • DORI Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m
  • Illuminator
  • Supplement Light Type IR,White Light
  • Supplement Light Range Up to 40 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch Day,Night,Auto,Schedule
  • Image Enhancement BLC,HLC,3D DNR
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Privacy Mask 4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event Scene change detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output
  • Deep Learning Function
  • Face Capture Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • General
  • Power 12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
  • Material Metal
  • Dimension Ø141 mm × 112 mm (Ø5.55" × 4.41")
  • Package Dimension 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Weight Approx. 820 g (1.8 lb.)
  • With Package Weight Approx. 1200 g (2.6 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function Heartbeat,mirror,password reset via email,pixel counter,anti-banding
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
  • Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
Lens Mount
Integrated
Iris Type
Fixed
Aperture
Max. F1.2
Depth of Field
1 m to ∞
DORI
DORI
Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output
Deep Learning Function
Face Capture
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
Material
Metal
Dimension
Ø141 mm × 112 mm (Ø5.55" × 4.41")
Package Dimension
244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Weight
Approx. 820 g (1.8 lb.)
With Package Weight
Approx. 1200 g (2.6 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
