DS-2CD2743G2-IZS

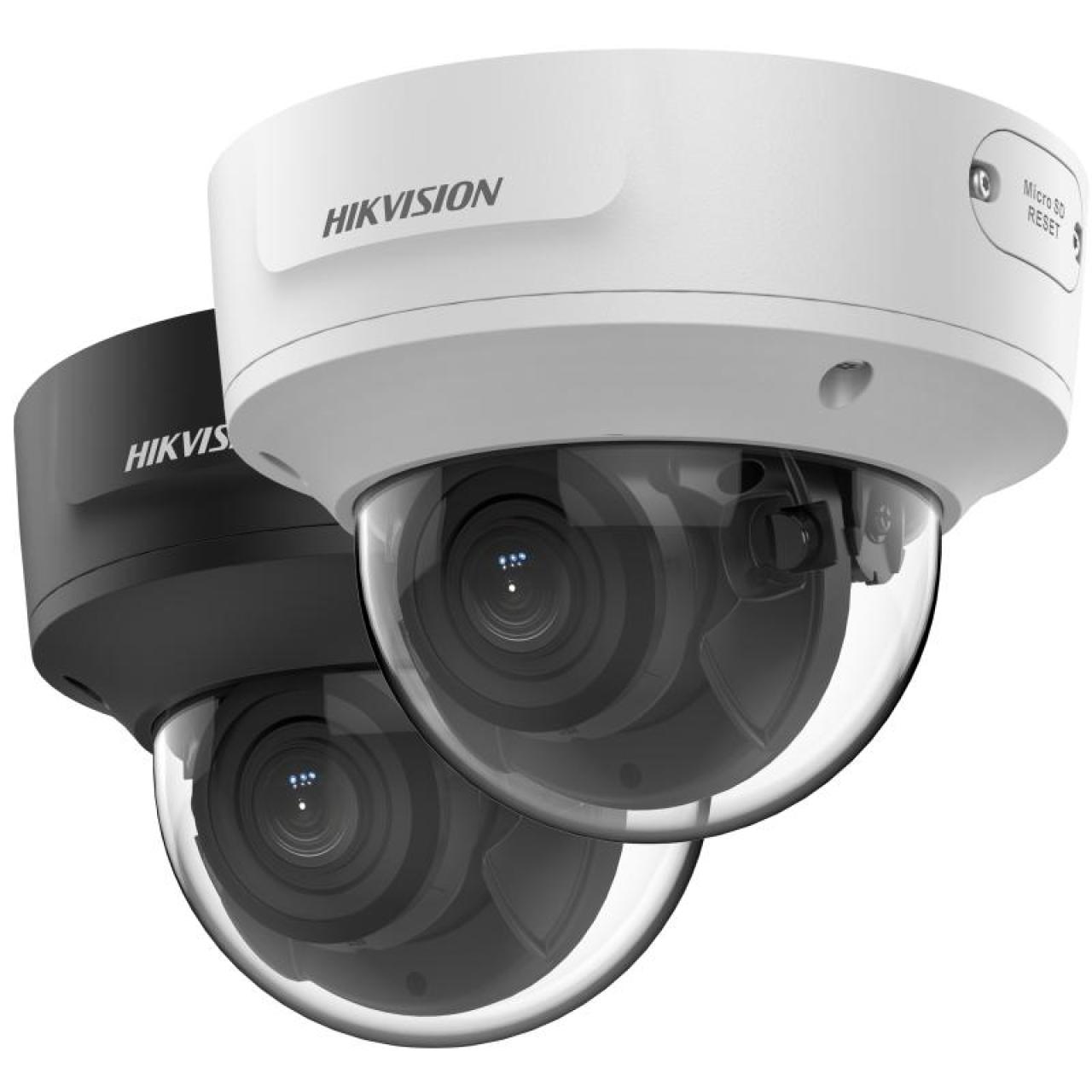

4 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Focus on human and vehicle targets classification based on deep learning

View Less
View more
DS-2CD2743G2-IZS
DS-2CD2743G2-IZS (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2743G2-IZS(2.8-12mm)

Available models:

DS-2CD2743G2-IZS(2.8-12mm)(BLACK)

DS-2CD2743G2-IZS

4 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Focus on human and vehicle targets classification based on deep learning

View Less
View more
DS-2CD2743G2-IZS
DS-2CD2743G2-IZS (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2743G2-IZS(2.8-12mm)

Available models:

DS-2CD2743G2-IZS(2.8-12mm)(BLACK)
DS-2CD2743G2-IZS
Data Sheet

Specification

  • Camera
  • Image Sensor 1/3″ Progressive Scan CMOS
  • Max. Resolution 2688 × 1520
  • Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night ICR Cut
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
  • Lens Mount Ø14
  • Iris Type Fixed
  • Aperture F1.6
  • DORI
  • DORI 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 40 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC) Yes
  • Region of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (Profile S, Profile G), ISAPI, SDK
  • User/Host Up to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board Storage Built-in microSD, up to 512 GB
  • Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection
  • Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
  • General
  • Power 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
  • Material Upper cover and base: metal Bubble: plastic
  • Dimension Ø153.3 × 111.6 mm (Ø6.1″ × 4.4″)
  • Package Dimension 244 × 174 × 173 mm (9.7" × 6.9" × 6.9")
  • Weight Approx. 880 g (1.9 lb.)
  • With Package Weight Approx. 1419 g (3.1 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Approval
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Time
1/3 s to 1/100,000 s
Day & Night
ICR Cut
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
Yes
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage
Built-in microSD, up to 512 GB
Audio
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Upper cover and base: metal Bubble: plastic
Dimension
Ø153.3 × 111.6 mm (Ø6.1″ × 4.4″)
Package Dimension
244 × 174 × 173 mm (9.7" × 6.9" × 6.9")
Weight
Approx. 880 g (1.9 lb.)
With Package Weight
Approx. 1419 g (3.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
