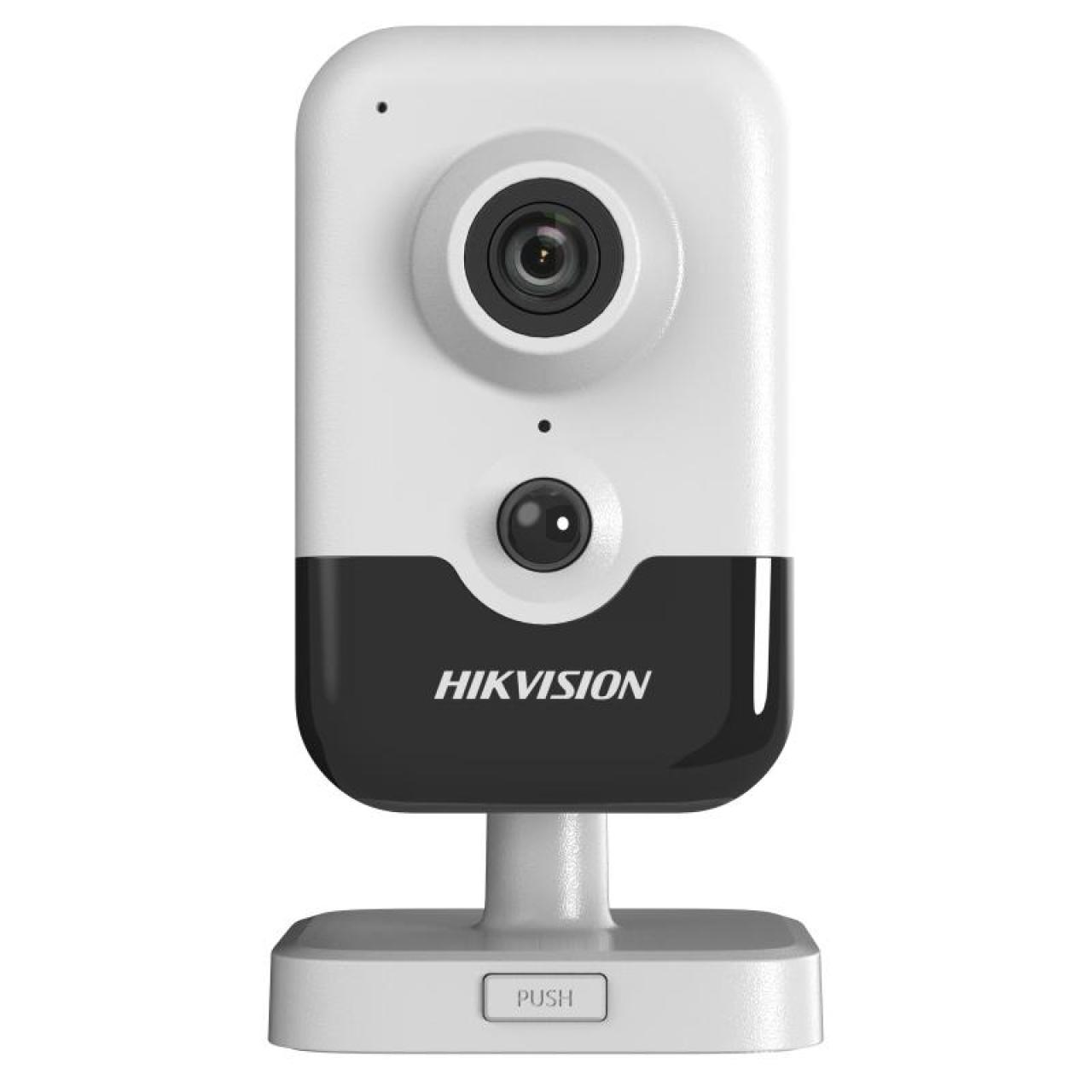

6 MP AcuSense Built-in Mic Fixed Cube Network Camera

High quality imaging with 6 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Detect human body through passive infrared which is sensitive to body temperature (PIR)

View Less

Data Sheet

Available models:

DS-2CD2463G2-I(2.8mm)

DS-2CD2463G2-I(4mm)

DS-2CD2463G2-I

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Aperture F1.6
Lens Mount M12

DORI
DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11m

Illuminator
Supplement Light Range Up to 10 m
IR Wavelength 850 nm
Smart Supplement Light Yes

Video
Main Stream 50 Hz: 12.5 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.265+, Sub-stream: H.265/MJPEG, Third stream: H.265, *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 4 programmable polygon privacy masks

Transducer
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range Up to 8 m

Interface
Built-in Microphone Yes
Built-in Speaker Max. power consumption: 1 W, max. sound pressure level: 10 cm: 91 dB.
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Face detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning

Deep Learning Function
Perimeter Protection Line crossing detection, intrusion detection Supports human and vehicle targets classification

General
Power 12 VDC ± 25%, 0.5 A, max. 5.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
General Function Heartbeat,mirror,password reset via email,pixel counter,anti-flicker
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Dimension 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Weight Approx. 120 g (0.3 lb.)
With Package Weight Approx. 370 g (0.8 lb.)

Approval
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
