DS-2CD2525FWD-I(W)(S)

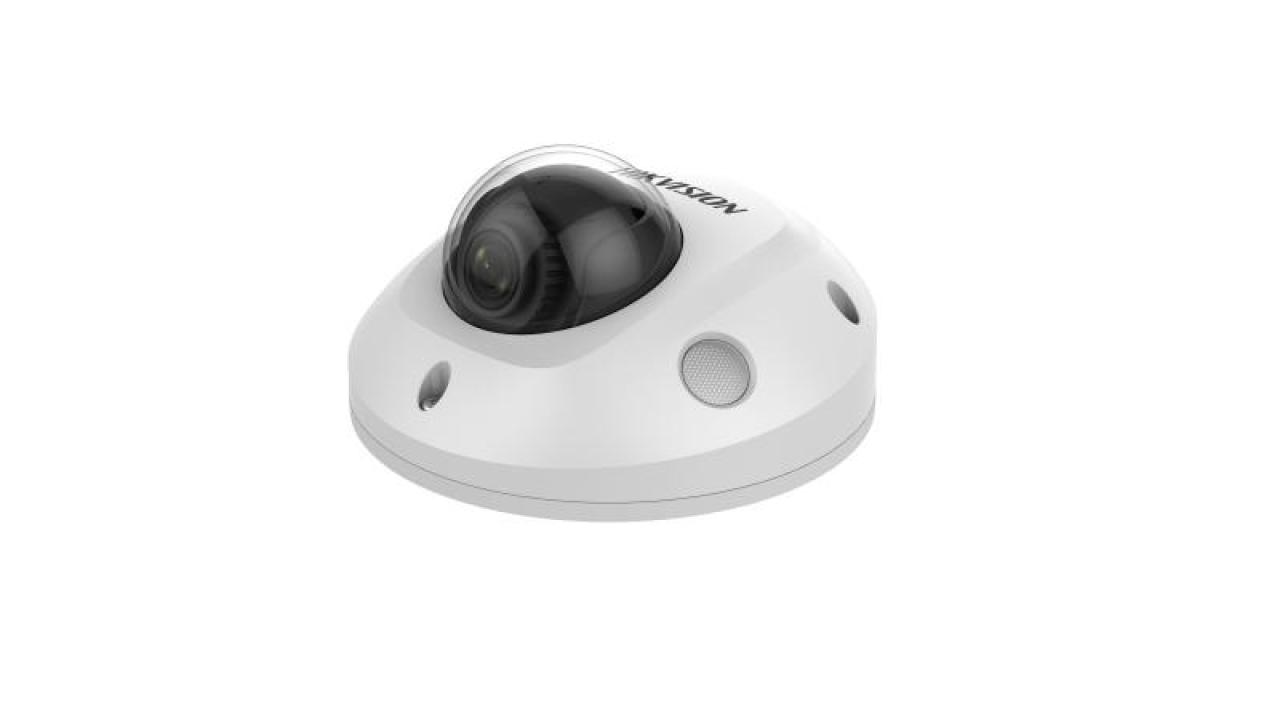

2 MP Powered-by-DarkFighter Fixed Mini Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -W: Wi-Fi connection
  • -S: built-in microphone, audio and alarm interface available
  • Water and dust resistant (IP66) and vandal proof (IK08)
  • Mini size suitable for limited space

View Less
View more
DS-2CD2525FWD-IWS (D)EOL
DS-2CD2525FWD-IWSEOL
DS-2CD2525FWD-IWEOL
DS-2CD2525FWD-ISEOL
DS-2CD2525FWD-IEOL
Data Sheet
Sales Inquiry

Available models:

DS-2CD2525FWD-IWS(2.8mm)(D)

Available models:

DS-2CD2525FWD-IWS(2.8mm)
DS-2CD2525FWD-IWS(4mm)

Available models:

DS-2CD2525FWD-IW(2.8mm)

Available models:

DS-2CD2525FWD-IS(2.8mm)
DS-2CD2525FWD-IS(4mm)
DS-2CD2525FWD-IS(6mm)

Available models:

DS-2CD2525FWD-I(2.8mm)
DS-2CD2525FWD-I(6mm)
DS-2CD2525FWD-I(W)(S)
Data Sheet

Specification

  • Camera
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR on
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120 dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Focus Fixed
  • Lens Type 2.8, 4, 6 mm
  • FOV 2.8 mm: horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129° 4 mm: horizontal FOV: 87°, vertical FOV: 45°, diagonal FOV: 102° 6 mm: horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 60°
  • Aperture F1.6
  • Lens Mount M12
  • Illuminator
  • IR Range Up to 10 m
  • Wavelength 850 nm
  • Video
  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) Support H.264 and H.265 encoding
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Audio Compression G722.1/G711/G726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users. 3 levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
  • Client Wired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
  • Wi-Fi
  • Encryption Mode -W: WPA, WPA2
  • Wi-Fi Protocol -W: IEEE 802.11b/g/n
  • Frequency Range -W: 2.412 GHz to 2.4835 GHz
  • Channel Bandwidth -W: 20 MHz
  • Transfer Rate -W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
  • Wireless Range -W: Up to 50 m (The performance varies based on actual environment)
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/ Triggered by Alarm In (-S)
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • Audio -S: 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block
  • Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Firmware Version V5.6.5
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25% PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.7 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9.5 W
  • Camera Dimension Ø120 mm × 67.4 mm (Ø4.7" × 2.7")
  • Camera Weight Camera: approx. 400 g (0.88 lb.)
  • Approval
  • Protection Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR on
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Type
2.8, 4, 6 mm
FOV
2.8 mm: horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129° 4 mm: horizontal FOV: 87°, vertical FOV: 45°, diagonal FOV: 102° 6 mm: horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 60°
Aperture
F1.6
Lens Mount
M12
Illuminator
IR Range
Up to 10 m
Wavelength
850 nm
Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264 Sub-stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
Support H.264 and H.265 encoding
Region of Interest (ROI)
Support 1 fixed region for main stream and sub-stream separately
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression
G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client
Wired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Wi-Fi
Encryption Mode
-W: WPA, WPA2
Wi-Fi Protocol
-W: IEEE 802.11b/g/n
Frequency Range
-W: 2.412 GHz to 2.4835 GHz
Channel Bandwidth
-W: 20 MHz
Transfer Rate
-W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Wireless Range
-W: Up to 50 m (The performance varies based on actual environment)
Day/Night Switch
Day/Night/Auto/Schedule/ Triggered by Alarm In (-S)
DNR
3D DNR
Image Enhancement
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
Audio
-S: 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block
Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection
Yes
Exception Detection
Scene change detection
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware Version
V5.6.5
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25% PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.7 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9.5 W
Camera Dimension
Ø120 mm × 67.4 mm (Ø4.7" × 2.7")
Camera Weight
Camera: approx. 400 g (0.88 lb.)
Approval
Protection
Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2525FWD-IWS(2.8mm)(D)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.2_190701
【Release Note】Mobile IPC V5.6.2_190701
Applied to:
DS-2CD2525FWD-IWS(2.8mm)
DS-2CD2525FWD-IWS(4mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.2_190701
【Release Note】Mobile IPC V5.6.2_190701
Applied to:
DS-2CD2525FWD-IW(2.8mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2525FWD-IS(2.8mm)
DS-2CD2525FWD-IS(4mm)
DS-2CD2525FWD-IS(6mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2525FWD-I(2.8mm)
Firmware_V5.6.6_210625
Network Camera V5.6.6 Release Note --G1
Applied to:
DS-2CD2525FWD-I(6mm)
