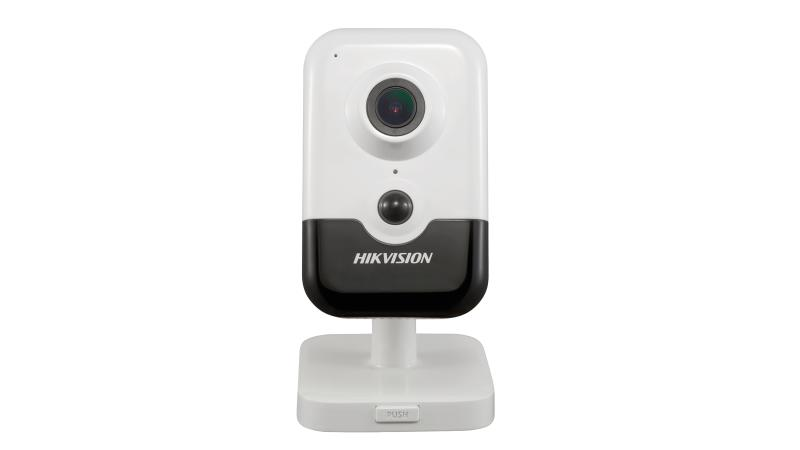

5 MP Cube Network Camera

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Provides real-time security through built-in two-way audio
Detects human body through passive infrared sensitive to body temperature (PIR)
-W: Wi-Fi connection

View Less

DS-2CD2455FWD-I^EOL

DS-2CD2455FWD-IW^EOL

Available models:

DS-2CD2455FWD-I(2.8mm)

Available models:

DS-2CD2455FWD-IW(2.8mm)

DS-2CD2455FWD-I(W)

Specification
Resources
Accessories

Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 2944 × 1656
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focus F2.0
Focal Length & FOV 2.8 mm, horizontal FOV 97°, vertical FOV 54°, diagonal FOV 113°
Aperture F1.6
Lens Mount M12

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 10 m
IR Wavelength 850 nm

Video
Main Stream 50 Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream separately

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)

Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users. 3 levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage Local storage, NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

Wi-Fi
Encryption Mode -W: WPA, WPA2
Wi-Fi Protocol -W: IEEE 802.11b/g/n
Frequency Range -W: 2.412 GHz - 2.4835 GHz
Channel Bandwidth -W: 20/40 MHz
Transfer Rate -W: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range -W: Up to 50 m (The performance varies based on actual environment)

Wide Dynamic Range (WDR) 120 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Transducer
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range Up to 10 m

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Yes
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Reset Key Yes

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Linkage Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

General
Power 12 VDC ± 20%, 0.47 A, max. 7 W PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A, max. 7 W
Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
Material Plastic
Dimension 102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Weight Approx. 128 g (0.28 lb.)

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Max. Resolution

2944 × 1656

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focus

F2.0

Focal Length & FOV

2.8 mm, horizontal FOV 97°, vertical FOV 54°, diagonal FOV 113°

Aperture

F1.6

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 10 m

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream separately

Audio

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G722.1/G711/G726/MP2L2/PCM

Audio Bit Rate

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network Storage

Local storage, NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

Wi-Fi

Encryption Mode

-W: WPA, WPA2

Wi-Fi Protocol

-W: IEEE 802.11b/g/n

Frequency Range

-W: 2.412 GHz - 2.4835 GHz

Channel Bandwidth

-W: 20/40 MHz

Transfer Rate

-W: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

Wireless Range

-W: Up to 50 m (The performance varies based on actual environment)


Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Transducer

PIR Angle

Horizontal: 90°, vertical: 80°

PIR Range

Up to 10 m

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

Yes

Built-in Speaker

Yes

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection

Linkage

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

General

Power

12 VDC ± 20%, 0.47 A, max. 7 W PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A, max. 7 W

Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup and Operating Conditions

-10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)

Material

Plastic

Dimension

102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")

Weight

Approx. 128 g (0.28 lb.)
