DS-2CD63C2F-I(V)(S)

EOL

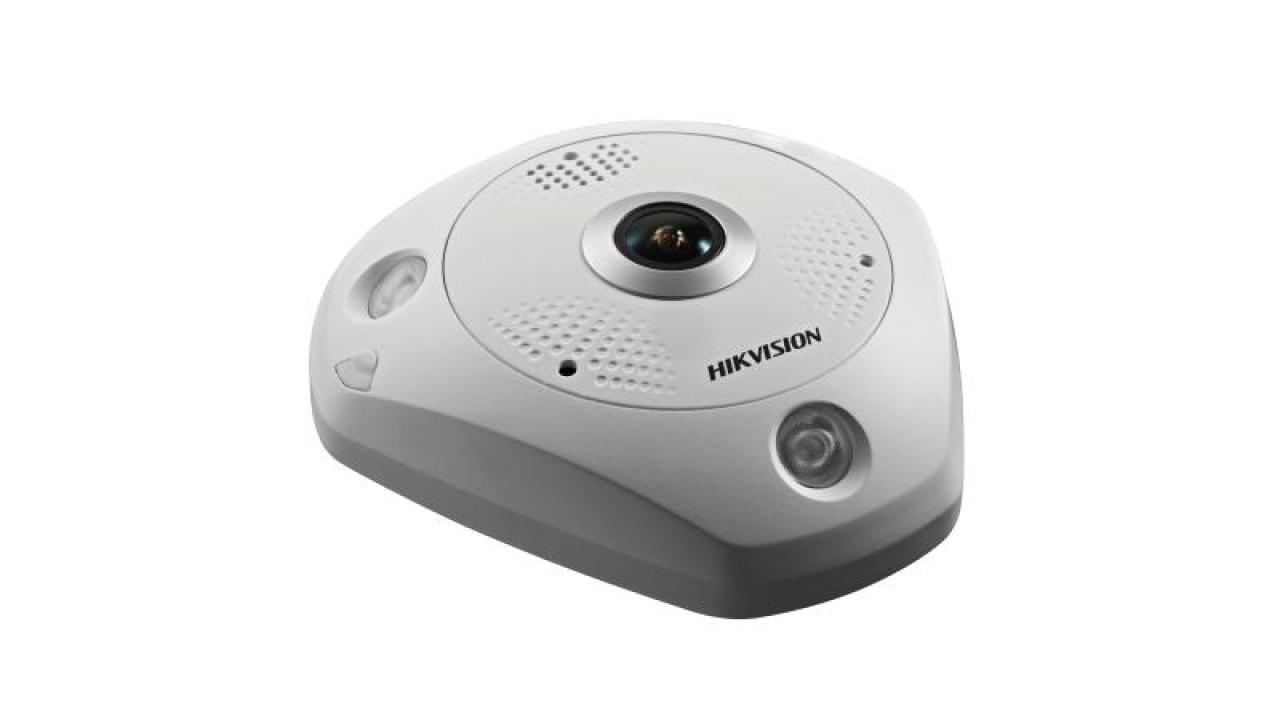

12 MP Fisheye Network Camera

  • 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
  • IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
  • Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
  • High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
  • each image is clear and detailed
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD63C2F-IVS(2mm)
DS-2CD63C2F-I(2mm)
DS-2CD63C2F-IV(2mm)
DS-2CD63C2F-I(V)(S)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.7″ Progressive Scan CMOS
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
  • Lens2 mm @F2.4, horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
  • Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 14 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 12.5fps (720 × 720, 704 × 576),60Hz: 15fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution4000 × 3072
  • Main Stream50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560),60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)
  • Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Interface
  • Communication InterfaceBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 3.5mm audio interface, Mic in/Line in (with – S model); ,1 built-in microphone by default, -42dB,1 3.5mm audio output interface (with – S model); ,1 built-in speaker by default, support echo cancellation
  • Video Output1 RJ45 10M/100M Ethernet port,With –S model: 1 RS-485 interface
  • On-board Storage1 input, 1 output (up to DC24V 1A or AC110V 500mA)
  • Housing interfaceYes
  • Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • IR
  • IR Range15 m
  • Live View Display
  • Display ModeSupport table, wall, and ceiling
  • People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
  • Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
  • Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
  • General
  • Power SupplyIndoor temperature: -10 °C to +50 °C (14 °F to +122 °F),With –V model: Outdoor temperature: -30 °C to +60 °C (-22 °F to +140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power ConsumptionDC 12 V ± 10%, 0.94 A,PoE (802.3at, class 4), 0.41 – 0.26 A
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Shipping WeightMax. 14.7 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.7″ Progressive Scan CMOS
Min. Illumination
0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s – 1/100,000 s
Slow Shutter
Support
DNR
3D DNR
WDR
Digital WDR
Day & Night
IR cut filter
Lens
2 mm @F2.4, horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
Lens Mount
M12
Audio
Audio Compression
Max. 48 kHz
Environment Noise Filtering
Support 14 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Audio Sampling Rate
support
Audio I/O
support
Image Enhancement
BLC/3D DNR
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Settings
Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Sub-Stream
50Hz: 12.5fps (720 × 720, 704 × 576),60Hz: 15fps (720 × 720, 704 × 480)
ROI (Region of Interest)
Support 3 fixed region for each stream
Max. Resolution
4000 × 3072
Main Stream
50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560),60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)
Network
Protocols
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Security
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Detection
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Firmware Version
One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm
1 3.5mm audio interface, Mic in/Line in (with – S model); ,1 built-in microphone by default, -42dB,1 3.5mm audio output interface (with – S model); ,1 built-in speaker by default, support echo cancellation
Video Output
1 RJ45 10M/100M Ethernet port,With –S model: 1 RS-485 interface
On-board Storage
1 input, 1 output (up to DC24V 1A or AC110V 500mA)
Housing interface
Yes
Compression Standard
H.264+
Support only when the display mode is Fisheye View
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main stream: H.264,Sub stream: H.264/MJPEG
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Video Bit Rate
256 Kbps – 16 Mbps
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
IR
IR Range
15 m
Live View Display
Display Mode
Support table, wall, and ceiling
People Counting
People Counting
ONVIF (PROFILE S, PROFILE G), ISAPI
Road Traffic and Vehicle Detection
Accuracy
1400 g (3.09 lbs)
Smart Feature-set
Line Crossing Detection
Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion Detection
Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
General
Power Supply
Indoor temperature: -10 °C to +50 °C (14 °F to +122 °F),With –V model: Outdoor temperature: -30 °C to +60 °C (-22 °F to +140 °F),Humidity 95% or less (non-condensing)
Weight
164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
Power Consumption
DC 12 V ± 10%, 0.94 A,PoE (802.3at, class 4), 0.41 – 0.26 A
Accessory
With – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
Shipping Weight
Max. 14.7 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.7″ Progressive Scan CMOS
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
  • Lens2 mm @F2.4, horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 14 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 12.5fps (720 × 720, 704 × 576),60Hz: 15fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution4000 × 3072
  • Main Stream50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560),60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)
Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Interface
  • Communication InterfaceBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 3.5mm audio interface, Mic in/Line in (with – S model); ,1 built-in microphone by default, -42dB,1 3.5mm audio output interface (with – S model); ,1 built-in speaker by default, support echo cancellation
  • Video Output1 RJ45 10M/100M Ethernet port,With –S model: 1 RS-485 interface
  • On-board Storage1 input, 1 output (up to DC24V 1A or AC110V 500mA)
  • Housing interfaceYes
Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
IR
  • IR Range15 m
Live View Display
  • Display ModeSupport table, wall, and ceiling
People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
General
  • Power SupplyIndoor temperature: -10 °C to +50 °C (14 °F to +122 °F),With –V model: Outdoor temperature: -30 °C to +60 °C (-22 °F to +140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power ConsumptionDC 12 V ± 10%, 0.94 A,PoE (802.3at, class 4), 0.41 – 0.26 A
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Shipping WeightMax. 14.7 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.4.801_210812
Applied to:
DS-2CD63C2F-I(2mm)
DS-2CD63C2F-IV(2mm)
