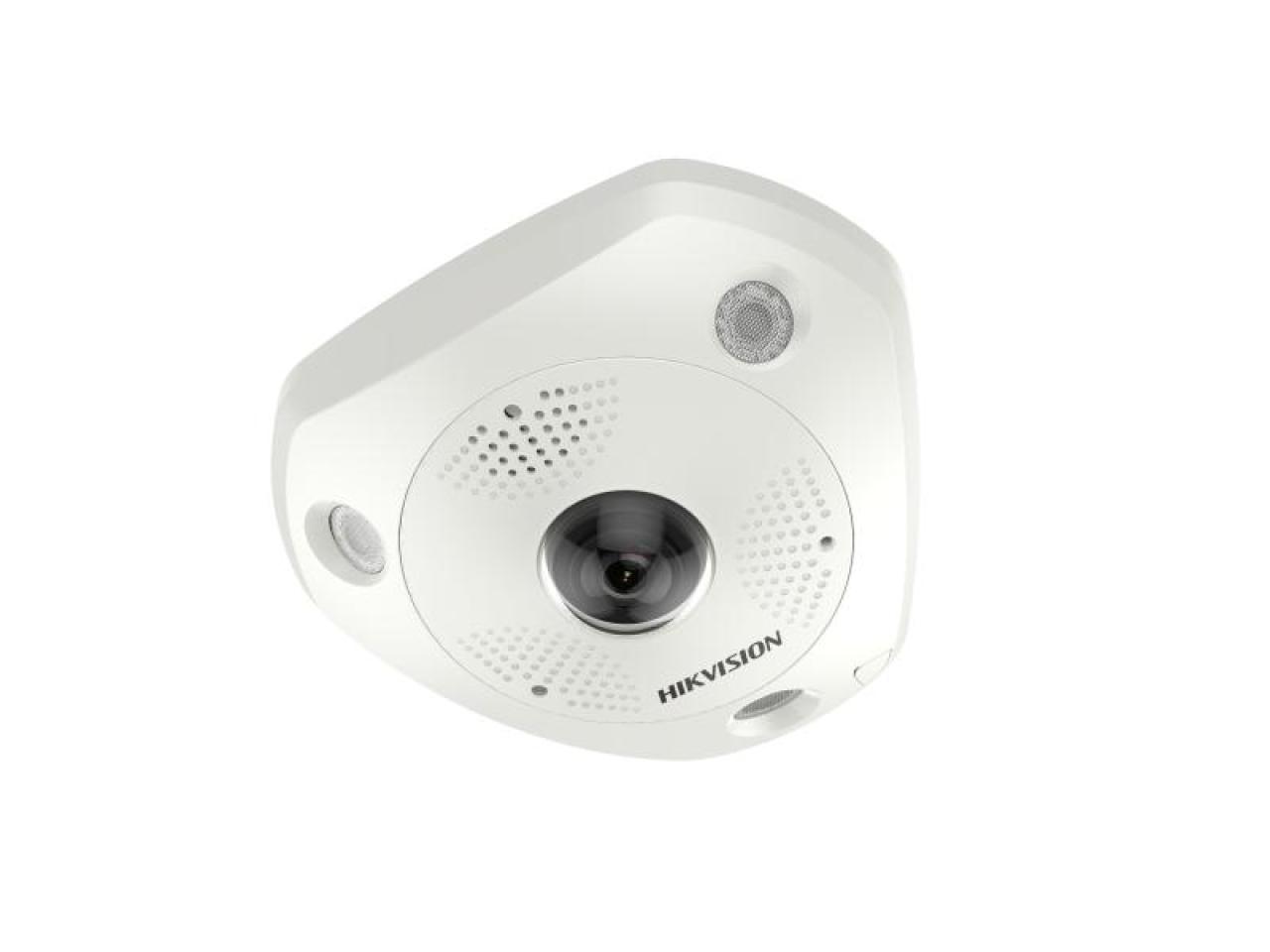

6 MP DeepinView Fisheye Network Camera

360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its video security scene
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication

View Less

Data Sheet

Available models:

DS-2CD6365G0-IVS(1.27mm)(B)

DS-2CD6365G0-IVS(1.27mm)(B)/Retail

DS-2CD6365G0-IVS(B)

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3072 × 2048
Min. IlluminationColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR Cut Filter

Lens
Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)
Lens MountM12
ApertureF2.6

DORI
DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m

Illuminator
Supplement Light Type3 IR LEDs, each LED is independently controlled
Supplement Light RangeUp to 15 m
IR Wavelength850 nm

Video
Main StreamFisheye View: 50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 180 Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) 4PTZ: 50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) 60 Hz: camera 01: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (2048 × 2048, 1024 × 1024) camera 02: 25 fps (1024 × 768) camera 03: 25 fps (1024 × 768) camera 04: 25 fps (1024 × 768) 60 Hz: camera 01: 30 fps (2048 × 2048, 1024 × 1024) camera 02: 30 fps (1024 × 768) camera 03: 30 fps (1024 × 768) camera 04: 30 fps (1024 × 768) 4PTZ Fusion: 50 Hz: 25 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 30 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)
Sub-StreamFisheye View: 50 Hz: 25 fps (720 × 720, 720 × 480) 60 Hz: 30 fps (720 × 720, 720 × 480) 180 Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (720 × 720) 60 Hz: camera 01: 30 fps (720 × 720)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.265 and H.264 encoding
Region of Interest (ROI)4 fixed regions for main stream and sub-stream

Fisheye Display
Mount Type Support table, wall, and ceiling mounting
Decoding ModeSupport hardware decoding and software decoding
Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web BrowserChrome 57+, Firefox 52+, Safari 12+

Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, defog, 3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in MicrophoneYes,two built-in microphone(s)
Built-in SpeakerYes
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, max. 12 V; 1 output, max 24 VDC, 1 A
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.

Deep Learning Function
People CountingCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
Heat MapA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
Intersection AnalysisDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

General
Power12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
MaterialMain body: Metal Cover: Plastic
Dimension167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")
Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
WeightApprox. 720 g (1.6 lb.)
With Package Weight Approx. 1.3 kg (2.9 lb.)
Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
HeaterYes

Approval
EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3072 × 2048

Min. Illumination

Color: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR Cut Filter

Lens

Focal Length & FOV

1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)

Lens Mount

M12

Aperture

F2.6

DORI

D: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m

Illuminator

Supplement Light Type

3 IR LEDs, each LED is independently controlled

Supplement Light Range

Up to 15 m

IR Wavelength

850 nm

Video

Main Stream

Fisheye View: 50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 180 Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) 4PTZ: 50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) 60 Hz: camera 01: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (2048 × 2048, 1024 × 1024) camera 02: 25 fps (1024 × 768) camera 03: 25 fps (1024 × 768) camera 04: 25 fps (1024 × 768) 60 Hz: camera 01: 30 fps (2048 × 2048, 1024 × 1024) camera 02: 30 fps (1024 × 768) camera 03: 30 fps (1024 × 768) camera 04: 30 fps (1024 × 768) 4PTZ Fusion: 50 Hz: 25 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 30 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)

Sub-Stream

Fisheye View: 50 Hz: 25 fps (720 × 720, 720 × 480) 60 Hz: 30 fps (720 × 720, 720 × 480) 180 Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (720 × 720) 60 Hz: camera 01: 30 fps (720 × 720)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.265 and H.264 encoding

Region of Interest (ROI)

4 fixed regions for main stream and sub-stream

Fisheye Display

Mount Type

Support table, wall, and ceiling mounting

Decoding Mode

Support hardware decoding and software decoding

Display Mode

18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (PROFILE S, PROFILE G), ISAPI

User/Host

Up to 32 users. 3 user levels, administrator, operator and user

Security

Password protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200

Web Browser

Chrome 57+, Firefox 52+, Safari 12+


Image Settings

Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, defog, 3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB

Built-in Microphone

Yes,two built-in microphone(s)

Built-in Speaker

Yes

Audio

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, max. 12 V; 1 output, max 24 VDC, 1 A

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.

Deep Learning Function

People Counting

Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height

Heat Map

A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart

Intersection Analysis

Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

General

Power

12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W

Material

Main body: Metal Cover: Plastic

Dimension

167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")

Package Dimension

260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")

Weight

Approx. 720 g (1.6 lb.)

With Package Weight

Approx. 1.3 kg (2.9 lb.)

Startup and Operating Conditions

-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter

Heater

Yes

Approval

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013, IK10: IEC 62262:2002

Camera

Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3072 × 2048
Min. IlluminationColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR Cut Filter

Lens

Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)
Lens MountM12
ApertureF2.6

DORI

DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m

Illuminator

Supplement Light Type3 IR LEDs, each LED is independently controlled
Supplement Light RangeUp to 15 m
IR Wavelength850 nm

Video

Main StreamFisheye View: 50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 180 Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) 4PTZ: 50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) 60 Hz: camera 01: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 02: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 03: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) camera 04: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (2048 × 2048, 1024 × 1024) camera 02: 25 fps (1024 × 768) camera 03: 25 fps (1024 × 768) camera 04: 25 fps (1024 × 768) 60 Hz: camera 01: 30 fps (2048 × 2048, 1024 × 1024) camera 02: 30 fps (1024 × 768) camera 03: 30 fps (1024 × 768) camera 04: 30 fps (1024 × 768) 4PTZ Fusion: 50 Hz: 25 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 30 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)
Sub-StreamFisheye View: 50 Hz: 25 fps (720 × 720, 720 × 480) 60 Hz: 30 fps (720 × 720, 720 × 480) 180 Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 25 fps (720 × 720) 60 Hz: camera 01: 30 fps (720 × 720)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.265 and H.264 encoding
Region of Interest (ROI)4 fixed regions for main stream and sub-stream

Fisheye Display

Mount Type Support table, wall, and ceiling mounting
Decoding ModeSupport hardware decoding and software decoding
Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web BrowserChrome 57+, Firefox 52+, Safari 12+


Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, defog, 3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in MicrophoneYes,two built-in microphone(s)
Built-in SpeakerYes
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, max. 12 V; 1 output, max 24 VDC, 1 A
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event

Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.

Deep Learning Function

People CountingCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
Heat MapA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
Intersection AnalysisDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

General

Power12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
MaterialMain body: Metal Cover: Plastic
Dimension167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")
Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
WeightApprox. 720 g (1.6 lb.)
With Package Weight Approx. 1.3 kg (2.9 lb.)
Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
HeaterYes

Approval

EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
