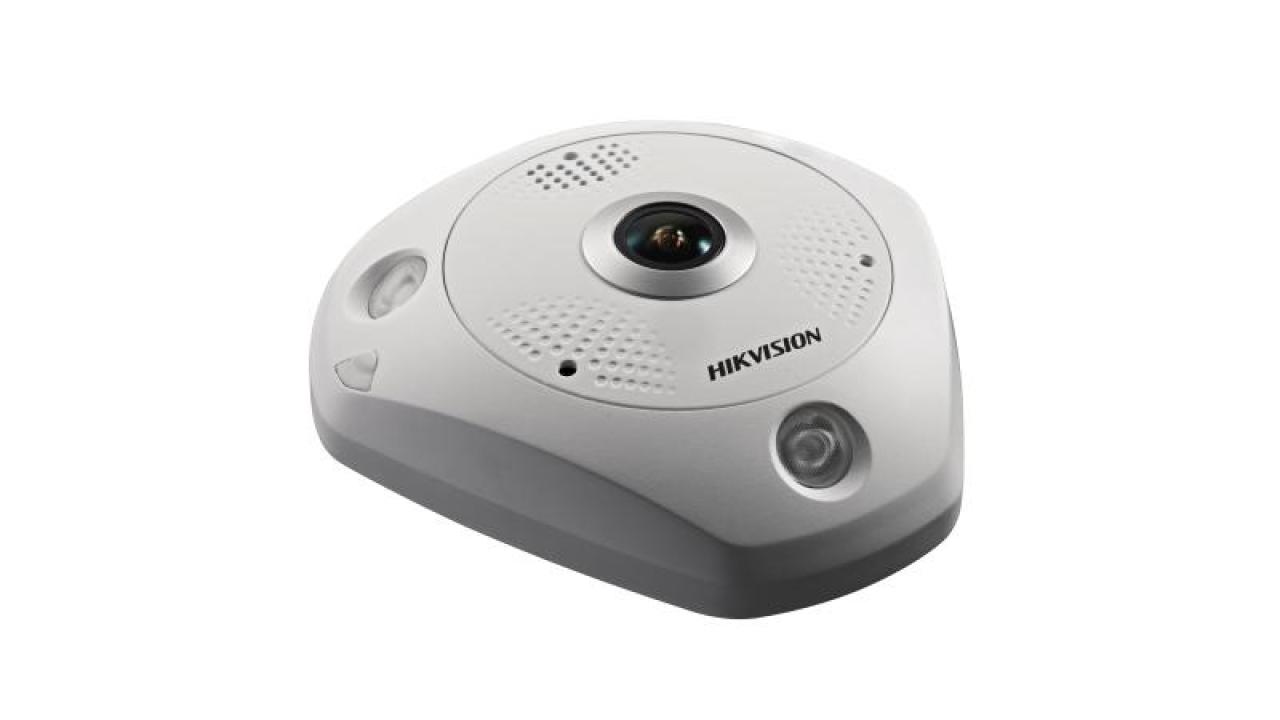

DS-2CD6362F-I(V)(S)

EOL

6 MP Fisheye Network Camera

  • 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
  • IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
  • Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
  • High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
  • each image is clear and detailed
View Less
View more

Available models:

DS-2CD6362F-IS(1.27mm)
DS-2CD6362F-I(1.27mm)
DS-2CD6362F-IVS(1.27mm)
DS-2CD6362F-IV(1.27mm)

Specification

  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. Illumination0.05 Lux @ (F1.2, AGC ON), 0.25 Lux @ (F2.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
  • Lens1.27 mm, F2.6; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
  • Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 15 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 12.5fps (720 × 720, 704 × 576),60Hz: 15fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280),60Hz: 24fps (3072 × 2048), 30fps (2048 × 2048, 1280 × 1280)
  • Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Interface
  • Communication InterfaceBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 3.5mm audio interface, Mic in/Line in (with – S model); ,1 built-in microphone by default, -42dB,1 3.5mm audio output interface (with – S model); ,1 built-in speaker by default, support echo cancellation
  • Video Output1 RJ45 10M/100M Ethernet port,With –S model: 1 RS-485 interface
  • On-board StorageWith –S model:,1 input, 1 output (up to DC24V 1A or AC110V 500mA)
  • Housing interfaceYes
  • Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • IR
  • IR Range15 m
  • Live View Display
  • Display ModeSupport table, wall, and ceiling
  • People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
  • Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
  • Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Behavior AnalysisEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
  • General
  • Power SupplyIndoor temperature: -10 °C to +50 °C (14 °F – 122 °F),With –V model: Outdoor temperature: -30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power ConsumptionDC 12 V ± 10%, 0.78A,PoE (802.3af, class 3), 0.33 – 0.21A
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Shipping WeightMax. 12W

Specification

Specification
Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. Illumination0.05 Lux @ (F1.2, AGC ON), 0.25 Lux @ (F2.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
  • Lens1.27 mm, F2.6; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 15 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 12.5fps (720 × 720, 704 × 576),60Hz: 15fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280),60Hz: 24fps (3072 × 2048), 30fps (2048 × 2048, 1280 × 1280)
Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Interface
  • Communication InterfaceBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 3.5mm audio interface, Mic in/Line in (with – S model); ,1 built-in microphone by default, -42dB,1 3.5mm audio output interface (with – S model); ,1 built-in speaker by default, support echo cancellation
  • Video Output1 RJ45 10M/100M Ethernet port,With –S model: 1 RS-485 interface
  • On-board StorageWith –S model:,1 input, 1 output (up to DC24V 1A or AC110V 500mA)
  • Housing interfaceYes
Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
IR
  • IR Range15 m
Live View Display
  • Display ModeSupport table, wall, and ceiling
People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Behavior AnalysisEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
General
  • Power SupplyIndoor temperature: -10 °C to +50 °C (14 °F – 122 °F),With –V model: Outdoor temperature: -30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power ConsumptionDC 12 V ± 10%, 0.78A,PoE (802.3af, class 3), 0.33 – 0.21A
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Shipping WeightMax. 12W
