DS-2CD6332FWD-I(V)(S)

EOL

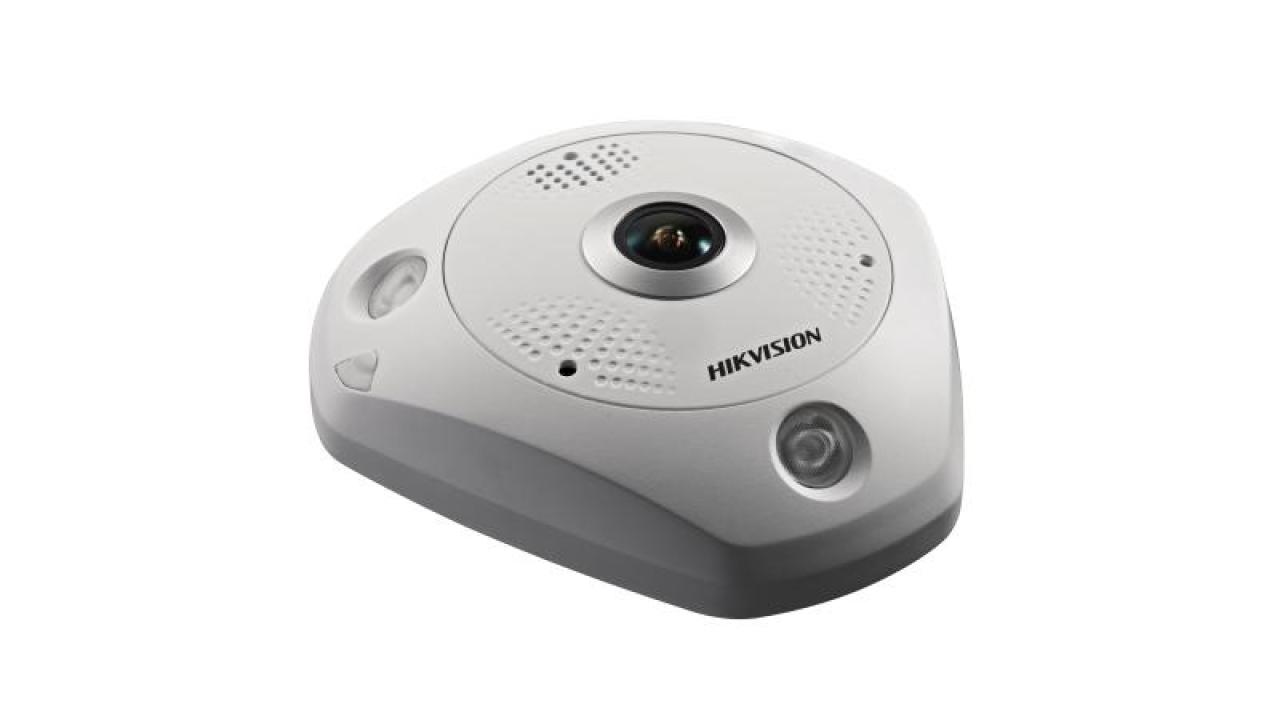

3 MP Fisheye Network Camera

  • 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
  • IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
  • Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD6332FWD-IS(1.19mm)
DS-2CD6332FWD-I(1.19mm)
DS-2CD6332FWD-IVS(1.19mm)
DS-2CD6332FWD-IV(1.19mm)
DS-2CD6332FWD-I(V)(S)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0.28 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDR120dB WDR
  • Day & NightIR cut filter
  • Lens1.19 mm, F2.0; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
  • Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 15 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In (with – S model)
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (720 × 720, 704 × 576),60Hz: 30fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution2048 × 1536
  • Main Stream50Hz: 25fps (2048 × 1536, 1536 × 1536),60Hz: 30fps (2048 × 1536, 1536 × 1536)
  • Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port With –S model: 1 RS-485 interface
  • Alarm1 input, 1 output (up to DC24V 1A or AC110V 500mA) (With –S model)
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Reset ButtonYes
  • Audio Input1 3.5mm audio interface, Mic in/Line in (with – S model); 1 built-in microphone by default, -42dB
  • Audio Output1 3.5mm audio output interface (with – S model); 1 built-in speaker by default, support echo cancellation
  • Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Live View Display
  • Display ModeSupport table, wall, and ceiling
  • People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
  • Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
  • Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Behavior AnalysisEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
  • General
  • Power SupplyIndoor temperature: -10 °C – 50 °C (14 °F – 122 °F),With –V model: Outdoor temperature: -30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 45.5mm (6.46” × 6.02” × 1.79”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power Consumption12 V DC ± 10%, PoE (802.3af)
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Ingress Protection15 m
  • Shipping Weight12 V DC ± 10%: Max. 9.3 W,PoE (802.3af): Max. 12.18 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3″ Progressive Scan CMOS
Min. Illumination
0.1 Lux @ (F1.2, AGC ON), 0.28 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s – 1/100,000 s
Slow Shutter
Support
DNR
3D DNR
WDR
120dB WDR
Day & Night
IR cut filter
Lens
1.19 mm, F2.0; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
Lens Mount
M12
Audio
Audio Compression
Max. 48 kHz
Environment Noise Filtering
Support 15 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Audio Sampling Rate
support
Audio I/O
support
Image Enhancement
BLC/3D DNR
Day/Night Switch
Auto/Schedule/Triggered by Alarm In (with – S model)
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Settings
Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Sub-Stream
50Hz: 25fps (720 × 720, 704 × 576),60Hz: 30fps (720 × 720, 704 × 480)
ROI (Region of Interest)
Support 3 fixed region for each stream
Max. Resolution
2048 × 1536
Main Stream
50Hz: 25fps (2048 × 1536, 1536 × 1536),60Hz: 30fps (2048 × 1536, 1536 × 1536)
Network
Protocols
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Security
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Detection
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Firmware Version
One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface
1 RJ45 10M/100M Ethernet port With –S model: 1 RS-485 interface
Alarm
1 input, 1 output (up to DC24V 1A or AC110V 500mA) (With –S model)
Video Output
1Vp-p composite output (75 Ω/BNC)
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
Audio Input
1 3.5mm audio interface, Mic in/Line in (with – S model); 1 built-in microphone by default, -42dB
Audio Output
1 3.5mm audio output interface (with – S model); 1 built-in speaker by default, support echo cancellation
Compression Standard
H.264+
Support only when the display mode is Fisheye View
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main stream: H.264,Sub stream: H.264/MJPEG
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Video Bit Rate
256 Kbps – 16 Mbps
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Live View Display
Display Mode
Support table, wall, and ceiling
People Counting
People Counting
ONVIF (PROFILE S, PROFILE G), ISAPI
Road Traffic and Vehicle Detection
Accuracy
1400 g (3.09 lbs)
Smart Feature-set
Line Crossing Detection
Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Behavior Analysis
Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
General
Power Supply
Indoor temperature: -10 °C – 50 °C (14 °F – 122 °F),With –V model: Outdoor temperature: -30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing)
Weight
164 × 152.8 × 45.5mm (6.46” × 6.02” × 1.79”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
Power Consumption
12 V DC ± 10%, PoE (802.3af)
Accessory
With – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
Ingress Protection
15 m
Shipping Weight
12 V DC ± 10%: Max. 9.3 W,PoE (802.3af): Max. 12.18 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0.28 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDR120dB WDR
  • Day & NightIR cut filter
  • Lens1.19 mm, F2.0; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
Audio
  • Audio CompressionMax. 48 kHz
  • Environment Noise FilteringSupport 15 display modes in total (including display modes of different mount types and decoding modes):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
  • Audio Sampling Ratesupport
  • Audio I/Osupport
  • Image EnhancementBLC/3D DNR
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In (with – S model)
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (720 × 720, 704 × 576),60Hz: 30fps (720 × 720, 704 × 480)
  • ROI (Region of Interest)Support 3 fixed region for each stream
  • Max. Resolution2048 × 1536
  • Main Stream50Hz: 25fps (2048 × 1536, 1536 × 1536),60Hz: 30fps (2048 × 1536, 1536 × 1536)
Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • DetectionSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port With –S model: 1 RS-485 interface
  • Alarm1 input, 1 output (up to DC24V 1A or AC110V 500mA) (With –S model)
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Reset ButtonYes
  • Audio Input1 3.5mm audio interface, Mic in/Line in (with – S model); 1 built-in microphone by default, -42dB
  • Audio Output1 3.5mm audio output interface (with – S model); 1 built-in speaker by default, support echo cancellation
Compression Standard
  • H.264+Support only when the display mode is Fisheye View
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264,Sub stream: H.264/MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate256 Kbps – 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Live View Display
  • Display ModeSupport table, wall, and ceiling
People Counting
  • People CountingONVIF (PROFILE S, PROFILE G), ISAPI
Road Traffic and Vehicle Detection
  • Accuracy1400 g (3.09 lbs)
Smart Feature-set
  • Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
  • Behavior AnalysisEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
General
  • Power SupplyIndoor temperature: -10 °C – 50 °C (14 °F – 122 °F),With –V model: Outdoor temperature: -30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing)
  • Weight164 × 152.8 × 45.5mm (6.46” × 6.02” × 1.79”),With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”)
  • Power Consumption12 V DC ± 10%, PoE (802.3af)
  • AccessoryWith – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing,With – V model: IP66
  • Ingress Protection15 m
  • Shipping Weight12 V DC ± 10%: Max. 9.3 W,PoE (802.3af): Max. 12.18 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.4.801_210812
Applied to:
DS-2CD6332FWD-IS(1.19mm)
DS-2CD6332FWD-I(1.19mm)
