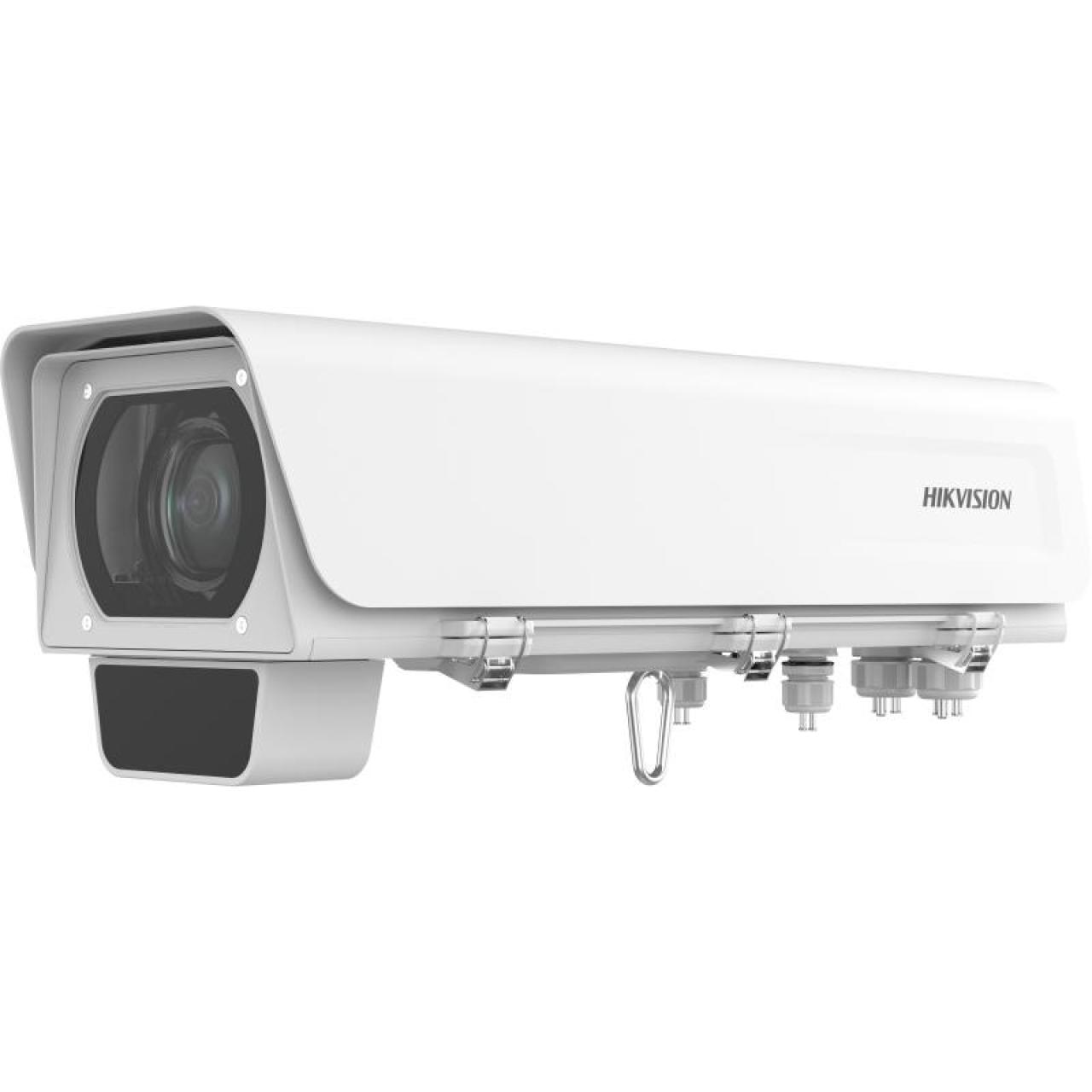

32MP DeepinView Varifocal Box Camera With Housing

High quality imaging with 32 MP resolution
Clear imaging against strong back light due to DWDR technology
Efficient H.265+ compression technology
3D DNR technology delivers clean and sharp images
Audio and alarm interface available

View Less

Data Sheet

Available models:

iDS-2CD72325G0/E(43-250mm)

iDS-2CD72325G0/E ^NEW

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1.61ʺ Progressive Scan CMOS
Max. Resolution7680 × 4320
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON) Black: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR.
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter. Blue glass module to reduce ghost phenomenon.

Lens
ApertureMax. F2.2
FocusAuto,Semi-auto,Manual
Focal Length & FOV43 mm to 250 mm: horizontal FOV 29.5° to 5.0°, vertical FOV 16.7° to 2.9°, diagonal FOV 34.0° to 5.6°

DORI
DORIWide: D (Detect) : 593.1 m, O (Observe) : 235.4 m, R (Recognize) : 118.6 m, I (Identify) : 59.3 m; Tele: D (Detect) : 3448.3 m, O (Observe) : 1368.4 m, R (Recognize) : 689.7 m, I (Identify) : 344.8 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 100 m
IR Wavelength850 nm

Video
Main Stream1 encoder track mode: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 3 encoder tracks mode: H.264/H.265: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592) 60 Hz: 30 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592)
Sub-Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) 3 encoder tracks mode: No
Third Stream1 encoder track mode: H.264/H.265: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Fourth Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Fifth Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 32 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.722.1/MP2L2/G.726/G.711/MP3/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/PCM/16 to 64 Kbps (AAC-LC)
Audio TypeMono sound

Network
Simultaneous Live ViewUp to 20 channels
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
ProtocolsSSL/TLS,IGMP,UPnP,WebSocket,SNMP,IPv4,DNS,Bonjour,UDP,WebSockets,RTSP,RTCP,DDNS,NTP,RTP,HTTP,ICMP,PPPoE,802.1X,DHCP,QoS,FTP,SMTP,HTTPS,SFTP,IPv6,TCP/IP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network StorageNAS (NFS, SMB/CIFS)
ClientiVMS-4200,HikCentral Professional
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)Digital WDR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Day/Night SwitchNight,Alarm Trigger,Day,Schedule,Auto
Image EnhancementHLC,3D DNR,EIS,BLC
Image Settingscontrast,saturation,white balance,brightness,gain,sharpness

Satellite Positioning
Satellite Positioning DetectionGPS

Interface
Alarm 3 inputs, 3 outputs (max. 24 VDC/VAC, 1 A)
Audio2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone, mono sound
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Video Output1 Vp-p composite output (75 Ω/CVBS), only for adjustment
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power Output12 VDC, max. 100 mA
Fiber Optical1 fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate

Event
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function
People DensitySupports up to 8 detection regions, and independent arming schedule and linkage method People density detection: supports setting density levels based on the number of people and target pixel ratio Supports scheduled data uploading

General
Power24 VAC ± 20%, 2.81 A, max. 48.2 W
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
MaterialMetal
Dimension557 mm × 205.6 mm × 189.7 mm (21.93" × 8.09" × 7.47")
Package Dimension668 mm × 443 mm × 329 mm (26.3" × 17.44" × 12.95")
WeightApprox. 9.34 kg (20.5 lb.)
With Package WeightApprox. 13.2 kg (29.1 lb.)

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015,
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
EnvironmentCE-ROHS (2011/65/EU); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);
ProtectionIP66: IEC 60529-2013
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)

Camera

Image Sensor

1.61ʺ Progressive Scan CMOS

Max. Resolution

7680 × 4320

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON) Black: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR.

Shutter Time

1/25 s to 1/100,000 s

Day & Night

IR cut filter. Blue glass module to reduce ghost phenomenon.

Lens

Aperture

Max. F2.2

Focus

Auto,Semi-auto,Manual

Focal Length & FOV

43 mm to 250 mm: horizontal FOV 29.5° to 5.0°, vertical FOV 16.7° to 2.9°, diagonal FOV 34.0° to 5.6°

DORI

Wide: D (Detect) : 593.1 m, O (Observe) : 235.4 m, R (Recognize) : 118.6 m, I (Identify) : 59.3 m; Tele: D (Detect) : 3448.3 m, O (Observe) : 1368.4 m, R (Recognize) : 689.7 m, I (Identify) : 344.8 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 100 m

IR Wavelength

850 nm

Video

Main Stream

1 encoder track mode: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 3 encoder tracks mode: H.264/H.265: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592) 60 Hz: 30 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592)

Sub-Stream

1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) 3 encoder tracks mode: No

Third Stream

1 encoder track mode: H.264/H.265: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No

Fourth Stream

1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No

Fifth Stream

1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 32 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Audio Compression

G.722.1/MP2L2/G.726/G.711/MP3/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/PCM/16 to 64 Kbps (AAC-LC)

Audio Type

Mono sound

Network

Simultaneous Live View

Up to 20 channels

API

ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP

Protocols

SSL/TLS,IGMP,UPnP,WebSocket,SNMP,IPv4,DNS,Bonjour,UDP,WebSockets,RTSP,RTCP,DDNS,NTP,RTP,HTTP,ICMP,PPPoE,802.1X,DHCP,QoS,FTP,SMTP,HTTPS,SFTP,IPv6,TCP/IP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Network Storage

NAS (NFS, SMB/CIFS)

Client

iVMS-4200,HikCentral Professional

Web Browser

Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Wide Dynamic Range (WDR)

Digital WDR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Day/Night Switch

Night,Alarm Trigger,Day,Schedule,Auto

Image Enhancement

HLC,3D DNR,EIS,BLC

Image Settings

contrast,saturation,white balance,brightness,gain,sharpness

Satellite Positioning

Satellite Positioning Detection

GPS

Interface

Alarm

3 inputs, 3 outputs (max. 24 VDC/VAC, 1 A)

Audio

2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone, mono sound

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Video Output

1 Vp-p composite output (75 Ω/CVBS), only for adjustment

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power Output

12 VDC, max. 100 mA

Fiber Optical

1 fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate

Event

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function

People Density

Supports up to 8 detection regions, and independent arming schedule and linkage method People density detection: supports setting density levels based on the number of people and target pixel ratio Supports scheduled data uploading

General

Power

24 VAC ± 20%, 2.81 A, max. 48.2 W

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, pixel counter

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)

Material

Metal

Dimension

557 mm × 205.6 mm × 189.7 mm (21.93" × 8.09" × 7.47")

Package Dimension

668 mm × 443 mm × 329 mm (26.3" × 17.44" × 12.95")

Weight

Approx. 9.34 kg (20.5 lb.)

With Package Weight

Approx. 13.2 kg (29.1 lb.)

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015,

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1

Environment

CE-ROHS (2011/65/EU); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);

Protection

IP66: IEC 60529-2013

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)

Camera

Image Sensor1.61ʺ Progressive Scan CMOS
Max. Resolution7680 × 4320
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON) Black: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR.
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter. Blue glass module to reduce ghost phenomenon.

Lens

ApertureMax. F2.2
FocusAuto,Semi-auto,Manual
Focal Length & FOV43 mm to 250 mm: horizontal FOV 29.5° to 5.0°, vertical FOV 16.7° to 2.9°, diagonal FOV 34.0° to 5.6°

DORI

DORIWide: D (Detect) : 593.1 m, O (Observe) : 235.4 m, R (Recognize) : 118.6 m, I (Identify) : 59.3 m; Tele: D (Detect) : 3448.3 m, O (Observe) : 1368.4 m, R (Recognize) : 689.7 m, I (Identify) : 344.8 m

Illuminator

Supplement Light TypeIR
Supplement Light RangeUp to 100 m
IR Wavelength850 nm

Video

Main Stream1 encoder track mode: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 3 encoder tracks mode: H.264/H.265: 50 Hz: 25 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592) 60 Hz: 30 fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592)
Sub-Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) 3 encoder tracks mode: No
Third Stream1 encoder track mode: H.264/H.265: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Fourth Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Fifth Stream1 encoder track mode: H.264/H.265/MJPEG: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 3 encoder tracks mode: No
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 32 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.722.1/MP2L2/G.726/G.711/MP3/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/PCM/16 to 64 Kbps (AAC-LC)
Audio TypeMono sound

Network

Simultaneous Live ViewUp to 20 channels
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
ProtocolsSSL/TLS,IGMP,UPnP,WebSocket,SNMP,IPv4,DNS,Bonjour,UDP,WebSockets,RTSP,RTCP,DDNS,NTP,RTP,HTTP,ICMP,PPPoE,802.1X,DHCP,QoS,FTP,SMTP,HTTPS,SFTP,IPv6,TCP/IP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network StorageNAS (NFS, SMB/CIFS)
ClientiVMS-4200,HikCentral Professional
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Wide Dynamic Range (WDR)Digital WDR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Day/Night SwitchNight,Alarm Trigger,Day,Schedule,Auto
Image EnhancementHLC,3D DNR,EIS,BLC
Image Settingscontrast,saturation,white balance,brightness,gain,sharpness

Satellite Positioning

Satellite Positioning DetectionGPS

Interface

Alarm 3 inputs, 3 outputs (max. 24 VDC/VAC, 1 A)
Audio2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone, mono sound
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Video Output1 Vp-p composite output (75 Ω/CVBS), only for adjustment
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power Output12 VDC, max. 100 mA
Fiber Optical1 fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate

Event

LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function

People DensitySupports up to 8 detection regions, and independent arming schedule and linkage method People density detection: supports setting density levels based on the number of people and target pixel ratio Supports scheduled data uploading

General

Power24 VAC ± 20%, 2.81 A, max. 48.2 W
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
MaterialMetal
Dimension557 mm × 205.6 mm × 189.7 mm (21.93" × 8.09" × 7.47")
Package Dimension668 mm × 443 mm × 329 mm (26.3" × 17.44" × 12.95")
WeightApprox. 9.34 kg (20.5 lb.)
With Package WeightApprox. 13.2 kg (29.1 lb.)

Approval

EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015,
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
EnvironmentCE-ROHS (2011/65/EU); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);
ProtectionIP66: IEC 60529-2013
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
