IPC-B620HA-LZU/SL

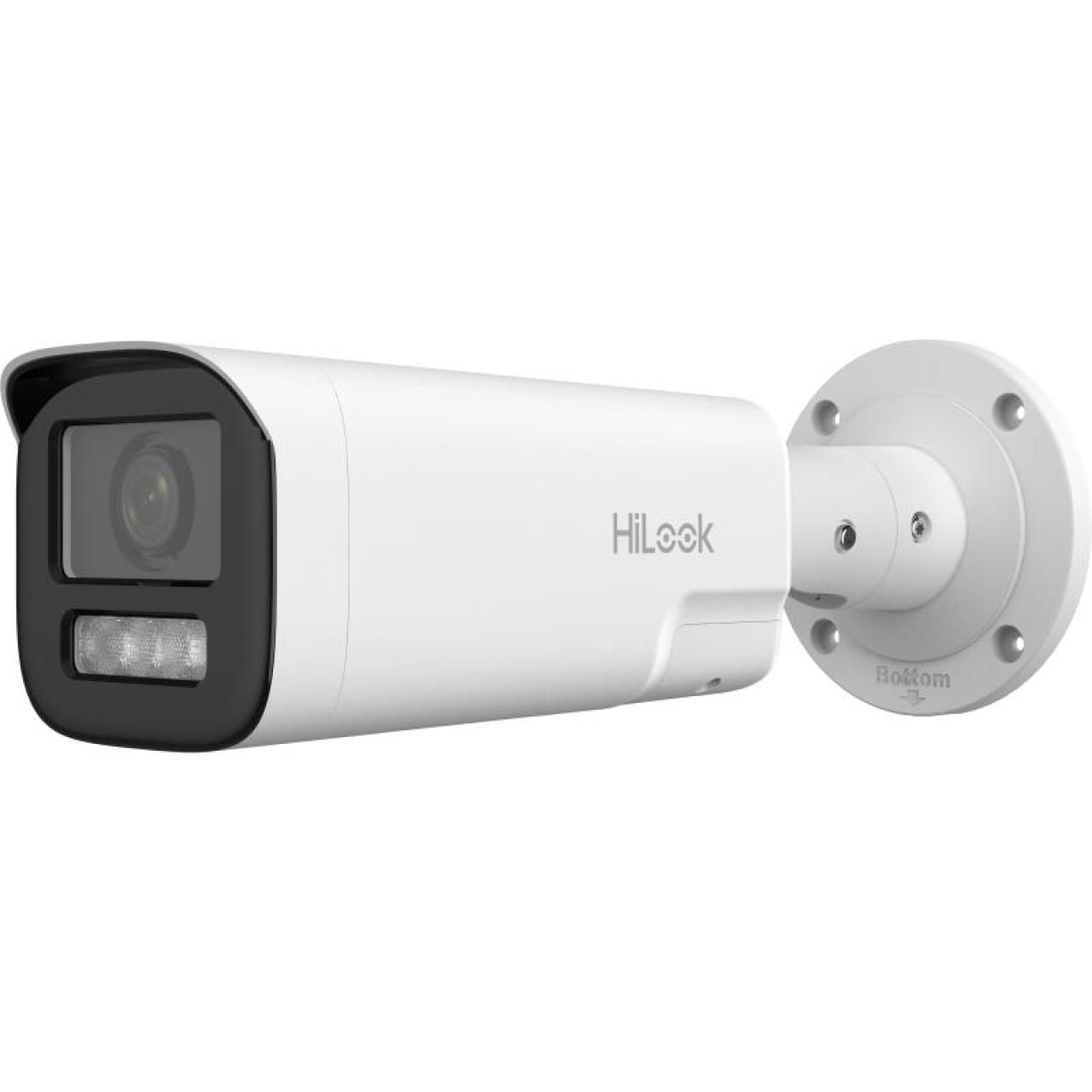

2 MP Dual Light MD 2.0 Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Clear imaging even with strong back lighting due to DWDR technology
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

IPC-B620HA-LZU/SL(2.8-12mm)(HiLookSTD)
IPC-B620HA-LZU/SL
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.9" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 50 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • ClientiVMS-4200,HiLookVision
  • Web BrowserPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Built-in MicrophoneYes,1 built-in microphone
  • Built-in SpeakerMax. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
  • General
  • Power12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
  • MaterialMetal
  • Dimension Ø105 mm × 285.8 mm (Ø4.13" × 11.25")
  • Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
  • WeightApprox. 705 g (1.7 lb.)
  • With Package WeightApprox. 1285 g (2.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,mirror,password reset via email,password protection,anti-banding
  • Flashing LightYes
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
