AcuSeek NEW HOT
NEW
add compare icon

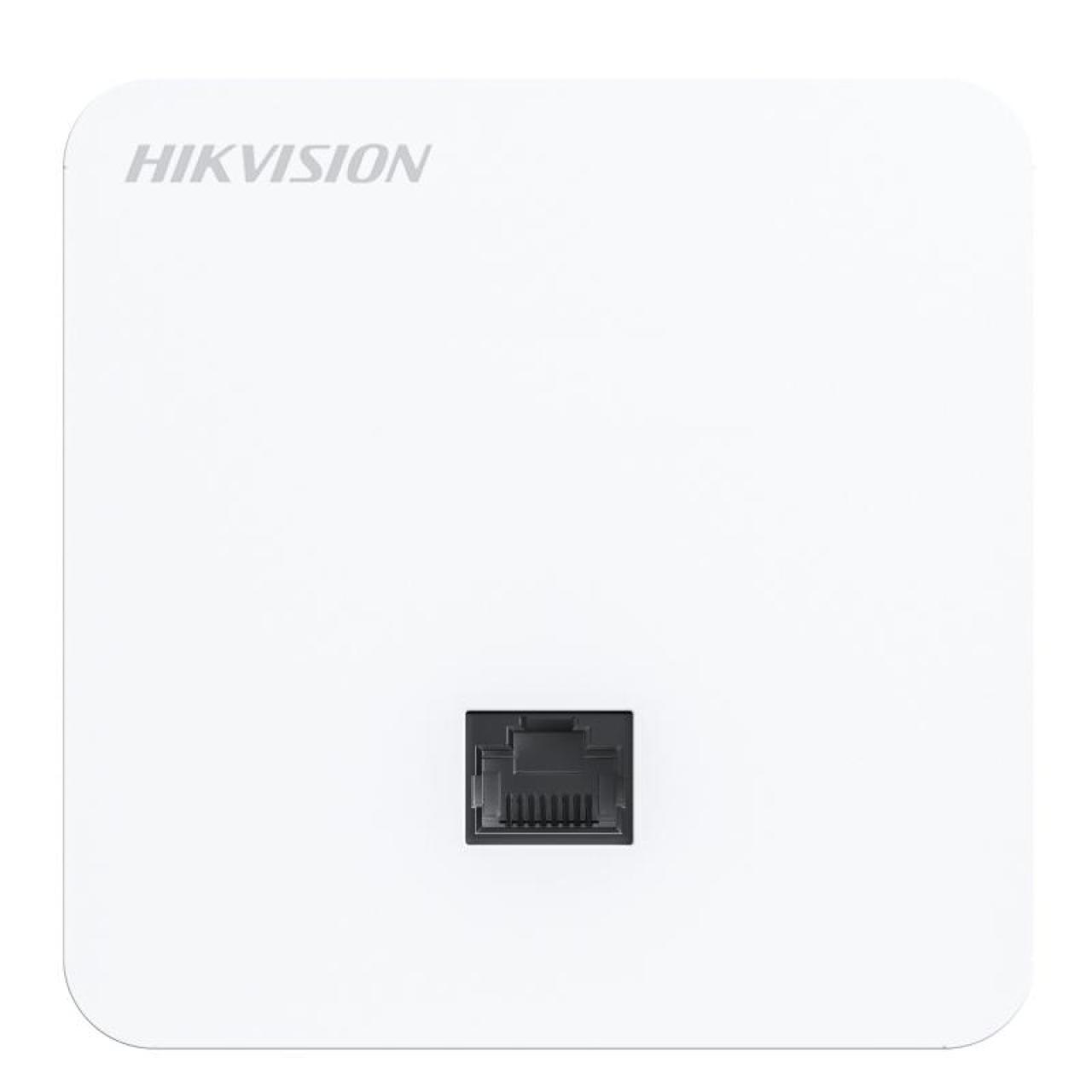

Wi-Fi 6 1800M In-Wall Access Point

  • 1 × Gigabit PoE in port,1 × Gigabit RJ45 port
  • Wi-Fi 6 Dual Band 1800 Mbps
  • 86 mm Wall Junction Box for Easy Installation
  • Seamless Roaming
  • Wide Signal Coverage
  • Reliable Wi-Fi Connection
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3WAP6118-EI
View more View Less
DS-3WAP6118-EI NEW
Data Sheet

Specification

  • General
  • Net Weight0.13 kg (0.29 lb)
  • Gross Weight0.19 kg (0.42 lb)
  • Installation ModeIn-Wall Mounting
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 90% (no condensation)
  • Storage Temperature-40°C to 70°C (-40°F to 158°F)
  • Storage Humidity5% to 95% (no condensation)
  • Product Dimensions (W × H × D)86 mm × 86 mm × 40.6 mm
  • Packing List1800 M Access Point × 1, Screw Pack × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
  • Power Supply MethodPoE power supply: IEEE 802.3af, IEEE 802.3at
  • Power ConsumptionStandby Power Consumption: 4.5W Typical Power Consumption: 9W Maximum Power Consumption: 14W
  • Wireless Parameter
  • Wireless SpeedMax: 1775 Mbps; 2.4G: 574 Mbps; 5G: 1201 Mbps;
  • Wireless StandardWi-Fi 6
  • Working Frequency BandRadio 1: 5G (11a/n/ac/ax); Radio 2: 2.4G (11b/g/n/ax);
  • Bandwidth2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
  • Recommended Coverage RangeRecommended Coverage Range: 40 m², the radius in an open environment is 15 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
  • ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA
  • Max. Number of Connected Clients256
  • Recommended Number of Connected Clients100
  • Transmitting Power2.4G: Combined power: 23 dBm； 5G: Combined power: 21 dBm； Note: The actual transmission power varies according to regulations in different countries and regions；
  • Wireless SecurityWPA2-PSK, WPA-WPA2-PSK, WPA3-PSK, WPA2-WPA3-PSK
  • AntennaIntegrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna Gain2.4 GHz: 2.4 dBi 5 GHz: 2.5 dBi
  • RF DesignDual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
  • FEM2.4 GHz: 2 x iFEM 5 GHz: 2 x iFEM
  • Hardware Specifications
  • Ports1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
  • RESET1 × Reset hole
  • Software Specifications
  • Max. Number of Wireless SSIDs8
  • Internet Access ModeDHCP,Static
  • VLAN ID Range1~4000
  • Max. Number of VLANs8
  • Software Features
  • Operation ModeAP mode (default); Routing mode;
  • Wireless ManagementSupport wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless 802.11k/v/r roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association; Support Band steering; Support AP load balancing; Supports airtime scheduling (ATF); Support smart antenna technology (beamforming), improving the signal's strength on clients;
  • InterfaceSupport uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN; Support IPTV;
  • IP ServicesSupport DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
  • Service and SupportSupport NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management; Support CAPWAP DTLS encryption;
  • Approval
  • EMCCE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
  • SafetyCB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
  • RadioEN 50385, EN IEC 62311, EN 62311, EN IEC 62368-1, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 300 328, EN 301 893, EN 300 440
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Net Weight
0.13 kg (0.29 lb)
Gross Weight
0.19 kg (0.42 lb)
Installation Mode
In-Wall Mounting
Working Temperature
0°C to 40°C (32°F to 104°F)
Working Humidity
10% to 90% (no condensation)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
5% to 95% (no condensation)
Product Dimensions (W × H × D)
86 mm × 86 mm × 40.6 mm
Packing List
1800 M Access Point × 1, Screw Pack × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method
PoE power supply: IEEE 802.3af, IEEE 802.3at
Power Consumption
Standby Power Consumption: 4.5W Typical Power Consumption: 9W Maximum Power Consumption: 14W
Wireless Parameter
Wireless Speed
Max: 1775 Mbps; 2.4G: 574 Mbps; 5G: 1201 Mbps;
Wireless Standard
Wi-Fi 6
Working Frequency Band
Radio 1: 5G (11a/n/ac/ax); Radio 2: 2.4G (11b/g/n/ax);
Bandwidth
2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
Recommended Coverage Range
Recommended Coverage Range: 40 m², the radius in an open environment is 15 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Modulation
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA
Max. Number of Connected Clients
256
Recommended Number of Connected Clients
100
Transmitting Power
2.4G: Combined power: 23 dBm； 5G: Combined power: 21 dBm； Note: The actual transmission power varies according to regulations in different countries and regions；
Wireless Security
WPA2-PSK, WPA-WPA2-PSK, WPA3-PSK, WPA2-WPA3-PSK
Antenna
Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Antenna Gain
2.4 GHz: 2.4 dBi 5 GHz: 2.5 dBi
RF Design
Dual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
FEM
2.4 GHz: 2 x iFEM 5 GHz: 2 x iFEM
Hardware Specifications
Ports
1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET
1 × Reset hole
Software Specifications
Max. Number of Wireless SSIDs
8
Internet Access Mode
DHCP,Static
VLAN ID Range
1~4000
Max. Number of VLANs
8
Software Features
Operation Mode
AP mode (default); Routing mode;
Wireless Management
Support wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless 802.11k/v/r roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association; Support Band steering; Support AP load balancing; Supports airtime scheduling (ATF); Support smart antenna technology (beamforming), improving the signal's strength on clients;
Interface
Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN; Support IPTV;
IP Services
Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Service and Support
Support NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management; Support CAPWAP DTLS encryption;
Approval
EMC
CE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
Safety
CB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11: 2017)
Chemistry
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio
EN 50385, EN IEC 62311, EN 62311, EN IEC 62368-1, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 300 328, EN 301 893, EN 300 440
