AcuSeek NEW HOT
NEW
add compare icon

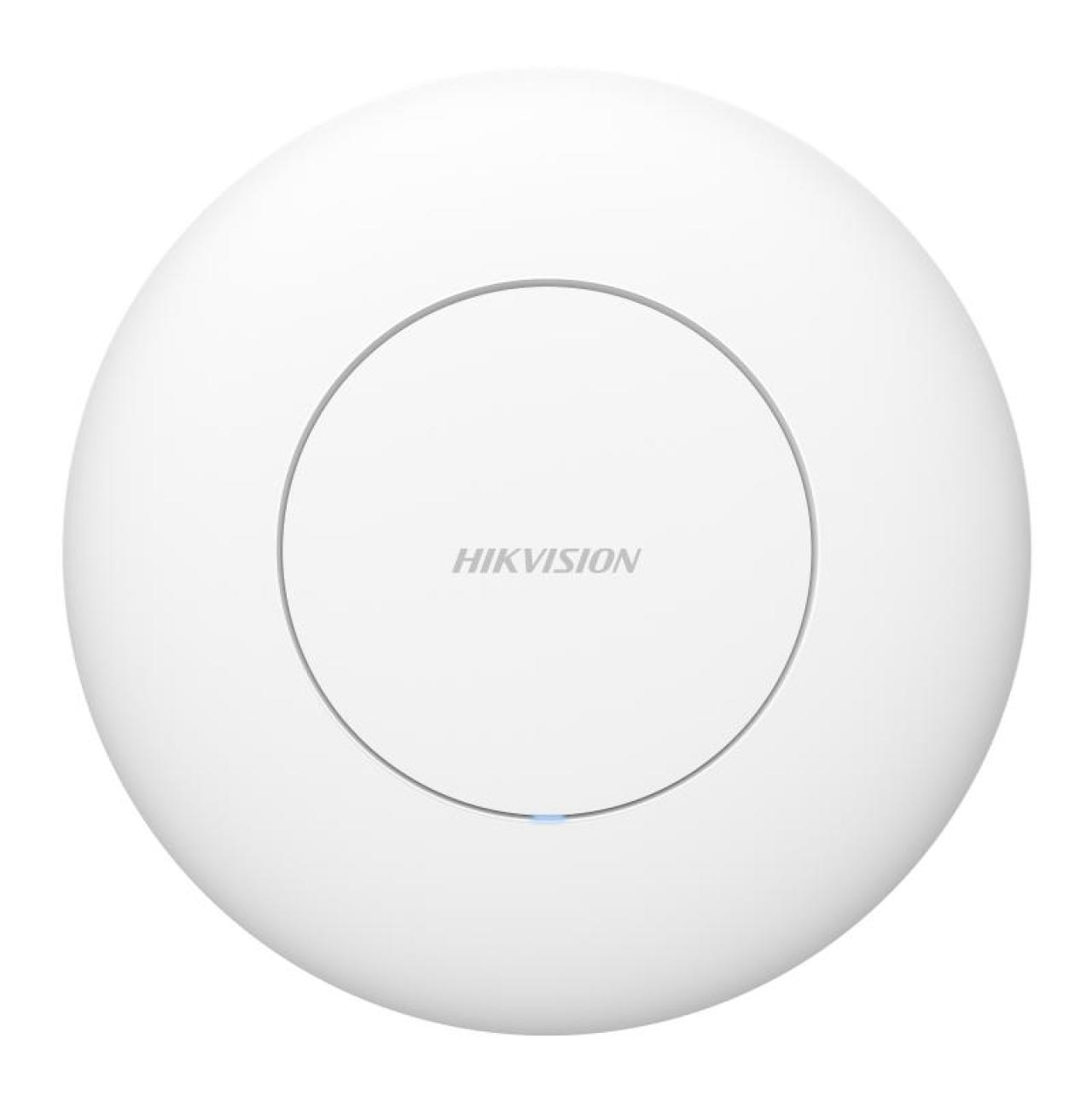

Wi-Fi 5 1200M Ceiling Access Point

  • 1 × Gigabit PoE in port,1 × Gigabit RJ45 port
  • 802.11ac Wave 2 1200 Mbps
  • Auto RF Optimization
  • Wide Signal Coverage
  • Reliable Wi-Fi Connection
  • Outstanding Wall Penetration
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3WAP5212-EI
View more View Less
DS-3WAP5212-EI NEW
Data Sheet

Specification

  • General
  • Net Weight0.36 kg (0.79 lb)
  • Gross Weight0.6 kg (1.32 lb)
  • Installation ModeCeiling Mounting
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 90% (no condensation)
  • Storage Temperature-40°C to 70°C (-40°F to 158°F)
  • Storage Humidity5% to 95% (no condensation)
  • Product Dimensions (W × H × D)Ø220 mm × 49.7 mm (excluding bracket）
  • Packing List1200 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
  • Power Supply MethodDC power supply: 12 V, 1.5 A; PoE power supply: IEEE 802.3at;
  • Power ConsumptionStandby Power Consumption: 4W Typical Power Consumption: 9W Maximum Power Consumption: 18W
  • Wireless Parameter
  • Wireless SpeedMax: 1167 Mbps; 2.4G: 300 Mbps; 5G: 867 Mbps;
  • Wireless StandardWi-Fi 5
  • Working Frequency BandRadio 1: 5G (11a/n/ac); Radio 2: 2.4G (11b/g/n);
  • Bandwidth2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
  • Recommended Coverage RangeRecommended Coverage Range: 140 m², the radius in an open environment is 25 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
  • ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Max. Number of Connected Clients128
  • Recommended Number of Connected Clients80
  • Transmitting Power2.4G: Combined power: 28 dBm; 5G: Combined power: 28 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
  • Wireless SecurityWPA2-PSK, WPA-WPA2-PSK
  • Antenna2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
  • Antenna Gain2.4 GHz: 3.5 dBi 5 GHz: 4.5 dBi
  • RF DesignDual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
  • FEM2.4 GHz: 2 x eFEM 5 GHz: 2 x eFEM
  • Hardware Specifications
  • Ports1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
  • RESET1 × Reset hole
  • Software Specifications
  • Max. Number of Wireless SSIDs7
  • Internet Access ModeDHCP,Static
  • VLAN ID Range1~4000
  • Max. Number of VLANs8
  • Software Features
  • Operation ModeAP mode (default); Routing mode;
  • Wireless ManagementSupport wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless 802.11k/v roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association; Support Band steering; Support AP load balancing; Support smart antenna technology (beamforming), improving the signal's strength on clients;
  • InterfaceSupport uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
  • IP ServicesSupport DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
  • Service and SupportSupport NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management; Support CAPWAP DTLS encryption;
  • Approval
  • EMCCE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
  • SafetyCB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11:2017)
  • ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
  • RadioEN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Net Weight
0.36 kg (0.79 lb)
Gross Weight
0.6 kg (1.32 lb)
Installation Mode
Ceiling Mounting
Working Temperature
0°C to 40°C (32°F to 104°F)
Working Humidity
10% to 90% (no condensation)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
5% to 95% (no condensation)
Product Dimensions (W × H × D)
Ø220 mm × 49.7 mm (excluding bracket）
Packing List
1200 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method
DC power supply: 12 V, 1.5 A; PoE power supply: IEEE 802.3at;
Power Consumption
Standby Power Consumption: 4W Typical Power Consumption: 9W Maximum Power Consumption: 18W
Wireless Parameter
Wireless Speed
Max: 1167 Mbps; 2.4G: 300 Mbps; 5G: 867 Mbps;
Wireless Standard
Wi-Fi 5
Working Frequency Band
Radio 1: 5G (11a/n/ac); Radio 2: 2.4G (11b/g/n);
Bandwidth
2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
Recommended Coverage Range
Recommended Coverage Range: 140 m², the radius in an open environment is 25 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Modulation
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Max. Number of Connected Clients
128
Recommended Number of Connected Clients
80
Transmitting Power
2.4G: Combined power: 28 dBm; 5G: Combined power: 28 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless Security
WPA2-PSK, WPA-WPA2-PSK
Antenna
2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
Antenna Gain
2.4 GHz: 3.5 dBi 5 GHz: 4.5 dBi
RF Design
Dual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
FEM
2.4 GHz: 2 x eFEM 5 GHz: 2 x eFEM
Hardware Specifications
Ports
1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET
1 × Reset hole
Software Specifications
Max. Number of Wireless SSIDs
7
Internet Access Mode
DHCP,Static
VLAN ID Range
1~4000
Max. Number of VLANs
8
Software Features
Operation Mode
AP mode (default); Routing mode;
Wireless Management
Support wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless 802.11k/v roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association; Support Band steering; Support AP load balancing; Support smart antenna technology (beamforming), improving the signal's strength on clients;
Interface
Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
IP Services
Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Service and Support
Support NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management; Support CAPWAP DTLS encryption;
Approval
EMC
CE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
Safety
CB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11:2017)
Chemistry
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio
EN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
