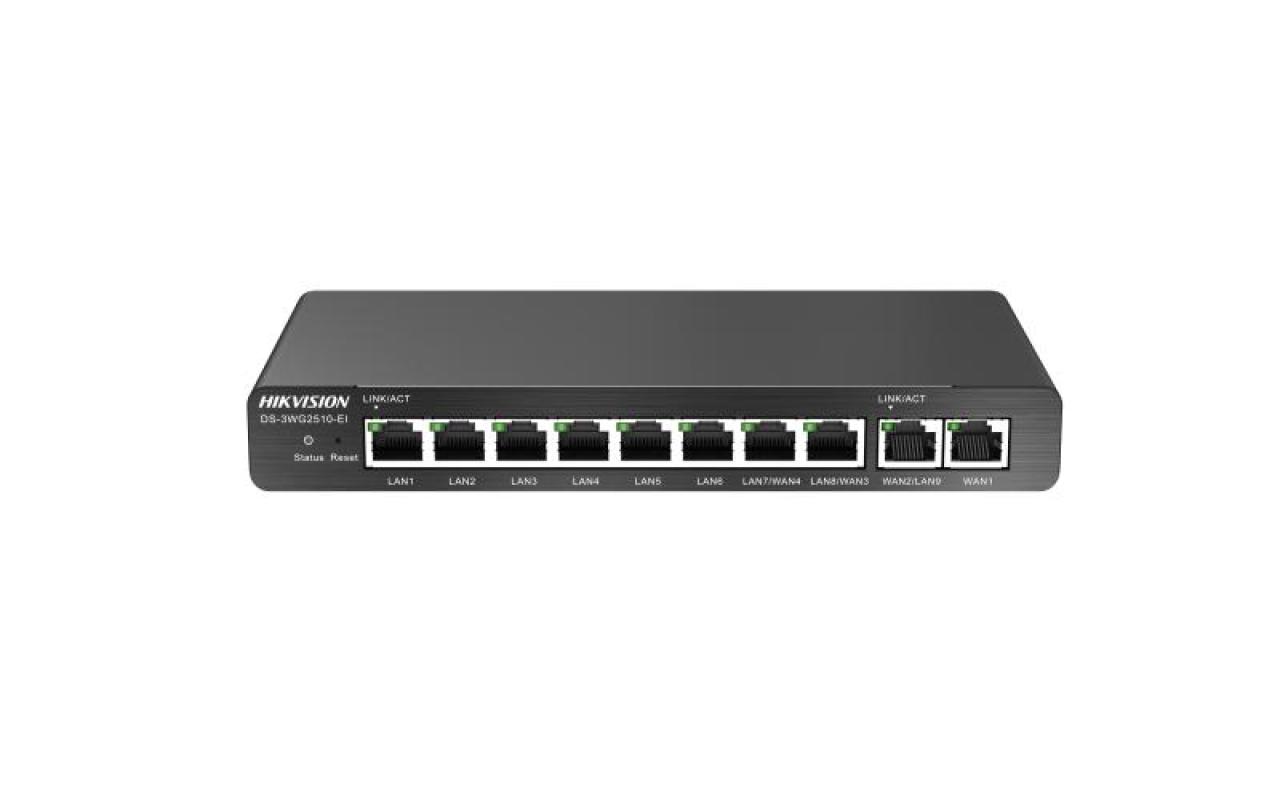

All in One 10 Port Router

Name: All in One 10 Port Router
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

8 Gigabit LAN Ports with 2 LAN/WAN Switchable
2 Gigabit WAN Ports with 1 WAN/LAN Switchable
Max. 2000 Mbps Throughput
Intergrated AP Controller
Support Multiple VPNs Including IPsec, L2TP, PPTP, OpenVPN
Support Powerful Security Features Including Firewall Policies, DDoS Defending, IP/MAC/URL Filtering, ARP Defending, etc.
Support Behavior Management

View Less

Data Sheet

Available models:

DS-3WG2510-EI

View more View Less

DS-3WG2510-EI ^NEW

Specification
Resources
Accessories

Data Sheet

General
ShellMetal
Net Weight0.58 kg (1.30 lb)
Gross Weight1.18 kg (2.60 lb)
Working Temperature0°C to 40°C (32°F to 104°F)
Working Humidity10% to 90% (no condensation)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Storage Humidity5% to 95% (no condensation)
Product Dimensions (W × H × D)206 mm × 28 mm × 110 mm (8.11'' × 1.1'' × 4.33'')
Packing ListSmart Managed Router × 1, Power Adapter × 1, Ground Wire × 1, Foot Pad × 4, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply MethodDC 12 V, 1 A
Power Consumption12 W

Hardware Specifications
Ports10 × Gigabit RJ45 port
Number of Fixed WAN Ports1
Number of Fixed LAN Ports6
Number of LAN/WAN Switchable Ports3

Software Specifications
Recommended Device Capacity (Gateway Mode)250
Recommended Uplink Bandwidth (Gateway Mode)2000 Mbps
Networking MethodGateway mode, AC mode
Managed AP CapacityGateway mode: 16； AC mode: 64；
Internet Access ModeDHCP, PPPoE, Static
VLAN ID Range1~4000
Max. Number of DHCP Address Assignments1500
Max Static DNS Entries128
Max Custom DNS Servers128
Max Static Routes128
Max Policy-Based Routes32
Max Displayed Authenticated Devices1000
IPsec VPN Client Bandwidth (Up/Down) 430 Mbps
L2TP VPN Client Bandwidth (Up/Down)630 Mbps
PPTP VPN Client Bandwidth (Up/Down)870 Mbps
OpenVPN Client Bandwidth (Up/Down)200 Mbps
Max Port Forwarding Rules256
NAT Session Table Size60000

Software Features
Wireless ManagementSupport wireless configuration； Support RF configuration； Support health mode； Support Guest SSID； Support wireless roaming； Support wireless optimization； Support wireless SSID speed limiting； Support wireless RF speed limiting； Support wireless smart speed limiting； Support wireless client speed limiting； Support weak-signal access control； Support weak-signal kicking offline； Support roaming sensitivity adjustment； Support wireless access control； Support wireless client association； Support AP load balancing；
WANSupport DHCP/static/PPPoE internet access methods; Support WAN VLAN configuration; Support WAN NAT configuration; Support WAN MTU configuration; Support multi-WAN; Support both load balancing and active/standby load modes; Support connection-based load balancing policy; Support source IP-based load balancing policy; Support policy routing for specific line forwarding；
LANSupport port-based VLAN assignment; Support MAC address learning; Support DHCP address allocation; Support DHCP address binding; Support VLAN isolation；
ACLSupport IPv4-based access control; Support IPv6-based access control; Support MAC-based access control；
SecuritySupport ARP protection; Support MAC filtering; Support connection limit; Support port mapping; Support attack prevention; Support security zone；
Behavior ManagementSupport IP and time-based application control; Support website filtering; Support egress flow control; Support VPN flow control policy; Support PPPoE flow control policy; Support custom flow control policy; Support parental control；
Portal AuthenticationSupport account authentication; Support one-click authentication; Support certificate authentication; Support Facebook authentication;
Local AuthenticationSupport account authentication; Support authorization authentication; Support QR code authentication；
Third-party Server AuthenticationSupport CMCC2.0 Portal; Support RADIUS service；
RoutingSupport IPv4/IPv6 static routing; Support IPv4/IPv6 policy routing；
IP ServicesSupport Oray Dynamic DNS; Support No-IP Dynamic DNS; Support 3322.org Dynamic DNS; Support Cloudflare Dynamic DNS; Support Alibaba Cloud Dynamic DNS; Support ComExe Dynamic DNS; Support Dyn Dynamic DNS; Support UPnP; Support PPPoE server; Support DNS policy；
VPNSupport IPsec VPN client； Support IPsec VPN server； Support L2TP VPN client； Support L2TP VPN server； Support PPTP VPN client； Support PPTP VPN server； Support OpenVPN client； Support OpenVPN server；
Service and SupportSupport NAT traversal service； Support audit logs； Support fault diagnosis； Support fault alarms； Support one-click fault collection； Support whole network IP conflict detection； Support network diagnostic tools； Support SSH； Support cloud service diagnosis； Support port mirroring； Support local upgrade； Support online upgrade； Support cloud services； Support APP management； Support port static aggregation； Support CAPWAP DTLS encryption；

Approval
EMCCE-EMC (EN 55032:2015+A11: 2020+A1: 2020 EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024 EN 61000-3-3: 2013+A1: 2019+A2: 2021 EN 55035: 2017+A11: 2020)
SafetyCB (IEC 62368-1: 2018), CE-LVD (EN IEC 62368-1: 2020+ A11: 2020)
ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

General

Shell

Metal

Net Weight

0.58 kg (1.30 lb)

Gross Weight

1.18 kg (2.60 lb)

Working Temperature

0°C to 40°C (32°F to 104°F)

Working Humidity

10% to 90% (no condensation)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Storage Humidity

5% to 95% (no condensation)

Product Dimensions (W × H × D)

206 mm × 28 mm × 110 mm (8.11'' × 1.1'' × 4.33'')

Packing List

Smart Managed Router × 1, Power Adapter × 1, Ground Wire × 1, Foot Pad × 4, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1

Power Supply Method

DC 12 V, 1 A

Power Consumption

12 W

Hardware Specifications

Ports

10 × Gigabit RJ45 port

Number of Fixed WAN Ports

Number of Fixed LAN Ports

Number of LAN/WAN Switchable Ports

Software Specifications

Recommended Device Capacity (Gateway Mode)

250

Recommended Uplink Bandwidth (Gateway Mode)

2000 Mbps

Networking Method

Gateway mode, AC mode

Managed AP Capacity

Gateway mode: 16； AC mode: 64；

Internet Access Mode

DHCP, PPPoE, Static

VLAN ID Range

1~4000

Max. Number of DHCP Address Assignments

1500

Max Static DNS Entries

128

Max Custom DNS Servers

128

Max Static Routes

128

Max Policy-Based Routes

Max Displayed Authenticated Devices

1000

IPsec VPN Client Bandwidth (Up/Down)

430 Mbps

L2TP VPN Client Bandwidth (Up/Down)

630 Mbps

PPTP VPN Client Bandwidth (Up/Down)

870 Mbps

OpenVPN Client Bandwidth (Up/Down)

200 Mbps

Max Port Forwarding Rules

256

NAT Session Table Size

60000

Software Features

Wireless Management

Support wireless configuration； Support RF configuration； Support health mode； Support Guest SSID； Support wireless roaming； Support wireless optimization； Support wireless SSID speed limiting； Support wireless RF speed limiting； Support wireless smart speed limiting； Support wireless client speed limiting； Support weak-signal access control； Support weak-signal kicking offline； Support roaming sensitivity adjustment； Support wireless access control； Support wireless client association； Support AP load balancing；

WAN

Support DHCP/static/PPPoE internet access methods; Support WAN VLAN configuration; Support WAN NAT configuration; Support WAN MTU configuration; Support multi-WAN; Support both load balancing and active/standby load modes; Support connection-based load balancing policy; Support source IP-based load balancing policy; Support policy routing for specific line forwarding；

LAN

Support port-based VLAN assignment; Support MAC address learning; Support DHCP address allocation; Support DHCP address binding; Support VLAN isolation；

ACL

Support IPv4-based access control; Support IPv6-based access control; Support MAC-based access control；

Security

Support ARP protection; Support MAC filtering; Support connection limit; Support port mapping; Support attack prevention; Support security zone；

Behavior Management

Support IP and time-based application control; Support website filtering; Support egress flow control; Support VPN flow control policy; Support PPPoE flow control policy; Support custom flow control policy; Support parental control；

Portal Authentication

Support account authentication; Support one-click authentication; Support certificate authentication; Support Facebook authentication;

Local Authentication

Support account authentication; Support authorization authentication; Support QR code authentication；

Third-party Server Authentication

Support CMCC2.0 Portal; Support RADIUS service；

Routing

Support IPv4/IPv6 static routing; Support IPv4/IPv6 policy routing；

IP Services

Support Oray Dynamic DNS; Support No-IP Dynamic DNS; Support 3322.org Dynamic DNS; Support Cloudflare Dynamic DNS; Support Alibaba Cloud Dynamic DNS; Support ComExe Dynamic DNS; Support Dyn Dynamic DNS; Support UPnP; Support PPPoE server; Support DNS policy；

VPN

Support IPsec VPN client； Support IPsec VPN server； Support L2TP VPN client； Support L2TP VPN server； Support PPTP VPN client； Support PPTP VPN server； Support OpenVPN client； Support OpenVPN server；

Service and Support

Support NAT traversal service； Support audit logs； Support fault diagnosis； Support fault alarms； Support one-click fault collection； Support whole network IP conflict detection； Support network diagnostic tools； Support SSH； Support cloud service diagnosis； Support port mirroring； Support local upgrade； Support online upgrade； Support cloud services； Support APP management； Support port static aggregation； Support CAPWAP DTLS encryption；

Approval

EMC

CE-EMC (EN 55032:2015+A11: 2020+A1: 2020 EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024 EN 61000-3-3: 2013+A1: 2019+A2: 2021 EN 55035: 2017+A11: 2020)

Safety

CB (IEC 62368-1: 2018), CE-LVD (EN IEC 62368-1: 2020+ A11: 2020)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
