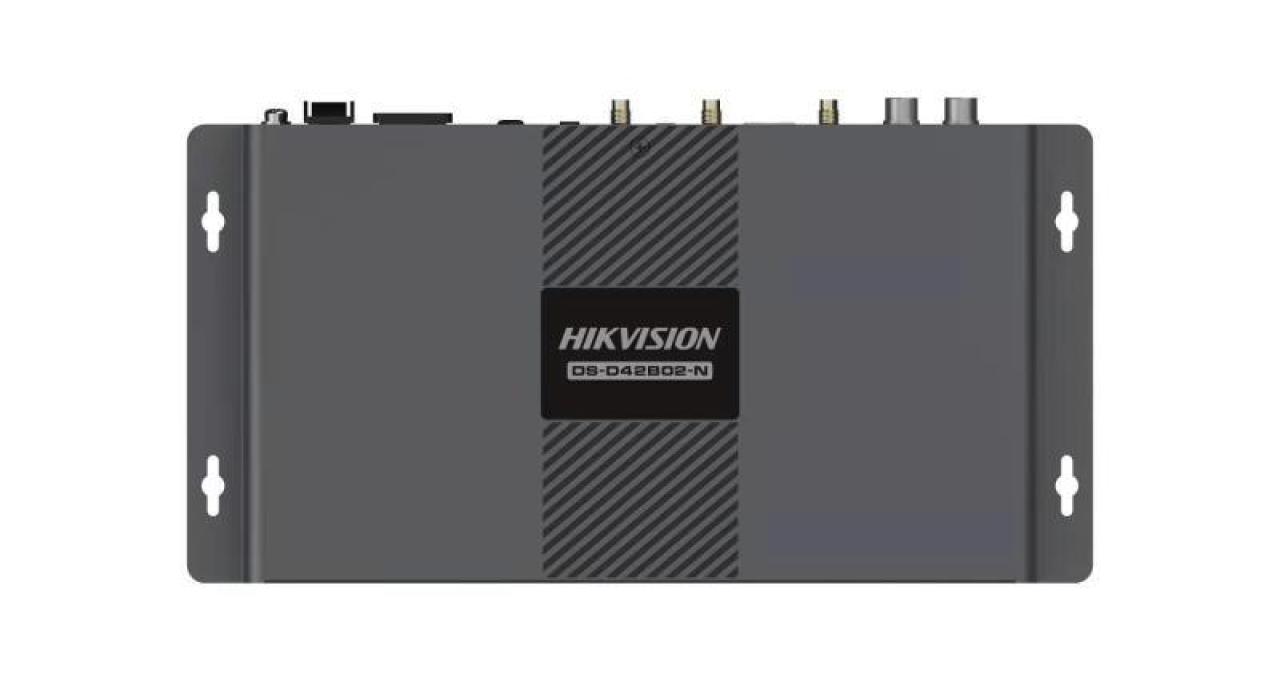

LED controller

  • Loading capacity up to 1,300,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
  • 2x Gigabit Ethernet ports
  • 1x HDMI1.4 output port, support up to 1080P@60Hz
  • 1x HDMI1.4 input port, support full-screen scaling in synchronous mode
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D42B02-N
DS-D42B02-N
Data Sheet

Specification

  • Processing Performance
  • Brightness Control1-100 Levels
  • Frame Frequency30HZ-60HZ
  • Grey Level256
  • Display Color1 Billion
  • Processing Depth8bit
  • Image ScalingSupport
  • Product Model
  • Product ModelDS-D42B02-N
  • Chassis
  • Chassis Height0.9U
  • Chassis Width3.12U
  • Product Type
  • Product TypeLED Controller
  • LED Controller Power
  • Average Consumption≤18W
  • Number of power interfaces1
  • Power interface specifications100-240V~，50/60Hz，0.6A
  • General
  • Working Temperature-20℃～+60℃
  • Storage Humidity0%RH～80%RH
  • Working Humidity0%RH～80%RH
  • Storage Temperature-40℃～+80℃
  • Packaging Size (W × H × D)385.0mm×280.0mm×75.0mm
  • Net Weight1234g
  • Gross Weight1653.6g
  • Dimensions (W × H × D)274.3mm×139.0mm×40.0mm
  • Packing List"1x Wi-Fi omnidirectional antenna 1x AC power cord 1x Quick Start Guide 1x Packing list"
  • Audio Input
  • Audio Input Interface(s)1
  • Audio Input Interface TypeHDMI INLINE
  • Video Input
  • Video Input Interface(s)1
  • Video Input Interface TypeHDMI1.4
  • Max. Input Resolution1080p@60hz
  • Video Input Resolution1080p@60hz
  • Video Input Processing CharacteristicsProcessing depth 8 BIT Sampling format: RGB:444 YUV:444 YUV:422"
  • Video Output
  • Max. Output Resolution1.3 Million
  • Loading Capacity for Video Output to LEDSingle port with load 650000 Width 64~4096 Height 64~4096
  • LED Loading Interfaces2
  • LED Loading Interface TypeRJ45
  • Number of video ring pass output interfaces1
  • Video looping output interface typeHDMI1.4
  • Video looping output resolution1080p@60hz
  • Audio Output
  • Audio Output Interface(s)1
  • Audio Output Interface Type1 LINE OUT 3.5mm audio out
  • Front Panel
  • ScreenNA
  • KeySWITCH
  • pilot lampPWR:RED, Staying on-The power supply is working properly SYS:GREEN, Flashing once every 2s-The operating system is functioning normally Staying on/off-The operating system is malfunctioning CLOUD:GREEN Staying on-The DS-D42B02-N is connected to the Internet and the connection is available Flashing once every 2s-The DS-D42B02-N is connected to VNNOX and the connection is available Flashing once every second-The DS-D42B02-N is upgrading the operating system Flashing once every 0.5s-The DS-D42B02-N is copying the upgrade package. RUN:GREEN Flashing once every second-The FPGA has no video source Flashing once every 0.5s-The FPGA is functioning normally Staying on/off-The FPGA loading is abnormal"
  • Control Interface
  • Control network port2 RJ45, 10M/100M/1000M adaptive Ethernet ports Used to connect to external networks, can support multi-device network cascade management
  • 3D interfaceNA
  • IR inputNA
  • Serial Interface1XGigabit Ethernet port
  • Light perception2XSENSOR
  • USB1XUSB 3.0
  • On-offSwitch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Processing Performance
Brightness Control
1-100 Levels
Frame Frequency
30HZ-60HZ
Grey Level
256
Display Color
1 Billion
Processing Depth
8bit
Image Scaling
Support
Product Model
Product Model
DS-D42B02-N
Chassis
Chassis Height
0.9U
Chassis Width
3.12U
Product Type
Product Type
LED Controller
LED Controller Power
Average Consumption
≤18W
Number of power interfaces
1
Power interface specifications
100-240V~，50/60Hz，0.6A
General
Working Temperature
-20℃～+60℃
Storage Humidity
0%RH～80%RH
Working Humidity
0%RH～80%RH
Storage Temperature
-40℃～+80℃
Packaging Size (W × H × D)
385.0mm×280.0mm×75.0mm
Net Weight
1234g
Gross Weight
1653.6g
Dimensions (W × H × D)
274.3mm×139.0mm×40.0mm
Packing List
"1x Wi-Fi omnidirectional antenna 1x AC power cord 1x Quick Start Guide 1x Packing list"
Audio Input
Audio Input Interface(s)
1
Audio Input Interface Type
HDMI INLINE
Video Input
Video Input Interface(s)
1
Video Input Interface Type
HDMI1.4
Max. Input Resolution
1080p@60hz
Video Input Resolution
1080p@60hz
Video Input Processing Characteristics
Processing depth 8 BIT Sampling format: RGB:444 YUV:444 YUV:422"
Video Output
Max. Output Resolution
1.3 Million
Loading Capacity for Video Output to LED
Single port with load 650000 Width 64~4096 Height 64~4096
LED Loading Interfaces
2
LED Loading Interface Type
RJ45
Number of video ring pass output interfaces
1
Video looping output interface type
HDMI1.4
Video looping output resolution
1080p@60hz
Audio Output
Audio Output Interface(s)
1
Audio Output Interface Type
1 LINE OUT 3.5mm audio out
Front Panel
Screen
NA
Key
SWITCH
pilot lamp
PWR:RED, Staying on-The power supply is working properly SYS:GREEN, Flashing once every 2s-The operating system is functioning normally Staying on/off-The operating system is malfunctioning CLOUD:GREEN Staying on-The DS-D42B02-N is connected to the Internet and the connection is available Flashing once every 2s-The DS-D42B02-N is connected to VNNOX and the connection is available Flashing once every second-The DS-D42B02-N is upgrading the operating system Flashing once every 0.5s-The DS-D42B02-N is copying the upgrade package. RUN:GREEN Flashing once every second-The FPGA has no video source Flashing once every 0.5s-The FPGA is functioning normally Staying on/off-The FPGA loading is abnormal"
Control Interface
Control network port
2 RJ45, 10M/100M/1000M adaptive Ethernet ports Used to connect to external networks, can support multi-device network cascade management
3D interface
NA
IR input
NA
Serial Interface
1XGigabit Ethernet port
Light perception
2XSENSOR
USB
1XUSB 3.0
On-off
Switch
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Processing Performance
  • Brightness Control1-100 Levels
  • Frame Frequency30HZ-60HZ
  • Grey Level256
  • Display Color1 Billion
  • Processing Depth8bit
  • Image ScalingSupport
Product Model
  • Product ModelDS-D42B02-N
Chassis
  • Chassis Height0.9U
  • Chassis Width3.12U
Product Type
  • Product TypeLED Controller
LED Controller Power
  • Average Consumption≤18W
  • Number of power interfaces1
  • Power interface specifications100-240V~，50/60Hz，0.6A
General
  • Working Temperature-20℃～+60℃
  • Storage Humidity0%RH～80%RH
  • Working Humidity0%RH～80%RH
  • Storage Temperature-40℃～+80℃
  • Packaging Size (W × H × D)385.0mm×280.0mm×75.0mm
  • Net Weight1234g
  • Gross Weight1653.6g
  • Dimensions (W × H × D)274.3mm×139.0mm×40.0mm
  • Packing List"1x Wi-Fi omnidirectional antenna 1x AC power cord 1x Quick Start Guide 1x Packing list"
Audio Input
  • Audio Input Interface(s)1
  • Audio Input Interface TypeHDMI INLINE
Video Input
  • Video Input Interface(s)1
  • Video Input Interface TypeHDMI1.4
  • Max. Input Resolution1080p@60hz
  • Video Input Resolution1080p@60hz
  • Video Input Processing CharacteristicsProcessing depth 8 BIT Sampling format: RGB:444 YUV:444 YUV:422"
Video Output
  • Max. Output Resolution1.3 Million
  • Loading Capacity for Video Output to LEDSingle port with load 650000 Width 64~4096 Height 64~4096
  • LED Loading Interfaces2
  • LED Loading Interface TypeRJ45
  • Number of video ring pass output interfaces1
  • Video looping output interface typeHDMI1.4
  • Video looping output resolution1080p@60hz
Audio Output
  • Audio Output Interface(s)1
  • Audio Output Interface Type1 LINE OUT 3.5mm audio out
Front Panel
  • ScreenNA
  • KeySWITCH
  • pilot lampPWR:RED, Staying on-The power supply is working properly SYS:GREEN, Flashing once every 2s-The operating system is functioning normally Staying on/off-The operating system is malfunctioning CLOUD:GREEN Staying on-The DS-D42B02-N is connected to the Internet and the connection is available Flashing once every 2s-The DS-D42B02-N is connected to VNNOX and the connection is available Flashing once every second-The DS-D42B02-N is upgrading the operating system Flashing once every 0.5s-The DS-D42B02-N is copying the upgrade package. RUN:GREEN Flashing once every second-The FPGA has no video source Flashing once every 0.5s-The FPGA is functioning normally Staying on/off-The FPGA loading is abnormal"
Control Interface
  • Control network port2 RJ45, 10M/100M/1000M adaptive Ethernet ports Used to connect to external networks, can support multi-device network cascade management
  • 3D interfaceNA
  • IR inputNA
  • Serial Interface1XGigabit Ethernet port
  • Light perception2XSENSOR
  • USB1XUSB 3.0
  • On-offSwitch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
