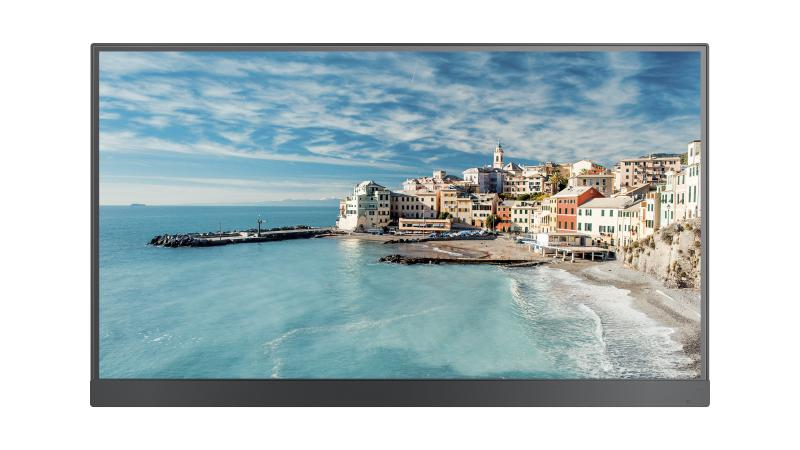

22-inch Digital Signage

Plastic shell appearance, slim frame, and all-in-one design.
Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.

View Less

Data Sheet

Available models:

DS-D6022FN-B

Specification
Resources
Accessories

Data Sheet

Display
Viewing Angle178°(H)/178°(V)
Contrast Ratio3000:1
Screen Size21.5 inch
Active Display Area478.656 mm（H） × 260.28 mm （V）
BacklightELED
Pixel Pitch0.24795 (H) mm × 0.24795 (V) mm
Resolution1920 × 1080@60 Hz
Brightness250 cd/m²
Color Depth8 bit, 16.7 M
Response Time6.5 ms
Color Gamut72% NTSC
Reliability7 × 24 h
Refresh Rate60 Hz

Built-in System
Operation SystemAndroid 8.1.0
CPUCortex-A17, 4-core, main frequency 1.6 GHZ
Memory2 GB
Built-in Storage16 GB

Internal Function
Loudspeaker2 × built-in speaker, 8 Ω 5 W

Interface
Video & Audio InputAUDIO IN × 1
Video & Audio OutputAUDIO OUT × 1
Network InterfaceLAN × 1, Wi-Fi
Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT4.0 × 2, Wi-Fi

Power
Standby Consumption≤ 10 W
Input Voltage100 to 240 VAC, 50/60 ± 3 Hz
Power Consumption≤ 40 W

Working Environment
Working Temperature0 ℃ to 40 ℃ (32 °F to 104 °F)
Working Humidity20% to 90% RH
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity5% to 90% RH

General
Material TypeDAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
Mounting TypeWall-Mounted
Product Dimensions (W × H × D)516.75 (W) × 320.03 (H) × 46.55 (D) mm (without wall-mounted backboard) (20.34'' × 12.60'' × 1.83'') 516.75 (W) × 320.03 (H) × 53.55 (D) mm (with wall-mounted backboard) (20.34'' × 12.60'' × 2.11'')
Package Dimensions (W × H × D)593 (W) × 434 (H) × 157 (D) mm (23.35'' × 17.09'' × 6.18'')
Net weight3.03 Kg (6.68 lb)
Gross weight4.63 Kg (10.21 lb)
Packing ListWall-mounted backboard × 1, screws M3 × 6, power cord × 1, remote control × 1, battery × 2, screw package × 1

Display

Viewing Angle

178°(H)/178°(V)

Contrast Ratio

3000:1

Screen Size

21.5 inch

Active Display Area

478.656 mm（H） × 260.28 mm （V）

Backlight

ELED

Pixel Pitch

0.24795 (H) mm × 0.24795 (V) mm

Resolution

1920 × 1080@60 Hz

Brightness

250 cd/m²

Color Depth

8 bit, 16.7 M

Response Time

6.5 ms

Color Gamut

72% NTSC

Reliability

7 × 24 h

Refresh Rate

60 Hz

Built-in System

Operation System

Android 8.1.0

CPU

Cortex-A17, 4-core, main frequency 1.6 GHZ

Memory

2 GB

Built-in Storage

16 GB

Internal Function

Loudspeaker

2 × built-in speaker, 8 Ω 5 W

Interface

Video & Audio Input

AUDIO IN × 1

Video & Audio Output

AUDIO OUT × 1

Network Interface

LAN × 1, Wi-Fi

Data Transmission Interface

USB 2.0 × 2, TF Card × 1, BT4.0 × 2, Wi-Fi

Power

Standby Consumption

≤ 10 W

Input Voltage

100 to 240 VAC, 50/60 ± 3 Hz

Power Consumption

≤ 40 W

Working Environment

Working Temperature

0 ℃ to 40 ℃ (32 °F to 104 °F)

Working Humidity

20% to 90% RH

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Storage Humidity

5% to 90% RH

General

Material Type

DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG

Mounting Type

Wall-Mounted

Product Dimensions (W × H × D)

516.75 (W) × 320.03 (H) × 46.55 (D) mm (without wall-mounted backboard) (20.34'' × 12.60'' × 1.83'') 516.75 (W) × 320.03 (H) × 53.55 (D) mm (with wall-mounted backboard) (20.34'' × 12.60'' × 2.11'')

Package Dimensions (W × H × D)

593 (W) × 434 (H) × 157 (D) mm (23.35'' × 17.09'' × 6.18'')

Net weight

3.03 Kg (6.68 lb)

Gross weight

4.63 Kg (10.21 lb)

Packing List

Wall-mounted backboard × 1, screws M3 × 6, power cord × 1, remote control × 1, battery × 2, screw package × 1
