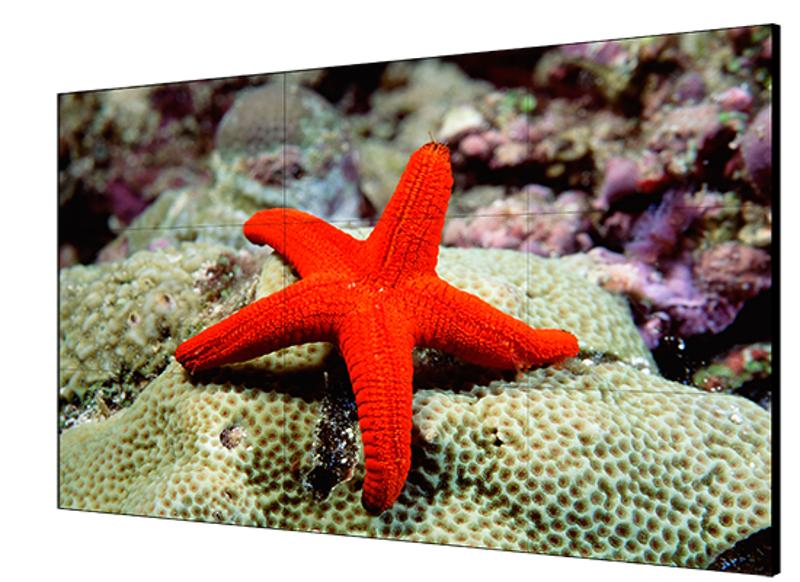

46-inch 3.5mm LCD Display Unit

  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 1920 × 1080 resolution, 178° viewing angle
  • Ultra-narrow 3.5 mm bezel design
  • Factory calibration for color uniformity
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements
View Less
View more
Sales Inquiry
DS-D2046NL-C

Especificación

  • Modelo del Producto
  • Modelo del ProductoDS-D2046NL-C
  • pantalla
  • Tamaño46 inch
  • Área de visualización activa1018.08 (H) mm × 572.67 (V) mm
  • ContraluzDirect-lit LED backlight
  • Tamaño de píxel0.53 mm
  • Costura física3.5 mm
  • Ancho de marco2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolución1920 × 1080@60 Hz (downward compatible)
  • Brillo500 cd/m²
  • Ángulo de visiónHorizontal 178°, vertical 178°
  • Profundidad del color8 bit, 16.7 M
  • Relación de contraste3500:1
  • Tiempo de respuesta8 ms (G to G)
  • Gama de colores72% NTSC
  • Tratamiento de superficiesHaze 25%, 2H
  • Interfaz
  • Entrada de video y audioHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
  • Salida de vídeo y audioDVI × 1, VGA × 1, CVBS × 1
  • Interfaz de controlRS232 IN × 1, RS232 OUT × 1
  • alimentación
  • Fuente de alimentación100-240 VAC, 50/60 Hz
  • Consumo de energía≤ 111 W
  • Consumo en espera≤ 0.5 W
  • Ambiente de trabajo
  • Temperatura de trabajo0°C to 40°C (32°F to 104°F)
  • Condiciones de Humedad20% to 90% RH (non-condensing)
  • Temperatura de almacenamiento-20°C to 65°C (-4°F to 149°F)
  • Humedad de almacenamiento5% to 90% RH (non-condensing)
  • General
  • Material de la carcasaSECC
  • Mounting Hole Pitch 600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1021.98 mm × 576.57 mm × 72.2 mm (40.24'' × 22.7'' × 2.84'')
  • Package Dimension (W × H × D)Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
  • Peso neto18.96 ± 0.5 Kg (41.80 ± 1.1 lb) for single display
  • Peso brutoCarton with two displays: 47.12 ± 0.5 Kg (103.88 ± 1.1 lb) Carton with a single display: 25.79 ± 0.5 Kg (56.86 ± 1.1 lb)
  • Lista de empaqueLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Modelo del Producto
Modelo del Producto
DS-D2046NL-C
pantalla
Tamaño
46 inch
Área de visualización activa
1018.08 (H) mm × 572.67 (V) mm
Contraluz
Direct-lit LED backlight
Tamaño de píxel
0.53 mm
Costura física
3.5 mm
Ancho de marco
2.3 mm (top/left), 1.2 mm (bottom/right)
Resolución
1920 × 1080@60 Hz (downward compatible)
Brillo
500 cd/m²
Ángulo de visión
Horizontal 178°, vertical 178°
Profundidad del color
8 bit, 16.7 M
Relación de contraste
3500:1
Tiempo de respuesta
8 ms (G to G)
Gama de colores
72% NTSC
Tratamiento de superficies
Haze 25%, 2H
Interfaz
Entrada de video y audio
HDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
Salida de vídeo y audio
DVI × 1, VGA × 1, CVBS × 1
Interfaz de control
RS232 IN × 1, RS232 OUT × 1
alimentación
Fuente de alimentación
100-240 VAC, 50/60 Hz
Consumo de energía
≤ 111 W
Consumo en espera
≤ 0.5 W
Ambiente de trabajo
Temperatura de trabajo
0°C to 40°C (32°F to 104°F)
Condiciones de Humedad
20% to 90% RH (non-condensing)
Temperatura de almacenamiento
-20°C to 65°C (-4°F to 149°F)
Humedad de almacenamiento
5% to 90% RH (non-condensing)
General
Material de la carcasa
SECC
Mounting Hole Pitch
600 (H) mm × 400 (V) mm
Product Dimension (W × H × D)
1021.98 mm × 576.57 mm × 72.2 mm (40.24'' × 22.7'' × 2.84'')
Package Dimension (W × H × D)
Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
Peso neto
18.96 ± 0.5 Kg (41.80 ± 1.1 lb) for single display
Peso bruto
Carton with two displays: 47.12 ± 0.5 Kg (103.88 ± 1.1 lb) Carton with a single display: 25.79 ± 0.5 Kg (56.86 ± 1.1 lb)
Lista de empaque
LCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Especificación
Modelo del Producto
  • Modelo del ProductoDS-D2046NL-C
pantalla
  • Tamaño46 inch
  • Área de visualización activa1018.08 (H) mm × 572.67 (V) mm
  • ContraluzDirect-lit LED backlight
  • Tamaño de píxel0.53 mm
  • Costura física3.5 mm
  • Ancho de marco2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolución1920 × 1080@60 Hz (downward compatible)
  • Brillo500 cd/m²
  • Ángulo de visiónHorizontal 178°, vertical 178°
  • Profundidad del color8 bit, 16.7 M
  • Relación de contraste3500:1
  • Tiempo de respuesta8 ms (G to G)
  • Gama de colores72% NTSC
  • Tratamiento de superficiesHaze 25%, 2H
Interfaz
  • Entrada de video y audioHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
  • Salida de vídeo y audioDVI × 1, VGA × 1, CVBS × 1
  • Interfaz de controlRS232 IN × 1, RS232 OUT × 1
alimentación
  • Fuente de alimentación100-240 VAC, 50/60 Hz
  • Consumo de energía≤ 111 W
  • Consumo en espera≤ 0.5 W
Ambiente de trabajo
  • Temperatura de trabajo0°C to 40°C (32°F to 104°F)
  • Condiciones de Humedad20% to 90% RH (non-condensing)
  • Temperatura de almacenamiento-20°C to 65°C (-4°F to 149°F)
  • Humedad de almacenamiento5% to 90% RH (non-condensing)
General
  • Material de la carcasaSECC
  • Mounting Hole Pitch 600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1021.98 mm × 576.57 mm × 72.2 mm (40.24'' × 22.7'' × 2.84'')
  • Package Dimension (W × H × D)Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
  • Peso neto18.96 ± 0.5 Kg (41.80 ± 1.1 lb) for single display
  • Peso brutoCarton with two displays: 47.12 ± 0.5 Kg (103.88 ± 1.1 lb) Carton with a single display: 25.79 ± 0.5 Kg (56.86 ± 1.1 lb)
  • Lista de empaqueLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
