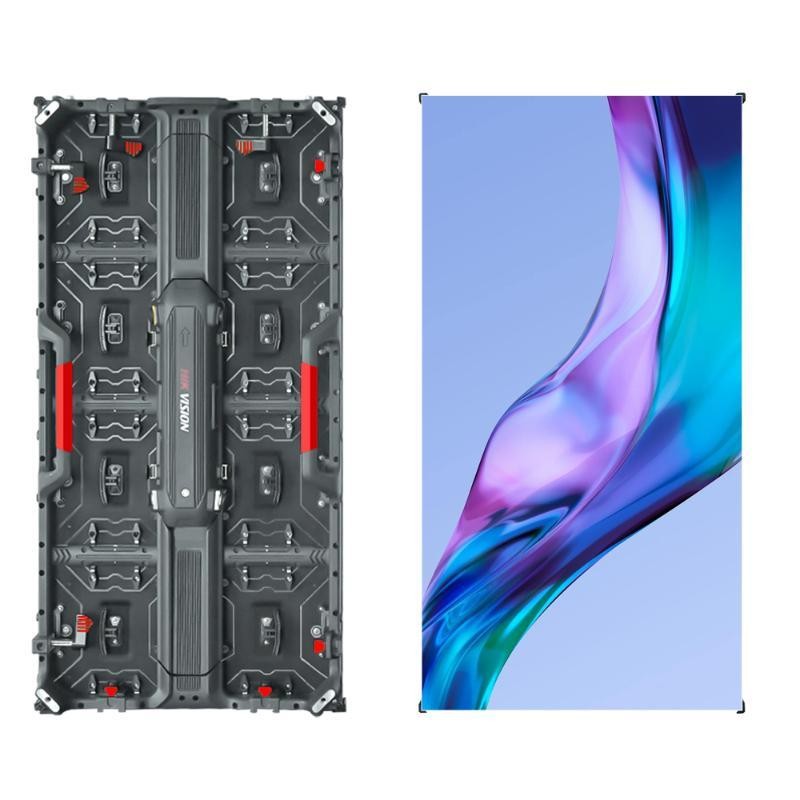

P3.9 Rental LED

  • High precision cast aluminum cabinet, ultra-thin and light weight, 500 * 1000 ≤ 13KG/cabinet, with a thickness of only 85.5mm;
  • 500X500/500X1000mm cabinets can be mixed and assembled to create a variety of shapes;
  • Both the 500x500mm and 500x1000mm cabinets use a minimalist mini control box of the same model and can be shared,Saving installation and calibrating time;
  • Optional curved lock, capable of splicing large screens with ± 10-15 ° inner arc, outer arc, 90°corner, etc;
  • The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;
  • Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;
  • Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;
  • Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9/4.8 ets;Specialized in providing overall LED display solutions for events sucas conferences，stage，product launches，and real estate。
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D4439RI-CQFL,500*1000
DS-D4439RI-CQFL,500*1000,CurvedLocker
DS-D4439RI-CQFL
Data Sheet

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91 mm
  • Modules Component2 × 4
  • Dimensions (W × H × D)500 mm × 1000 mm × 85.5 mm (19.69" × 39.4" × 3.37")
  • Resolution128 × 256
  • Area0.25 m²
  • Weight 13 Kg (28.66lb)
  • Pixel Density65536 dots/m²
  • Lamp Board Housingwith housing
  • Cabinet MaterialDie-cast aluminum
  • Maintenance MethodFront/Back Maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP40(F)/IP40(R)
  • Display
  • White Balance Brightness800 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 120°, vertical 120°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate3840 Hz
  • Grey Level14 bit
  • Display Color4.39Trillion
  • Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 500 W/m²
  • Average Consumption≤ 170 W/m²
  • Working Environment
  • Working Temperature-15-50 ℃
  • Working Humidity10% to 90% RH (non-condensing)
  • Storage Humidity10% to 90% RH (non-condensing)
  • Storage Temperature-40~80 ℃
  • General
  • Gross Weight 115 Kg (253.53 lb)（8pcs /Case）
  • Package Dimension (W × H × D) 1100 mm x 740 mm x 760 mm(43.31" × 29.13" × 29.92")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P3.91
Pixel Pitch
3.91 mm
Modules Component
2 × 4
Dimensions (W × H × D)
500 mm × 1000 mm × 85.5 mm (19.69" × 39.4" × 3.37")
Resolution
128 × 256
Area
0.25 m²
Weight
13 Kg (28.66lb)
Pixel Density
65536 dots/m²
Lamp Board Housing
with housing
Cabinet Material
Die-cast aluminum
Maintenance Method
Front/Back Maintenance
Cabinet Flatness
0.2 mm
Protection Level
IP40(F)/IP40(R)
Display
White Balance Brightness
800 cd/m²
Color Temperature
3000 K to 10000 K adjustable
Viewing Angle
Horizontal 120°, vertical 120°
Contrast Ratio
≥ 6000:1
Color Uniformity
≤ ± 0.003Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Driving Method
Constant current driving
Frame Frequency
60 Hz
Refresh Rate
3840 Hz
Grey Level
14 bit
Display Color
4.39Trillion
Power
Power Supply
110~220 VAC ± 15%
Max. Consumption
≤ 500 W/m²
Average Consumption
≤ 170 W/m²
Working Environment
Working Temperature
-15-50 ℃
Working Humidity
10% to 90% RH (non-condensing)
Storage Humidity
10% to 90% RH (non-condensing)
Storage Temperature
-40~80 ℃
General
Gross Weight
115 Kg (253.53 lb)（8pcs /Case）
Package Dimension (W × H × D)
1100 mm x 740 mm x 760 mm(43.31" × 29.13" × 29.92")
Lifespan
Lamp 100,000 hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91 mm
  • Modules Component2 × 4
  • Dimensions (W × H × D)500 mm × 1000 mm × 85.5 mm (19.69" × 39.4" × 3.37")
  • Resolution128 × 256
  • Area0.25 m²
  • Weight 13 Kg (28.66lb)
  • Pixel Density65536 dots/m²
  • Lamp Board Housingwith housing
  • Cabinet MaterialDie-cast aluminum
  • Maintenance MethodFront/Back Maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP40(F)/IP40(R)
Display
  • White Balance Brightness800 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 120°, vertical 120°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate3840 Hz
  • Grey Level14 bit
  • Display Color4.39Trillion
Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 500 W/m²
  • Average Consumption≤ 170 W/m²
Working Environment
  • Working Temperature-15-50 ℃
  • Working Humidity10% to 90% RH (non-condensing)
  • Storage Humidity10% to 90% RH (non-condensing)
  • Storage Temperature-40~80 ℃
General
  • Gross Weight 115 Kg (253.53 lb)（8pcs /Case）
  • Package Dimension (W × H × D) 1100 mm x 740 mm x 760 mm(43.31" × 29.13" × 29.92")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
