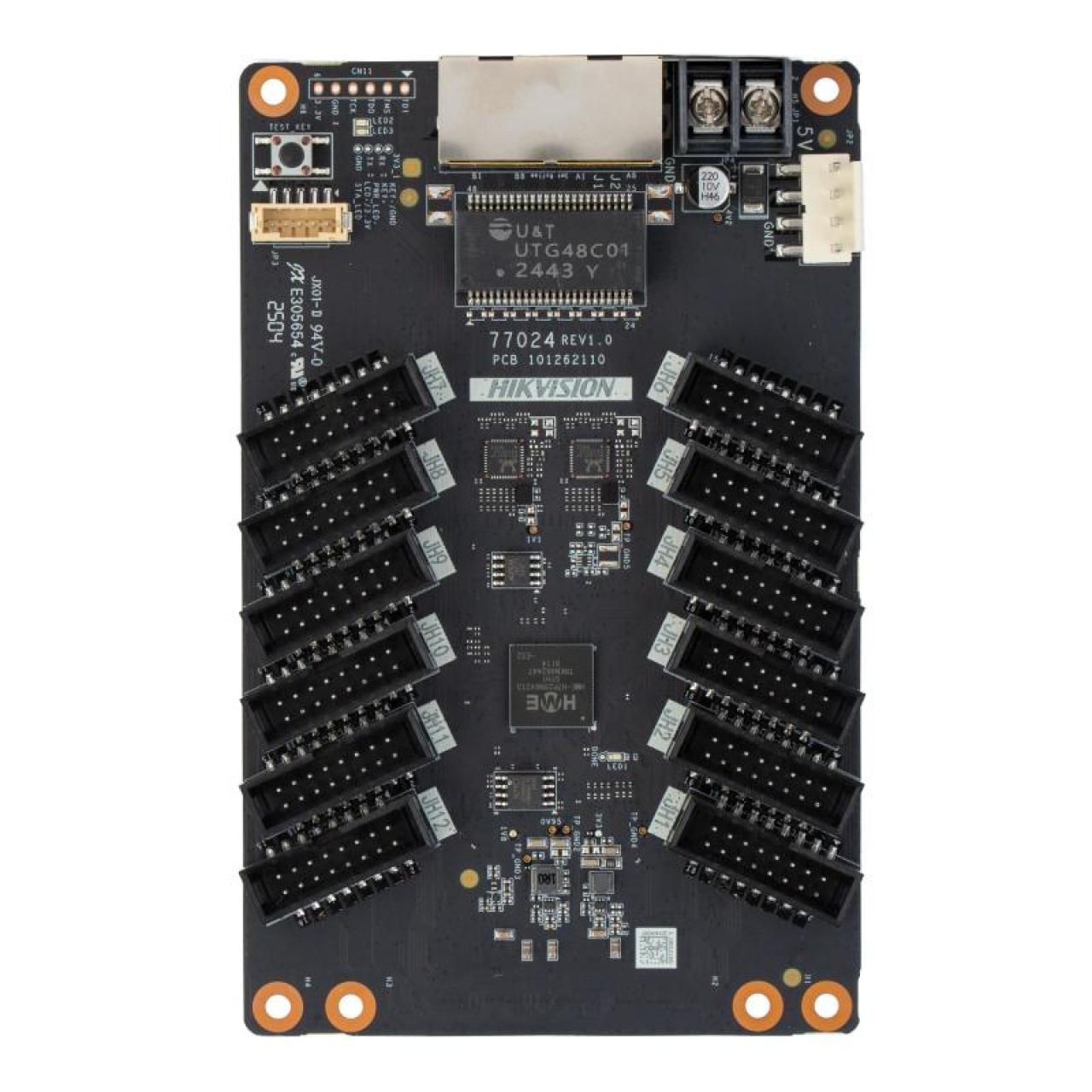

12 Ports HUB75E Receiving Card

  • Cooperate with HikLCT and CLB to correct the brightness and chromaticity of each light point, effectively eliminate chromatic aberration, make the brightness and chromaticity of the whole screen highly uniform, and improve the picture quality of the display screen.
  • Adjust the bright and dark lines caused by module splicing and cabinet splicing, and improve the visual abruptness caused by bright and dark lines. It takes effect immediately during the adjustment process, which is easy to use.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-DR32H-12，
DS-DR32H-12 NEW
Data Sheet

Specification

  • Interface
  • Interface TypeHUB75E
  • Interface Quantity12
  • Processing Performance
  • Max. Load Capacity512 × 512 pixels
  • Grey Level16 bit
  • Power
  • Max. Consumption2.5 W
  • Input VoltageDC 3.8 V to 5.5 V
  • Working Environment
  • Working Temperature-20°C to 60°C
  • Working Humidity10% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 70°C
  • Storage Humidity10% to 90% RH (non-condensing)
  • General
  • Product Dimension (W × H × D)91.5 (W) mm × 18.7 (H) mm × 144 (D) mm ( 3.6" × 0.74" × 5.67" )
  • Package Dimensions (W × H × D)641 (W) mm × 194 (H) mm × 496 (D) mm (6.46 '' × 5.26 '' × 6.2 '')
  • Net Weight95 g
  • Packing ListEach packing box contains 100 receiving cards.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Interface
Interface Type
HUB75E
Interface Quantity
12
Processing Performance
Max. Load Capacity
512 × 512 pixels
Grey Level
16 bit
Power
Max. Consumption
2.5 W
Input Voltage
DC 3.8 V to 5.5 V
Working Environment
Working Temperature
-20°C to 60°C
Working Humidity
10% to 90% RH (non-condensing)
Storage Temperature
-20°C to 70°C
Storage Humidity
10% to 90% RH (non-condensing)
General
Product Dimension (W × H × D)
91.5 (W) mm × 18.7 (H) mm × 144 (D) mm ( 3.6" × 0.74" × 5.67" )
Package Dimensions (W × H × D)
641 (W) mm × 194 (H) mm × 496 (D) mm (6.46 '' × 5.26 '' × 6.2 '')
Net Weight
95 g
Packing List
Each packing box contains 100 receiving cards.
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Interface
  • Interface TypeHUB75E
  • Interface Quantity12
Processing Performance
  • Max. Load Capacity512 × 512 pixels
  • Grey Level16 bit
Power
  • Max. Consumption2.5 W
  • Input VoltageDC 3.8 V to 5.5 V
Working Environment
  • Working Temperature-20°C to 60°C
  • Working Humidity10% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 70°C
  • Storage Humidity10% to 90% RH (non-condensing)
General
  • Product Dimension (W × H × D)91.5 (W) mm × 18.7 (H) mm × 144 (D) mm ( 3.6" × 0.74" × 5.67" )
  • Package Dimensions (W × H × D)641 (W) mm × 194 (H) mm × 496 (D) mm (6.46 '' × 5.26 '' × 6.2 '')
  • Net Weight95 g
  • Packing ListEach packing box contains 100 receiving cards.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
