*Images are for illustrative purposes. Actual product appearance and specifications may vary.
Discontinued
add compare icon

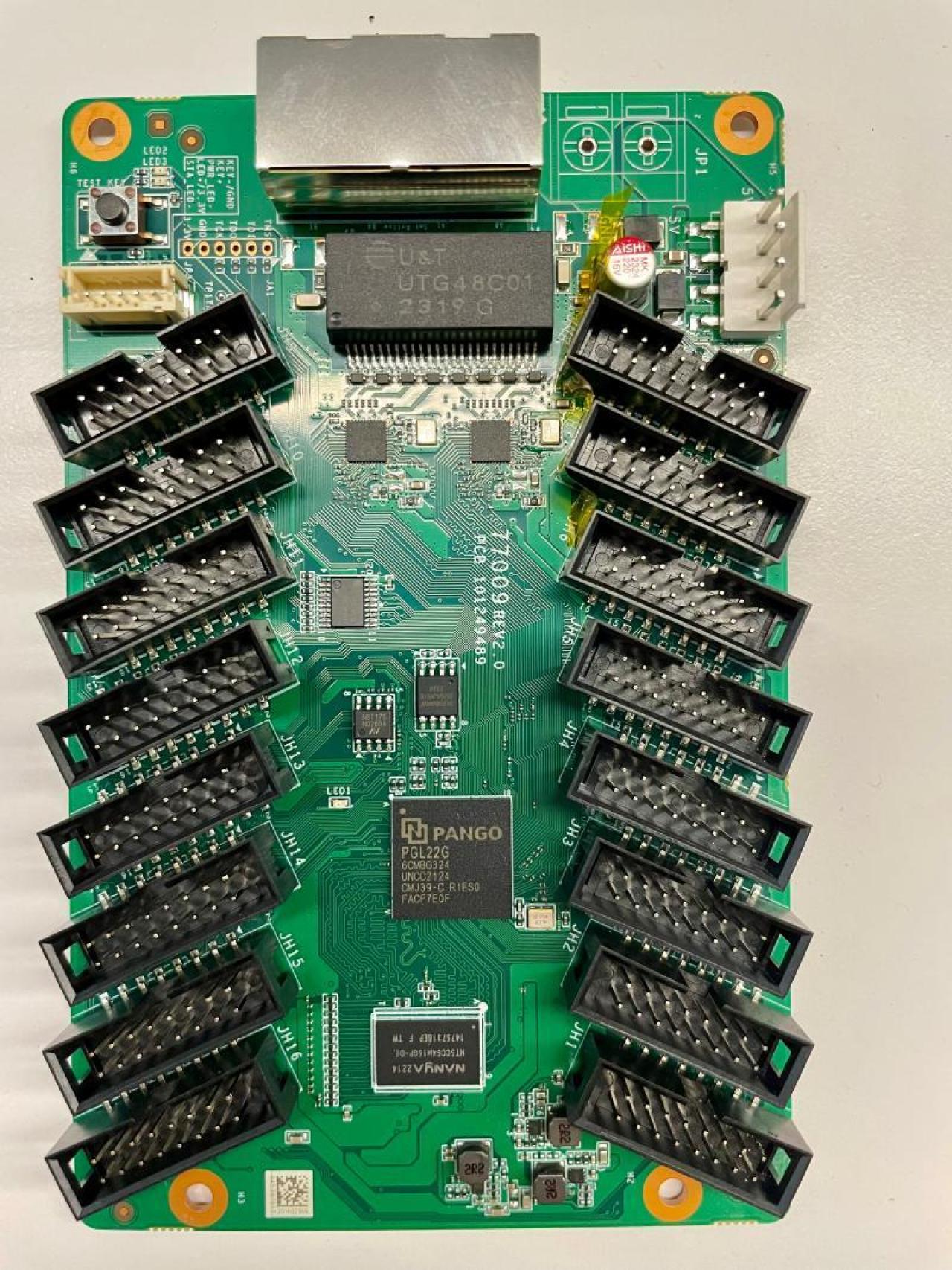

16 ports HUB75E receiving cards, 100/box

  • Cooperate with HikLCT and CLB to correct the brightness and chromaticity of each light point, effectively eliminate chromatic aberration, make the brightness and chromaticity of the whole screen highly uniform, and improve the picture quality of the display screen.
  • Adjust the bright and dark lines caused by module splicing and cabinet splicing, and improve the visual abruptness caused by bright and dark lines. It takes effect immediately during the adjustment process, which is easy to use.
View Less
View more
Sales Inquiry

Available models:

DS-DR31H-16，16*HUB75，100PCS/Box
View more View Less
DS-DR31H-16 Discontinued

Specification

  • Interface
  • Interface TypeHUB75E
  • Processing Performance
  • Max. Load Capacity512 × 512 pixels
  • Grey Level16 bit
  • Power
  • Max. Consumption2.5 W
  • Input VoltageDC 3.3 V to 5.5 V
  • Working Environment
  • Working Temperature-20°C to 60°C
  • Working Humidity10% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 70°C
  • Storage Humidity0% to 95% RH (non-condensing)
  • General
  • Product Dimensions (W × H × D)91.5mm × 18.7mm × 144 mm
  • Net Weight95 g
  • Packing ListEach packing box contains 100 receiving cards.
  • Quantity per Package100
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Interface
Interface Type
HUB75E
Processing Performance
Max. Load Capacity
512 × 512 pixels
Grey Level
16 bit
Power
Max. Consumption
2.5 W
Input Voltage
DC 3.3 V to 5.5 V
Working Environment
Working Temperature
-20°C to 60°C
Working Humidity
10% to 90% RH (non-condensing)
Storage Temperature
-20°C to 70°C
Storage Humidity
0% to 95% RH (non-condensing)
General
Product Dimensions (W × H × D)
91.5mm × 18.7mm × 144 mm
Net Weight
95 g
Packing List
Each packing box contains 100 receiving cards.
Quantity per Package
100
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Interface
  • Interface
Processing Performance
  • Processing Performance
  • Processing Performance
Power
  • Power
  • Power
Working Environment
  • Working Environment
  • Working Environment
  • Working Environment
  • Working Environment
General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
