*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

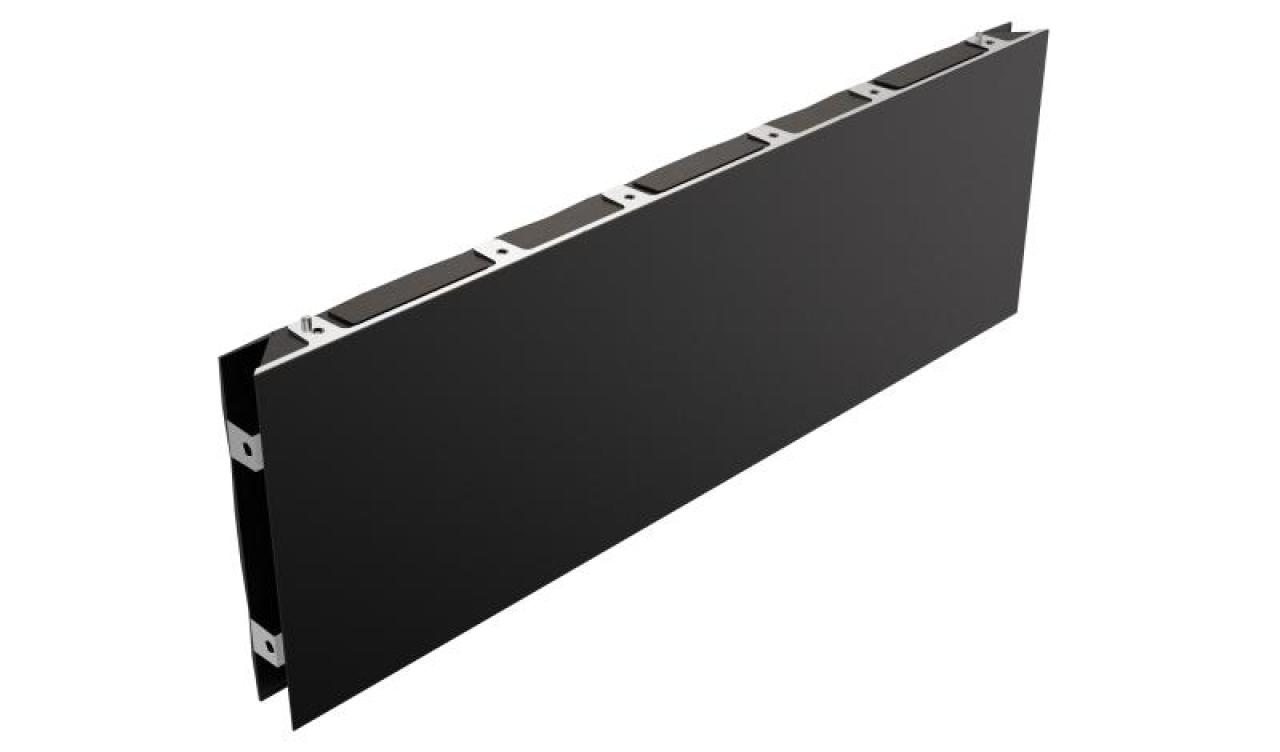

Flex II 250*750 Cabinet Structure

  • Multiple dimensions: Cabinets with various dimensions can be flexibly used to meet a variety of plane and three-dimensional stitching needs.
  • Light and ultra-thin cabinets: Ultra-thin and die casting aluminum cabinets are light and beautiful, which can help to deliver quickly.
  • Delicate frame: 45 degree frame structure with intensive design enhances the possibility of 90 degree right-angle of creative shapes installation. It can be used with more curved and creative stitching forms. There is no need to customize.
  • Magnetic module: Standard lamp boards with precise locating structure and strong magnetic adsorption without bottom shell can benefit efficient installation and convenient maintenance.
  • Rotate to install: Support cabinet and module 90 degree rotating installation and horizontal and vertical stitching of cabinets. No chromatic aberration in viewing angle.
  • Excellent display effect: Support high definition display and color reproduction, high contrast ratio and high refresh rate. Adopt Hikvision’s dynamic engine algorithm for automatic screen control. The image is soft and comfortable to view.
  • Intelligent control system: More intelligent with Hikvision’s control system. Signal backup, intelligent operation and maintenance facilitate convenient operation and control. Support cloud management and maintenance.
  • High quality: Obtained TUV-CE/ROHS/CB compliance certification. The cabinet is safe, reliable, energy-saving and environmentally friendly.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D40CE13-2F 250*750 Cabinet Structure
View more View Less
DS-D40CE13-2F
Data Sheet

Specification

  • Product Type
  • Product TypeLED Display Structure
  • Cabinet
  • Modules Component1 × 3
  • Dimensions (W × H × D)750 mm × 250 mm × 50 mm (29.528" × 9.843" × 1.969")
  • Area0.1875 m²
  • Cabinet MaterialAluminium die casting
  • Maintenance MethodFront maintenance for all components
  • Power
  • Input Voltage110~220 VAC ± 15%
  • Working Environment
  • Working Temperature-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)
  • Working Humidity10%~90%RH
  • Storage Humidity10%~90%RH
  • Storage Temperature-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
  • General
  • Package Dimension (W × H × D)844 mm × 324 mm × 95 mm (33.23" × 12.76" × 3.74") (Carton，1 cabinet in 1 box) 860 mm × 505 mm × 350 mm (33.86" × 19.88" × 13.78") (Carton，5 cabinets in 1 box)
  • Packing ListRegulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets
  • Net Weight2.635 kg (5.81 lb)
  • Gross Weight4.89KG
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Type
Product Type
LED Display Structure
Cabinet
Modules Component
1 × 3
Dimensions (W × H × D)
750 mm × 250 mm × 50 mm (29.528" × 9.843" × 1.969")
Area
0.1875 m²
Cabinet Material
Aluminium die casting
Maintenance Method
Front maintenance for all components
Power
Input Voltage
110~220 VAC ± 15%
Working Environment
Working Temperature
-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)
Working Humidity
10%~90%RH
Storage Humidity
10%~90%RH
Storage Temperature
-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
General
Package Dimension (W × H × D)
844 mm × 324 mm × 95 mm (33.23" × 12.76" × 3.74") (Carton，1 cabinet in 1 box) 860 mm × 505 mm × 350 mm (33.86" × 19.88" × 13.78") (Carton，5 cabinets in 1 box)
Packing List
Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets
Net Weight
2.635 kg (5.81 lb)
Gross Weight
4.89KG
