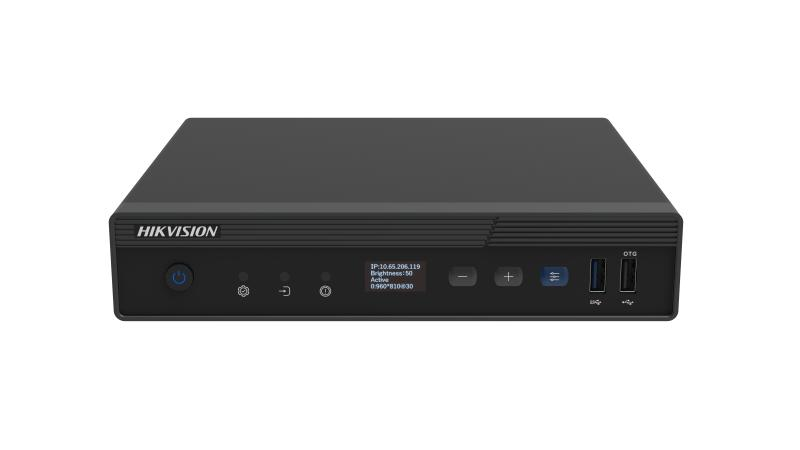

6 Ports 3-in-1 LED Controller

  • Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
  • Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.
  • Provides buttons on the front panel to change brightness and other parameters.
  • Provides indicators on the front panel to indicate the power status, signal access status, and running status.
  • Supports 2 channels of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
  • Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
  • Supports 6 channels of loading output with the maximum loading capacity of 3.9 MP. The maximum width is 32760 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
  • Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
  • Supports the RGB and YUV 444 image loading output without image quality loss.
  • Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
  • Supports opening the signal source windows on the display and roaming window.
  • Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
  • Supports the video wall configuration and window visualization.
  • Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
  • Supports cascading management and unified control of multiple LED controllers through the network.
  • Supports custom EDID settings.
  • Supports dual backup of the power supplies, dual backup of LED controller network ports, dual backup of LED controllers, and dual backup of receiving cards.
  • Supports custom cable alignment without rectangular frame limit.
  • Supports the operation through the client or the LED controller web page.
  • Supports configuring the background.
  • Supports configuring the startup logo.
  • Supports configuring the screen dehumidification.
  • Supports using the remote control to control the screen to display the remote UI menu.
  • Supporting adjusting the brightness, contrast, hue, and other parameters of the output image.
  • Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
  • Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
  • Supports eye protection mode to protect the vision of the viewer.
  • Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
  • Supports viewing the loading relationship between the device and LED screen.
  • Supports viewing abnormal screen positioning during running.
  • Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
  • Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
  • Supports connecting to the central control device and IoT device through RS-485 port.
  • Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
  • Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
  • Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
  • Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-DT60P-02HI06NO
DS-DT60P-02HI06NO
Data Sheet

Specification

  • Processing Performance
  • Brightness Control1 to 100 tunable (level-by-level white balance)
  • Frame Frequency25 Hz to 60 Hz
  • Grey Level256
  • Display Color16 MP
  • Processing Depth8 bit
  • Image ScalingSupported
  • Product Model
  • Product ModelDS-DT60P-02HI06NO
  • Chassis
  • Chassis Height1 U
  • Chassis WidthHalf-width
  • Product Type
  • Product TypeLED controller
  • LED Controller Power
  • Average Consumption≤16.5 W
  • Power Interface Quantity1
  • Power Interface100 to 240 VAC, 50/60 Hz
  • Video Wall
  • Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
  • Layers per Device7
  • Scenes10
  • Background Images1
  • Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
  • Background FormatJPG/JPEG
  • Subtitles1
  • Subtitle Width32760
  • Subtitle FontSupports Xiaomi font and custom font
  • General
  • Working Temperature-10°C to 50°C
  • Storage Humidity10% to 90%
  • Working Humidity10% to 90%
  • Storage Temperature-10°C to 50°C
  • Packaging Size (W × H × D)353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
  • Net Weight1.08 kg (2.38 lb.)
  • Gross Weight1.67 kg (3.68 lb.)
  • Dimensions (W × H × D)210 mm × 42 mm × 180 mm (8.26 inch × 1.65 inch × 7.08 inch)
  • Packing List1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × bar antenna, 1× RF remote control
  • Audio Input
  • Audio Input Interfaces3
  • Audio Input Interface Type2 HDMI 1.4 + 1 embedded Android
  • Video Input
  • Video Input Interfaces3
  • Video Input Interface Type2 HDMI1.4 + 1 channel of embedded Android
  • Max. Video Input ResolutionHDMI1.4: 1080p
  • Video Input ResolutionHDMI 1.4 port Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 320 to 3840, alignment: 2 alignment Max. height: 180 to 3840, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.
  • Video Input Processing FeatureProcessing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422
  • Video Output
  • Max. Video Output Resolution3.9 Million
  • Video Output ResolutionRJ-45
  • Loading Capacity for Video Output to LEDSingle port loading: 650000 Width 320-32760; alignment: 2 alignment Height 64-5120; alignment: 1 alignment
  • LED Loading Interfaces6
  • Video Live View Output Interfaces1
  • Type of Video Live View Output InterfaceHDMI 1.4
  • Video Live View Output Resolution720p@60 Hz
  • Audio Output
  • Audio Output Interfaces1
  • Audio Output Interface Type3.5 mm audio output
  • System
  • SystemAndroid 12
  • Memory Capacity4 GB
  • Storage Capacity32 GB
  • CPU4-core 64-bit ARM cortex-A55 2.0 GHz
  • Wireless
  • WIFI2.4 GHz
  • BluetoothBluetooth 4.0
  • Antenna1 × bar antenna
  • Remote ControlSupports IR remote control
  • Front Panel
  • Screen128 × 64, OLED screen
  • USB Port1 channel of USB 2.0 + 1 channel of USB 3.0
  • Button+: increase brightness -: decrease brightness Source: change signal source
  • IndicatorActive: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
  • Power SwitchOn: The device is started and running. Off: The device is not powered on or is not started.
  • Control Interface
  • Control Network Port2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.
  • IR Input1 × 3.5 mm connector Supports the access of IR remote control.
  • Serial Interface1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) Baud rate: 115200, data bit: 8
  • Power SwitchButton switch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Processing Performance
Brightness Control
1 to 100 tunable (level-by-level white balance)
Frame Frequency
25 Hz to 60 Hz
Grey Level
256
Display Color
16 MP
Processing Depth
8 bit
Image Scaling
Supported
Product Model
Product Model
DS-DT60P-02HI06NO
Chassis
Chassis Height
1 U
Chassis Width
Half-width
Product Type
Product Type
LED controller
LED Controller Power
Average Consumption
≤16.5 W
Power Interface Quantity
1
Power Interface
100 to 240 VAC, 50/60 Hz
Video Wall
Open Windows
3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
Layers per Device
7
Scenes
10
Background Images
1
Background Resolution
Min.: 640 × 480, Max.: 1920 × 1200
Background Format
JPG/JPEG
Subtitles
1
Subtitle Width
32760
Subtitle Font
Supports Xiaomi font and custom font
General
Working Temperature
-10°C to 50°C
Storage Humidity
10% to 90%
Working Humidity
10% to 90%
Storage Temperature
-10°C to 50°C
Packaging Size (W × H × D)
353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
Net Weight
1.08 kg (2.38 lb.)
Gross Weight
1.67 kg (3.68 lb.)
Dimensions (W × H × D)
210 mm × 42 mm × 180 mm (8.26 inch × 1.65 inch × 7.08 inch)
Packing List
1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × bar antenna, 1× RF remote control
Audio Input
Audio Input Interfaces
3
Audio Input Interface Type
2 HDMI 1.4 + 1 embedded Android
Video Input
Video Input Interfaces
3
Video Input Interface Type
2 HDMI1.4 + 1 channel of embedded Android
Max. Video Input Resolution
HDMI1.4: 1080p
Video Input Resolution
HDMI 1.4 port Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 320 to 3840, alignment: 2 alignment Max. height: 180 to 3840, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.
Video Input Processing Feature
Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422
Video Output
Max. Video Output Resolution
3.9 Million
Video Output Resolution
RJ-45
Loading Capacity for Video Output to LED
Single port loading: 650000 Width 320-32760; alignment: 2 alignment Height 64-5120; alignment: 1 alignment
LED Loading Interfaces
6
Video Live View Output Interfaces
1
Type of Video Live View Output Interface
HDMI 1.4
Video Live View Output Resolution
720p@60 Hz
Audio Output
Audio Output Interfaces
1
Audio Output Interface Type
3.5 mm audio output
System
System
Android 12
Memory Capacity
4 GB
Storage Capacity
32 GB
CPU
4-core 64-bit ARM cortex-A55 2.0 GHz
Wireless
WIFI
2.4 GHz
Bluetooth
Bluetooth 4.0
Antenna
1 × bar antenna
Remote Control
Supports IR remote control
Front Panel
Screen
128 × 64, OLED screen
USB Port
1 channel of USB 2.0 + 1 channel of USB 3.0
Button
+: increase brightness -: decrease brightness Source: change signal source
Indicator
Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
Power Switch
On: The device is started and running. Off: The device is not powered on or is not started.
Control Interface
Control Network Port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.
IR Input
1 × 3.5 mm connector Supports the access of IR remote control.
Serial Interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) Baud rate: 115200, data bit: 8
Power Switch
Button switch
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Processing Performance
  • Brightness Control1 to 100 tunable (level-by-level white balance)
  • Frame Frequency25 Hz to 60 Hz
  • Grey Level256
  • Display Color16 MP
  • Processing Depth8 bit
  • Image ScalingSupported
Product Model
  • Product ModelDS-DT60P-02HI06NO
Chassis
  • Chassis Height1 U
  • Chassis WidthHalf-width
Product Type
  • Product TypeLED controller
LED Controller Power
  • Average Consumption≤16.5 W
  • Power Interface Quantity1
  • Power Interface100 to 240 VAC, 50/60 Hz
Video Wall
  • Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
  • Layers per Device7
  • Scenes10
  • Background Images1
  • Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
  • Background FormatJPG/JPEG
  • Subtitles1
  • Subtitle Width32760
  • Subtitle FontSupports Xiaomi font and custom font
General
  • Working Temperature-10°C to 50°C
  • Storage Humidity10% to 90%
  • Working Humidity10% to 90%
  • Storage Temperature-10°C to 50°C
  • Packaging Size (W × H × D)353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
  • Net Weight1.08 kg (2.38 lb.)
  • Gross Weight1.67 kg (3.68 lb.)
  • Dimensions (W × H × D)210 mm × 42 mm × 180 mm (8.26 inch × 1.65 inch × 7.08 inch)
  • Packing List1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × bar antenna, 1× RF remote control
Audio Input
  • Audio Input Interfaces3
  • Audio Input Interface Type2 HDMI 1.4 + 1 embedded Android
Video Input
  • Video Input Interfaces3
  • Video Input Interface Type2 HDMI1.4 + 1 channel of embedded Android
  • Max. Video Input ResolutionHDMI1.4: 1080p
  • Video Input ResolutionHDMI 1.4 port Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 320 to 3840, alignment: 2 alignment Max. height: 180 to 3840, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.
  • Video Input Processing FeatureProcessing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422
Video Output
  • Max. Video Output Resolution3.9 Million
  • Video Output ResolutionRJ-45
  • Loading Capacity for Video Output to LEDSingle port loading: 650000 Width 320-32760; alignment: 2 alignment Height 64-5120; alignment: 1 alignment
  • LED Loading Interfaces6
  • Video Live View Output Interfaces1
  • Type of Video Live View Output InterfaceHDMI 1.4
  • Video Live View Output Resolution720p@60 Hz
Audio Output
  • Audio Output Interfaces1
  • Audio Output Interface Type3.5 mm audio output
System
  • SystemAndroid 12
  • Memory Capacity4 GB
  • Storage Capacity32 GB
  • CPU4-core 64-bit ARM cortex-A55 2.0 GHz
Wireless
  • WIFI2.4 GHz
  • BluetoothBluetooth 4.0
  • Antenna1 × bar antenna
  • Remote ControlSupports IR remote control
Front Panel
  • Screen128 × 64, OLED screen
  • USB Port1 channel of USB 2.0 + 1 channel of USB 3.0
  • Button+: increase brightness -: decrease brightness Source: change signal source
  • IndicatorActive: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
  • Power SwitchOn: The device is started and running. Off: The device is not powered on or is not started.
Control Interface
  • Control Network Port2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.
  • IR Input1 × 3.5 mm connector Supports the access of IR remote control.
  • Serial Interface1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) Baud rate: 115200, data bit: 8
  • Power SwitchButton switch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.

Manage cookies Accept All
Accept All Manage cookies
Contact Sales
Technical Support
Online Service
Subscribe Newsletter
Contact Us

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
