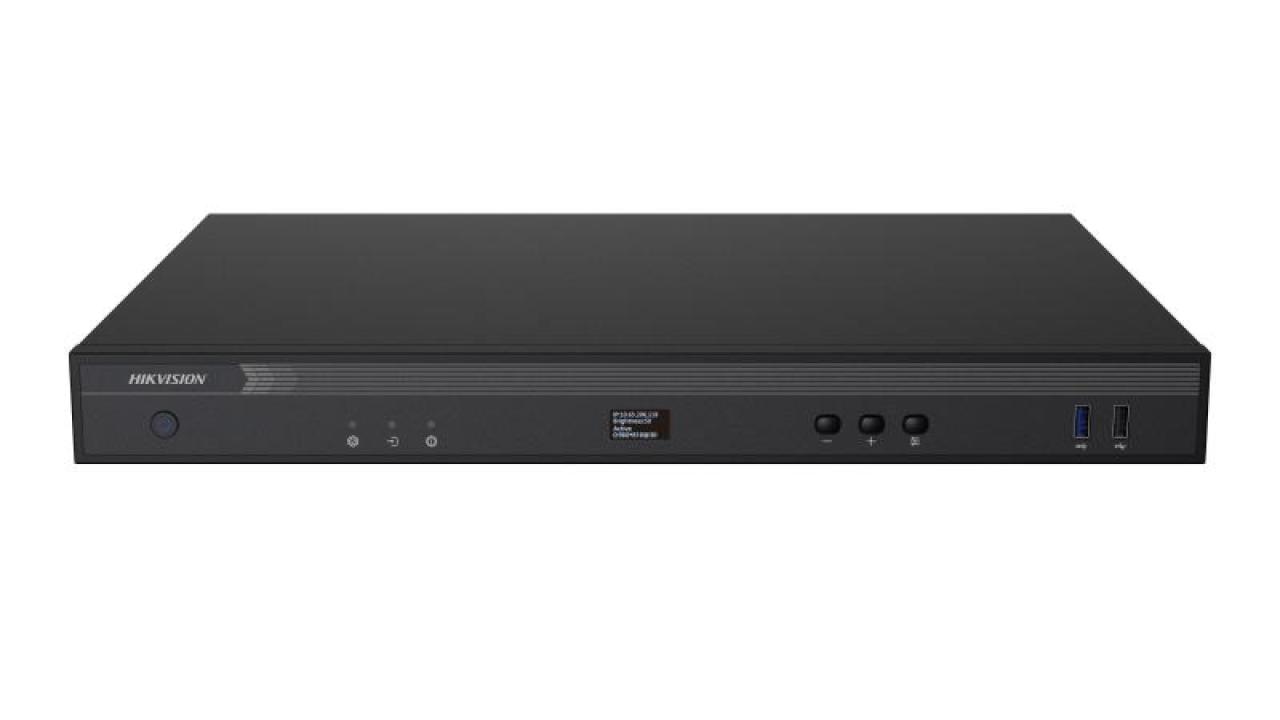

12 Ports Asynchronous LED Controller

  • Provide a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
  • Adopt the 1 U rackmount chassis and industrial grade chassis system.
  • Provide buttons on the front panel to adjust the brightness and switch the signal source.
  • Provide indicators on the front panel to indicate the power status, signal access status, and running status.
  • Support one HDMI 2.0 input channel at 4096 × 2160@60 Hz resolution.
  • Support the RGB and YUV 444 image loading output without image quality loss.
  • Support 12 channels of loading output with the maximum loading capacity of 7.8 MP. The maximum width is 8192 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
  • Support input of mixed HDMI audio and video stream, and 3.5 mm audio output.
  • Support full-screen zoom and custom zoom for video signal input, and signal source switching.
  • Support up to 10 scenes. Thus, the saved scene can be used directly in the future.
  • Support high-bandwidth digital content protection technology of HDCP 2.2 protocol.
  • Support custom EDID settings.
  • Support redundant backup for power supplies, LED controller network ports, and LED controller/receiving card combinations.
  • Support custom cable alignment without rectangular frame limit.
  • Support the operation through the client or the LED controller web page.
  • Support configuring the background.
  • Support configuring the startup logo.
  • Support configuring the screen dehumidification.
  • Support using the remote control to control the screen to display the remote UI menu.
  • Support adjustment of output image parameters including brightness, contrast, and color temperature.
  • Support pixel-level screen correction to effectively eliminate color difference and improve the quality of the display.
  • Support changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Support selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
  • Support eye protection mode to protect the vision of the viewer.
  • Support high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
  • Support monitoring load relationships between the device and LED display.
  • Support locating display abnormalities during operation.
  • Support checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
  • Support abnormal cabinet voltage detection, cabinet temperature detection, and device temperature detection.
  • Support connecting to the central control device and IoT device through RS-485 port.
  • Support docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Support using the control network port to connect to the multi-function card to realize environment temperature detection, environment humidity detection, and the cooperation between the human presence sensor and display control.
  • Integrate Android 12 OS with 4GB RAM and 64GB storage to support multimedia playback.
  • Support HDMI 2.0 loop-through output, with a maximum resolution of 4096 × 2160@60 Hz.
  • Adapt to frame rates from 25Hz to 120Hz for image capture.
  • Support decoding of either 1 channel of 4K video or 6 channels of 1080p@30 Hz video.
  • Support program playback via USB flash drive.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-DT60B-01HI12NO/U
View more View Less
DS-DT60B-01HI12NO/U
Data Sheet

Specification

  • Processing Performance
  • Brightness Control1 to 100 tunable (level-by-level white balance)
  • Input Frame Rate25 Hz to 120 Hz
  • Grey Level1024
  • Display Color1 Gigapixel
  • Processing Depth10 bit
  • Image ScalingSupported
  • Product Model
  • Product ModelDS-DT60B-01HI12NO/U
  • Chassis
  • Chassis Height1 U
  • Chassis Width440 mm(17.32 inch)
  • LED Controller Interface
  • Light Sensor PortSupported
  • LED Controller Power
  • Average Consumption≤29 W
  • Interface
  • USB Interface1 × USB 2.0 + 1 × USB 3.0
  • Serial Interface1 × debugging port (4-pin connector)+ 1× RS-485 central control port (green Phoenix contact) + 1 × RS-485 light sensor port (green Phoenix contact) Baud rate: 115200, data bit: 8
  • Power
  • Power Interface1, 100 VAC to 240 VAC, 50/60 Hz
  • Network
  • Control Network Port2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network and supports multi-device network cascade management.
  • Video Wall
  • Scenes10
  • Background ImageSupported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)
  • General
  • ScreenScreen type: OLED, resolution: 128 × 64
  • Working Temperature-10℃ to 50℃(14℉ to 122℉)
  • Storage Humidity10% RH to 90% RH, no condensation
  • Working Humidity10% RH to 90% RH, no condensation
  • Storage Temperature-10℃ to 50℃(14℉ to 122℉)
  • Packaging Size (W × H × D)589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14inch)
  • Net Weight3.322 kg (7.32 lb)
  • Gross Weight4.488 kg (9.89 lb)
  • Dimensions (W × H × D)440 mm × 44.5 mm × 320.8 mm (17.32 inch × 17.5 inch × 12.63 inch)
  • Packing List1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control
  • Product Type
  • Product TypeLED controller
  • Audio Input
  • Audio Input Interface1-channel HDMI 2.0 + 1-channel embedded Android
  • Video Input
  • Video Input Interface Type1-channel HDMI 2.0 or 1-channel embedded Android
  • Video Input Interfaces2
  • Max. Video Input ResolutionHDMI2.0: 4K
  • Video Input ResolutionHDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.
  • Video Input Processing FeatureProcessing depth: 10 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420
  • Video Input PreviewSupported
  • Built-in Android Resolution4K
  • Video Output
  • Max. Video Output Resolution7800000
  • Loading Capacity for Video Output to LEDSingle port load 650000, Width 144 - 8192, Height 64 - 8192, Width must be a multiple of 2 and height must be a multiple of 1
  • LED Loading Interfaces12
  • LED Loading Interface TypeRJ-45
  • Video Loop Output Interface1-channel HDMI2.0
  • Video Loop Output ResolutionHDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution matches the video input resolution. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2
  • Loading ModeSingle port load 0.65 MP
  • Audio Output
  • Audio Output Interface1 × 3.5 mm audio
  • System
  • SystemAndroid 12
  • Memory Capacity4 GB
  • Storage Capacity64 GB
  • CPU4-core 64-bit ARM cortex-A55 2.0 GHz
  • Wireless
  • Wi-FiSTA 2.4 GHz, AP 2.4&5 GHz
  • BluetoothBluetooth 4.0
  • Antenna3 × bar antenna
  • Remote ControlSupports IR remote control and RF remote control
  • Device Parameters
  • Button+: increase brightness -: decrease brightness Source: change signal source
  • Power SwitchButton switch
  • Broadcast Control Feature
  • Program Material TypeVideo, image, audio, document, text, stream media, clock
  • Program PlaybackSupports play, stop, fast forward, and rewind in the material window. Supports play and stop in program playback.
  • Playback AttributeSupports configuration of window size, position, and playback time. Supports configuration of programs and schedule. Supports real-time playback control and asynchronous signal transmission configuration.
  • Video Playback PerformanceSupports 1 channel of 4K@60 Hz, 4 channels of 1080p@60 Hz, or 6 channels of 720p@60 Hz multimedia video playback.
  • Front Panel
  • IndicatorActive: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
  • Power SwitchOn: The device is started and running. Off: The device is not powered on or is not started.
  • Control Interface
  • IR Input1 × 3.5 mm connector Supports the access of IR remote control.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Processing Performance
Brightness Control
1 to 100 tunable (level-by-level white balance)
Input Frame Rate
25 Hz to 120 Hz
Grey Level
1024
Display Color
1 Gigapixel
Processing Depth
10 bit
Image Scaling
Supported
Product Model
Product Model
DS-DT60B-01HI12NO/U
Chassis
Chassis Height
1 U
Chassis Width
440 mm(17.32 inch)
LED Controller Interface
Light Sensor Port
Supported
LED Controller Power
Average Consumption
≤29 W
Interface
USB Interface
1 × USB 2.0 + 1 × USB 3.0
Serial Interface
1 × debugging port (4-pin connector)+ 1× RS-485 central control port (green Phoenix contact) + 1 × RS-485 light sensor port (green Phoenix contact) Baud rate: 115200, data bit: 8
Power
Power Interface
1, 100 VAC to 240 VAC, 50/60 Hz
Network
Control Network Port
2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network and supports multi-device network cascade management.
Video Wall
Scenes
10
Background Image
Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)
General
Screen
Screen type: OLED, resolution: 128 × 64
Working Temperature
-10℃ to 50℃(14℉ to 122℉)
Storage Humidity
10% RH to 90% RH, no condensation
Working Humidity
10% RH to 90% RH, no condensation
Storage Temperature
-10℃ to 50℃(14℉ to 122℉)
Packaging Size (W × H × D)
589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14inch)
Net Weight
3.322 kg (7.32 lb)
Gross Weight
4.488 kg (9.89 lb)
Dimensions (W × H × D)
440 mm × 44.5 mm × 320.8 mm (17.32 inch × 17.5 inch × 12.63 inch)
Packing List
1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control
Product Type
Product Type
LED controller
Audio Input
Audio Input Interface
1-channel HDMI 2.0 + 1-channel embedded Android
Video Input
Video Input Interface Type
1-channel HDMI 2.0 or 1-channel embedded Android
Video Input Interfaces
2
Max. Video Input Resolution
HDMI2.0: 4K
Video Input Resolution
HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.
Video Input Processing Feature
Processing depth: 10 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420
Video Input Preview
Supported
Built-in Android Resolution
4K
Video Output
Max. Video Output Resolution
7800000
Loading Capacity for Video Output to LED
Single port load 650000, Width 144 - 8192, Height 64 - 8192, Width must be a multiple of 2 and height must be a multiple of 1
LED Loading Interfaces
12
LED Loading Interface Type
RJ-45
Video Loop Output Interface
1-channel HDMI2.0
Video Loop Output Resolution
HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution matches the video input resolution. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2
Loading Mode
Single port load 0.65 MP
Audio Output
Audio Output Interface
1 × 3.5 mm audio
System
System
Android 12
Memory Capacity
4 GB
Storage Capacity
64 GB
CPU
4-core 64-bit ARM cortex-A55 2.0 GHz
Wireless
Wi-Fi
STA 2.4 GHz, AP 2.4&5 GHz
Bluetooth
Bluetooth 4.0
Antenna
3 × bar antenna
Remote Control
Supports IR remote control and RF remote control
Device Parameters
Button
+: increase brightness -: decrease brightness Source: change signal source
Power Switch
Button switch
Broadcast Control Feature
Program Material Type
Video, image, audio, document, text, stream media, clock
Program Playback
Supports play, stop, fast forward, and rewind in the material window. Supports play and stop in program playback.
Playback Attribute
Supports configuration of window size, position, and playback time. Supports configuration of programs and schedule. Supports real-time playback control and asynchronous signal transmission configuration.
Video Playback Performance
Supports 1 channel of 4K@60 Hz, 4 channels of 1080p@60 Hz, or 6 channels of 720p@60 Hz multimedia video playback.
Front Panel
Indicator
Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
Power Switch
On: The device is started and running. Off: The device is not powered on or is not started.
Control Interface
IR Input
1 × 3.5 mm connector Supports the access of IR remote control.
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Processing Performance
  • Processing Performance
  • Processing Performance
  • Processing Performance
  • Processing Performance
  • Processing Performance
  • Processing Performance
Product Model
  • Product Model
Chassis
  • Chassis
  • Chassis
LED Controller Interface
  • LED Controller Interface
LED Controller Power
  • LED Controller Power
Interface
  • Interface
  • Interface
Power
  • Power
Network
  • Network
Video Wall
  • Video Wall
  • Video Wall
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
Product Type
  • Product Type
Audio Input
  • Audio Input
Video Input
  • Video Input
  • Video Input
  • Video Input
  • Video Input
  • Video Input
  • Video Input
  • Video Input
Video Output
  • Video Output
  • Video Output
  • Video Output
  • Video Output
  • Video Output
  • Video Output
  • Video Output
Audio Output
  • Audio Output
System
  • System
  • System
  • System
  • System
Wireless
  • Wireless
  • Wireless
  • Wireless
  • Wireless
Device Parameters
  • Device Parameters
  • Device Parameters
Broadcast Control Feature
  • Broadcast Control Feature
  • Broadcast Control Feature
  • Broadcast Control Feature
  • Broadcast Control Feature
Front Panel
  • Front Panel
  • Front Panel
Control Interface
  • Control Interface
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.

Manage cookies Accept All
Accept All Manage cookies
Contact Sales
Technical Support
Online Service
Subscribe Newsletter
Contact Us

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
