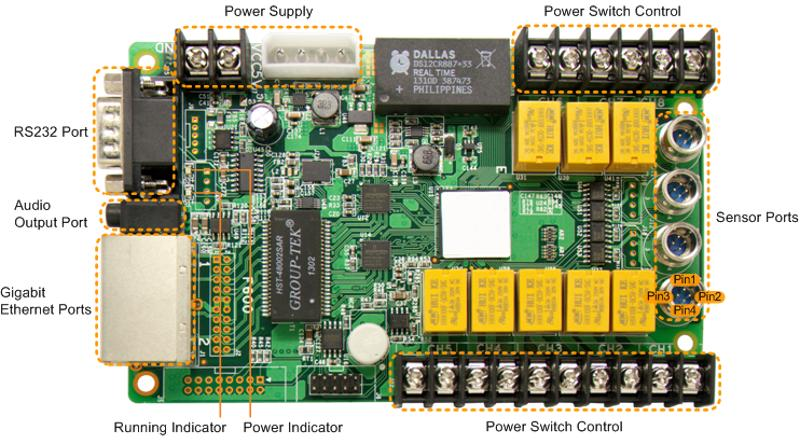

LED Multi-function Card

  • RS232 serial port or Gigabit Ethernet port communication
  • Connected via Ethernet port before the first receiving card, between any two receiving cards, or after the last receiving card
  • Timer function, able to replace a timer and delayer
  • Temperature detection of the power distribution box
  • 8x Channels of power switch control
  • 4x Sensor ports to connect light sensors for automatic brightness adjustment, or connect other peripherals, such as temperature sensors
  • 1x Audio output port
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D42AM2-N
DS-D42AM2-N
Data Sheet

Specification

  • Power
  • Input VoltageDC 3.3 V to 5.5 V
  • Rated Current0.38 A
  • Max. Consumption2.5 W
  • Working Environment
  • Working Temperature-20 ℃ to +75 ℃ (-4 ℉ to 167 ℉)
  • Working Humidity0% to 90% RH (without condensation)
  • General
  • Dimensions (W × H × D) 144.0 mm × 94.8 mm × 20.0 mm
  • Net Weight164.4 g
  • Power Switch Control
  • Rated voltage (Switch)AC 250 V / DC 30 V
  • Rated current (Switch)3 A
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Power
Input Voltage
DC 3.3 V to 5.5 V
Rated Current
0.38 A
Max. Consumption
2.5 W
Working Environment
Working Temperature
-20 ℃ to +75 ℃ (-4 ℉ to 167 ℉)
Working Humidity
0% to 90% RH (without condensation)
General
Dimensions (W × H × D)
144.0 mm × 94.8 mm × 20.0 mm
Net Weight
164.4 g
Power Switch Control
Rated voltage (Switch)
AC 250 V / DC 30 V
Rated current (Switch)
3 A
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Power
  • Power
  • Power
  • Power
Working Environment
  • Working Environment
  • Working Environment
General
  • General
  • General
Power Switch Control
  • Power Switch Control
  • Power Switch Control
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
