*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

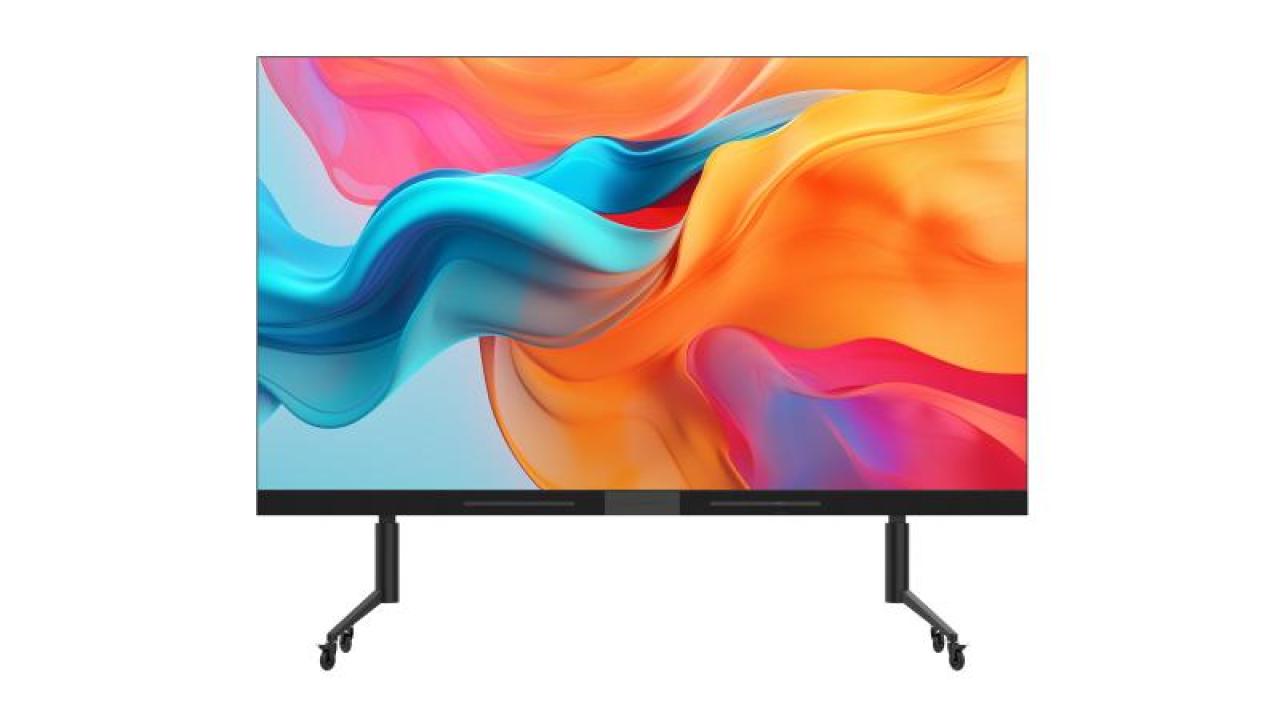

DS-D4518CB162-2FQ 162'' LED AIO（Non-Touch）

  • High Integration Design: The mainboard integrates the control system, Android, network processing, and video interface modules into a single unit, significantly boosting system reliability. It allows flexible plug-and-play module installation for easy setup and maintenance.
  • Lightweight Solution: Leveraging high-load signal processing technology, the design enables full-screen data transmission using just one internal signal cable.
  • Innovative Structural Design: Featuring carefully selected Scandinavian-inspired fabric and an ultra-narrow bezel, the product delivers a refined aesthetic. The innovative quick-lock mechanism ensures secure connections with a simple twist, enhancing alignment precision.
  • Easy and Quick Installation: The cabinet employs a segmented pre-assembly design, facilitating modular column-based installation for quick and efficient setup.
  • Enhanced Performance: Seamless switching between Android and Windows systems improves adaptability across various scenarios. The WonderOS 3.0 system is optimized for large-screen UI interactions, providing an intuitive user experience.
  • Versatile Functionality: Supports multi-device wireless screen sharing, whiteboard capabilities, conference recording, welcome message display, and other practical features for diverse applications.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D4518CB162-2FQ(All-in-one)
View more View Less
DS-D4518CB162-2FQ NEW
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D4518CB162-2FQ
  • Cabinet
  • Pixel ConfigurationSMD Triad LED (with glue)
  • Pixel Pitch1.875 mm
  • Pixel Density284444 dots/㎡
  • Cabinet MaterialAluminum alloy
  • Maintenance MethodFront maintenance
  • Display
  • White Balance Brightness600 cd/m²
  • Color Temperature3000-10000K adjustable
  • Viewing Angle160° (H)/160° (V)
  • Brightness Uniformity± 0.003Cx，Cy
  • Color Uniformity≥ 97％
  • Screen Size162inch（413.0cm)
  • Display Resolution1920 × 1080
  • Contrast Ratio3000:1
  • Active Screen Area7.3 ㎡
  • Display Ratio16:9
  • Optimal View Distance3 m
  • Built-in System
  • Operation SystemAndroid 12, windows 10 (optional with OPS accessories)
  • CPUAndroid: Max. 1.5 GHz, A76 × 4 + A55 × 4 Windows: i5-11390H
  • MemoryAndroid: 16GB Windows: 16GB
  • Built-in StorageAndroid: 256 GB Windows: 256 GB
  • NICIntegrated gigabit LAN with router mode enabled
  • CPU Clock Speed2.4 GHz
  • WirelessSupports concurrent operation in station and access point (AP) mode, enabling Wi-Fi hotspot functionality.
  • BluetoothIntegrated BLE module compliant with Bluetooth 5.1 and backward-compatible versions.
  • Interface
  • Video & Audio InputLINE IN × 1, HDMI IN × 4
  • Video & Audio OutputLINE OUT × 1, SPDIF OUT × 1，HDMI OUT × 1
  • Data Transmission InterfaceFront Panel Interfaces: USB 3.0 × 2, Type-C × 1 Internal Slot at Bottom: USB 2.0 × 1
  • Control Interface1 × RS232 serial port
  • SpeakerBuilt-in 2*18 W speaker
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency30 Hz/60 Hz
  • Refresh Rate3840 Hz
  • Grey Level16 bit
  • Key Material
  • Power Specification4.2 V/40 A (Cabinet Power Supply), 19 V/8 A (Control Power Supply)
  • Power
  • Standby Consumption≤ 0.5 W
  • Short Circuit220V, 20A
  • Max. Consumption≤ 3000 W
  • Average Consumption≤ 1000 W
  • Input Voltage110~240 VAC，50/60 Hz (110V with Low-Voltage Power Cord)
  • Working Environment
  • Working Temperature-10 to 40 °C (14 to 104 °F)
  • Working Humidity20% to 80% RH (non-condensing)
  • Storage Temperature-10 to 50 °C (14 to 122 °F)
  • Storage Humidity10% to 90% RH (non-condensing)
  • General
  • Product Dimension (W × H × D)With base: 3611.4 (W) mm × 2807.82 (H) mm × 733.5 (D) mm Without base: 3611.4 (W) mm × 2150.7 (H) mm × 47.1 (D) mm Screen size: 3600 (W) mm × 2025(H) mm
  • Mounting TypeWall Mounting / Mobile Floor Standing Bracket Mounting (Packaging Includes Wall-mount Bracket by default.)
  • Packing Method1 Wooden case package
  • Net Weight211.7 kg (466.72 lb.)
  • Package Dimensions (W × H × D)3611.4 (W) mm × 2807.82 (H) mm × 733.5 (D) mm (142.18 '' × 110.54 '' × 28.88 '')
  • Packing ListLED Module Spare Parts ×4, Multilingual Manual ×1, Bottom Panel Connecter X1, Wall Mounting Bracket X1, Cables (OPS Power cable, OPS Signal Cable, Main Power Cable, Ethernet Cable, Cabinet Cascase Power Cable), Accessories (Lamps, IC, Screws, Expansion Bolt, Tools, etc.)
  • Panel
  • IndicatorRed: The device is standby. Blue: The device is powered on.
  • ButtonOn/Off/Sleep button × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D4518CB162-2FQ
Cabinet
Pixel Configuration
SMD Triad LED (with glue)
Pixel Pitch
1.875 mm
Pixel Density
284444 dots/㎡
Cabinet Material
Aluminum alloy
Maintenance Method
Front maintenance
Display
White Balance Brightness
600 cd/m²
Color Temperature
3000-10000K adjustable
Viewing Angle
160° (H)/160° (V)
Brightness Uniformity
± 0.003Cx，Cy
Color Uniformity
≥ 97％
Screen Size
162inch（413.0cm)
Display Resolution
1920 × 1080
Contrast Ratio
3000:1
Active Screen Area
7.3 ㎡
Display Ratio
16:9
Optimal View Distance
3 m
Built-in System
Operation System
Android 12, windows 10 (optional with OPS accessories)
CPU
Android: Max. 1.5 GHz, A76 × 4 + A55 × 4 Windows: i5-11390H
Memory
Android: 16GB Windows: 16GB
Built-in Storage
Android: 256 GB Windows: 256 GB
NIC
Integrated gigabit LAN with router mode enabled
CPU Clock Speed
2.4 GHz
Wireless
Supports concurrent operation in station and access point (AP) mode, enabling Wi-Fi hotspot functionality.
Bluetooth
Integrated BLE module compliant with Bluetooth 5.1 and backward-compatible versions.
Interface
Video & Audio Input
LINE IN × 1, HDMI IN × 4
Video & Audio Output
LINE OUT × 1, SPDIF OUT × 1，HDMI OUT × 1
Data Transmission Interface
Front Panel Interfaces: USB 3.0 × 2, Type-C × 1 Internal Slot at Bottom: USB 2.0 × 1
Control Interface
1 × RS232 serial port
Speaker
Built-in 2*18 W speaker
Processing Performance
Driving Method
Constant current driving
Frame Frequency
30 Hz/60 Hz
Refresh Rate
3840 Hz
Grey Level
16 bit
Key Material
Power Specification
4.2 V/40 A (Cabinet Power Supply), 19 V/8 A (Control Power Supply)
Power
Standby Consumption
≤ 0.5 W
Short Circuit
220V, 20A
Max. Consumption
≤ 3000 W
Average Consumption
≤ 1000 W
Input Voltage
110~240 VAC，50/60 Hz (110V with Low-Voltage Power Cord)
Working Environment
Working Temperature
-10 to 40 °C (14 to 104 °F)
Working Humidity
20% to 80% RH (non-condensing)
Storage Temperature
-10 to 50 °C (14 to 122 °F)
Storage Humidity
10% to 90% RH (non-condensing)
General
Product Dimension (W × H × D)
With base: 3611.4 (W) mm × 2807.82 (H) mm × 733.5 (D) mm Without base: 3611.4 (W) mm × 2150.7 (H) mm × 47.1 (D) mm Screen size: 3600 (W) mm × 2025(H) mm
Mounting Type
Wall Mounting / Mobile Floor Standing Bracket Mounting (Packaging Includes Wall-mount Bracket by default.)
Packing Method
1 Wooden case package
Net Weight
211.7 kg (466.72 lb.)
Package Dimensions (W × H × D)
3611.4 (W) mm × 2807.82 (H) mm × 733.5 (D) mm (142.18 '' × 110.54 '' × 28.88 '')
Packing List
LED Module Spare Parts ×4, Multilingual Manual ×1, Bottom Panel Connecter X1, Wall Mounting Bracket X1, Cables (OPS Power cable, OPS Signal Cable, Main Power Cable, Ethernet Cable, Cabinet Cascase Power Cable), Accessories (Lamps, IC, Screws, Expansion Bolt, Tools, etc.)
Panel
Indicator
Red: The device is standby. Blue: The device is powered on.
Button
On/Off/Sleep button × 1
