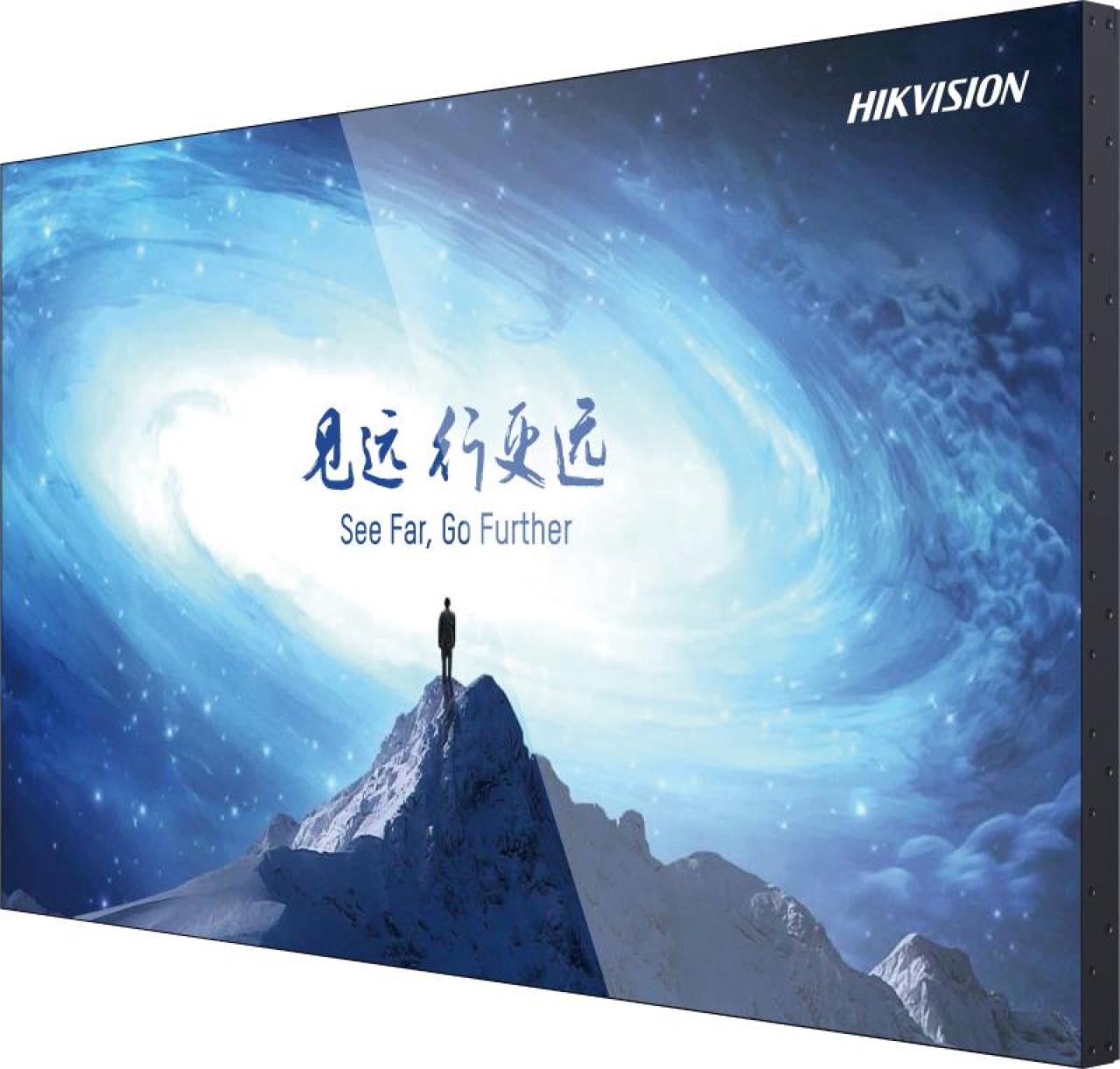

55-inch 1.8mm LCD Display Unit

  • 4K signal input, auto loop up to 30 screens with HDMI interfaces
  • Switching between three picture modes: Monitoring, Meeting, and Movie
  • Factory calibration for color and brightness uniformity
  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 1920 × 1080 resolution, 178° viewing angle
  • Extreme-narrow 1.8 mm bezel design
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements
View Less
View more

Available models:

DS-D2055HE-G
DS-D2055HE-G
DS-D2055HE-G(1 IN 1 Package)
DS-D2055HE-G(1 IN 1 Package)
DS-D2055HE-G(1 IN 1 Package)

Specification

  • Display
  • Screen Size55 inch
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.63 mm
  • Physical Seam1.8 mm
  • Bezel Width1.3 mm (top/left), 0.5 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness700 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth10Bit, 1.06 B
  • Contrast Ratio1100:1
  • Response Time8 ms
  • Color Gamut72%NTSC
  • Surface TreatmentHaze 28%, 3H
  • Interface
  • Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
  • Video & Audio OutputHDMI × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
  • Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 230 W
  • Standby Consumption≤ 0.5 W
  • General
  • Casing MaterialSGCC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1212.21 mm × 683.06 mm × 69.3 mm (47.72'' × 26.89'' × 2.73'')
  • Net Weight22.5 ± 0.5 kg (49.6 ± 1.1 lb) for single display
  • Gross Weight41.2 ± 0.5 kg (90.8 ± 1.1 lb) for carton with a single display
  • Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
  • Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
  • Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 80% RH (non-condensing)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Storage Humidity10% to 90% RH (non-condensing)

Specification

Specification
Display
  • Screen Size55 inch
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.63 mm
  • Physical Seam1.8 mm
  • Bezel Width1.3 mm (top/left), 0.5 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness700 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth10Bit, 1.06 B
  • Contrast Ratio1100:1
  • Response Time8 ms
  • Color Gamut72%NTSC
  • Surface TreatmentHaze 28%, 3H
Interface
  • Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
  • Video & Audio OutputHDMI × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 230 W
  • Standby Consumption≤ 0.5 W
General
  • Casing MaterialSGCC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1212.21 mm × 683.06 mm × 69.3 mm (47.72'' × 26.89'' × 2.73'')
  • Net Weight22.5 ± 0.5 kg (49.6 ± 1.1 lb) for single display
  • Gross Weight41.2 ± 0.5 kg (90.8 ± 1.1 lb) for carton with a single display
  • Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
  • Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 80% RH (non-condensing)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Storage Humidity10% to 90% RH (non-condensing)

Firmware

Applied to:
DS-D2055HE-G
Applied to:
DS-D2055HE-G
DS-D2055HE-G(1 IN 1 Package)
Applied to:
DS-D2055HE-G(1 IN 1 Package)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
